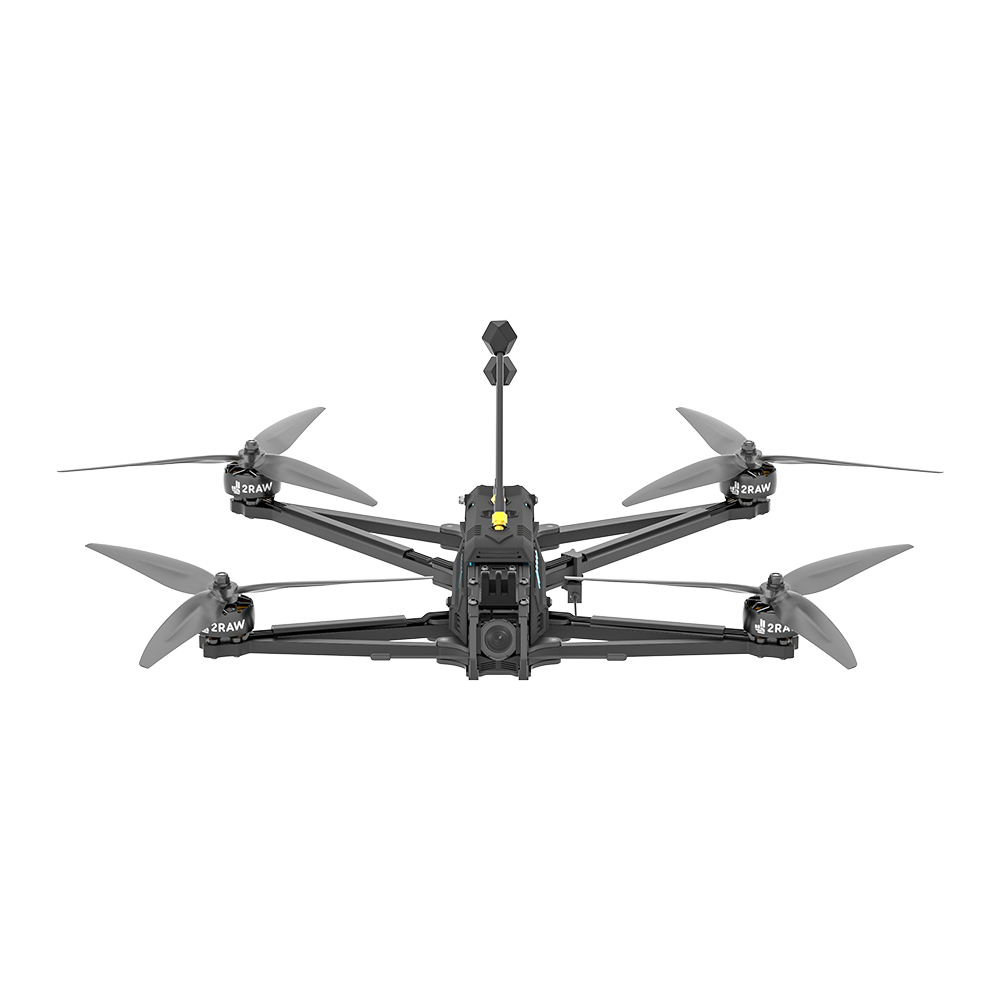

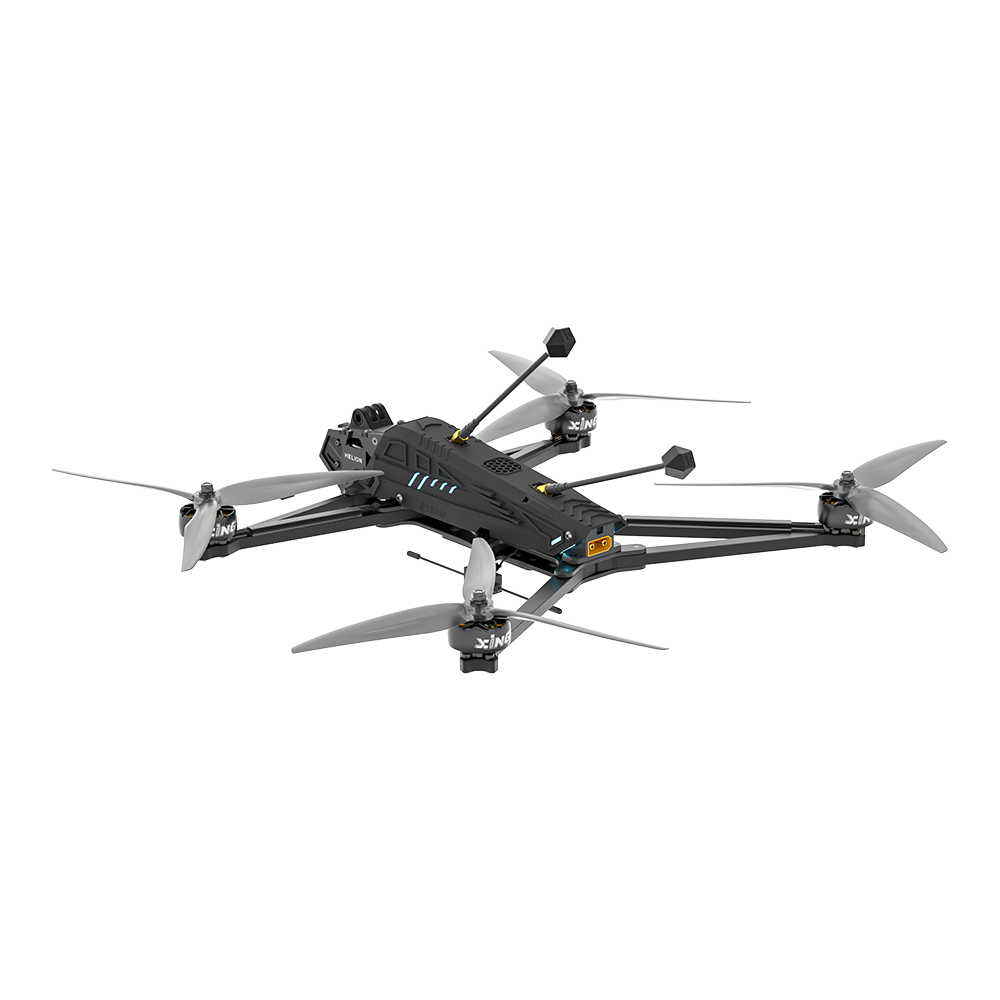

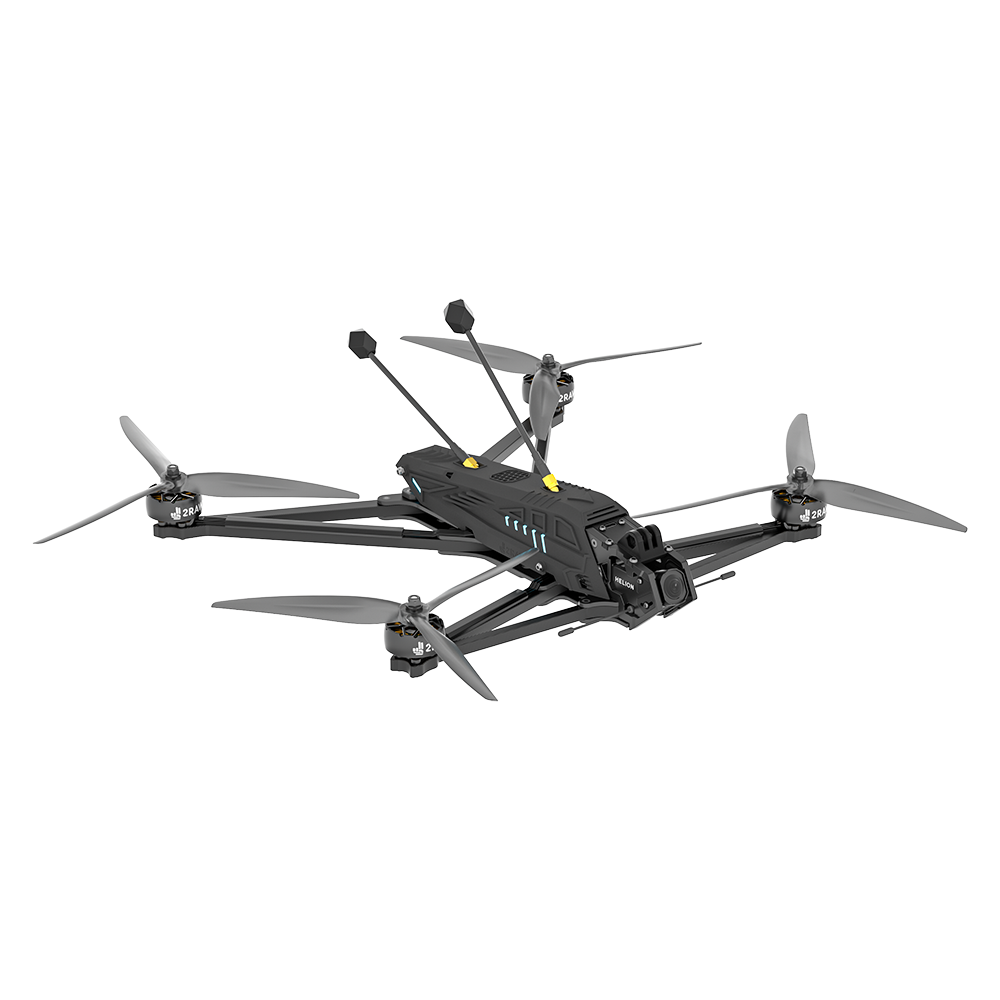

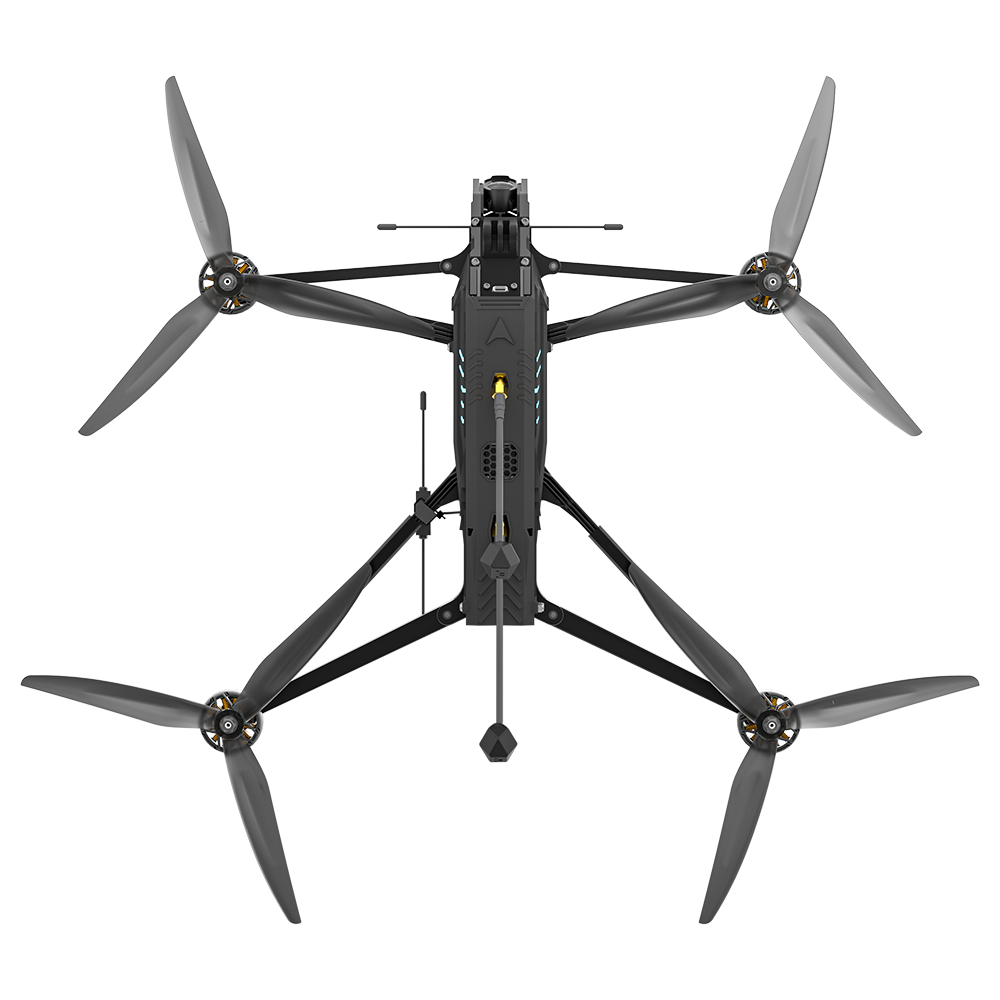

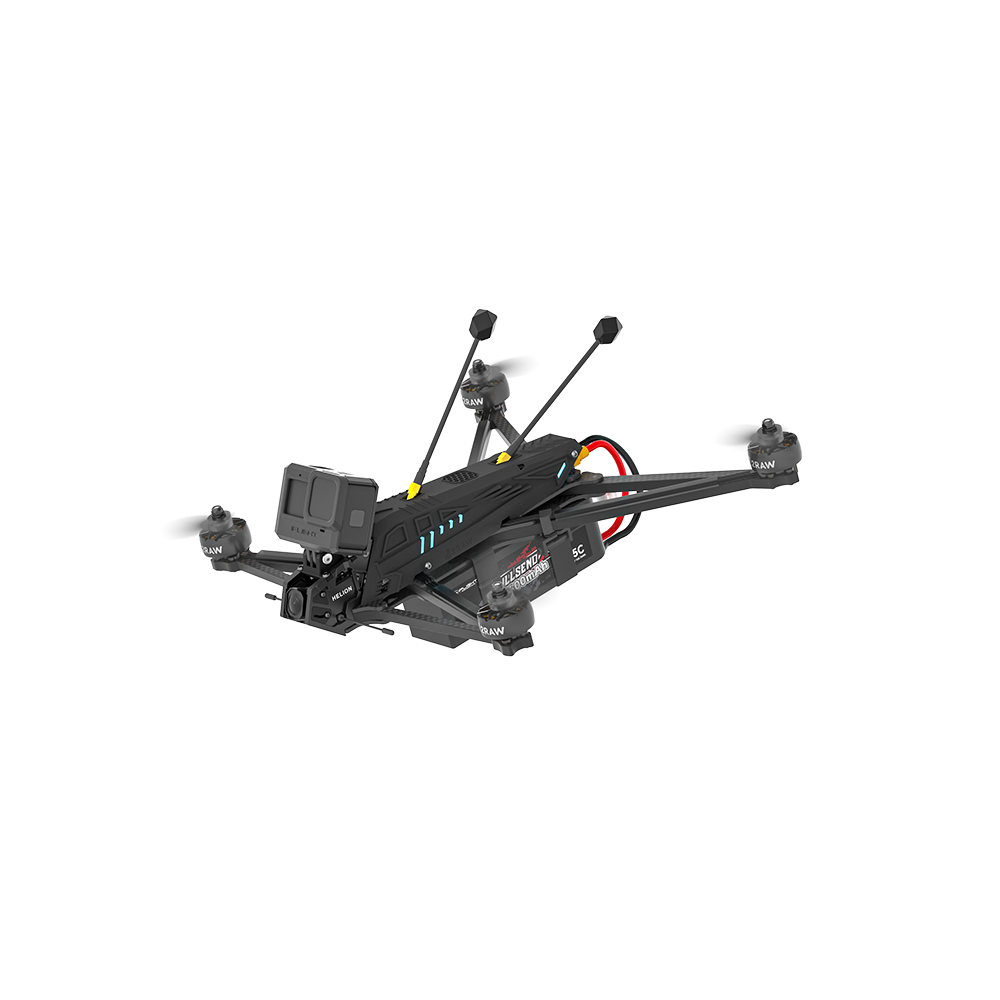

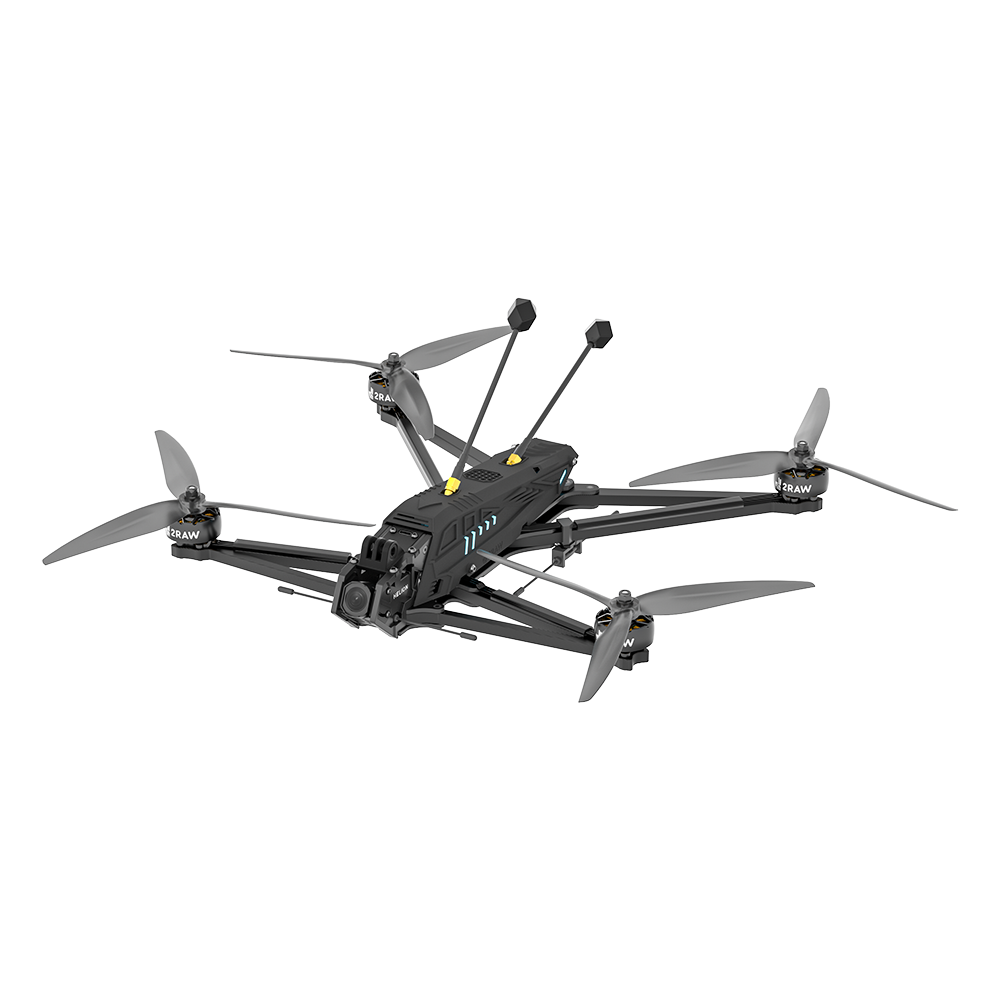

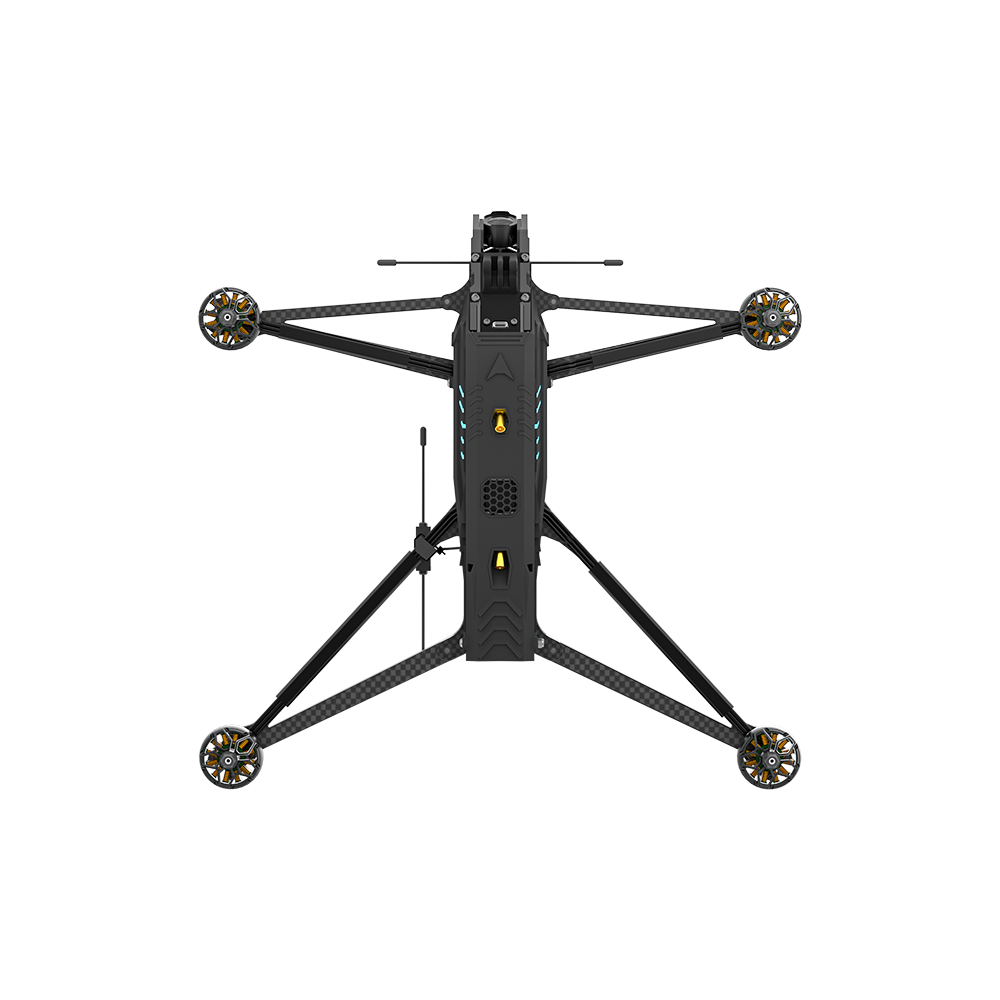

HELION - The Long Range flagship by 2RAW and iFlight
This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. With a prop size of 10 inches, Helion is not only capable of effectively carrying large (Recommended, 4500mAh Lipo and above) batteries but also ensuring great efficiency with ample power. You will have better dive recovery and more overall control than traditional long-range drones. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Helion’s distinct frame design was scientifically optimized to balance stability, weight, and rigidity.
Optimised Motors & Propeller
This latest XING motor was optimised between thrust and efficiency. Perfectly tuned to the 10 inch Gemfan propellers.
Aero-Shell
The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Users can simply open and close the shell when working on the drone. The idea was to protect the inside but give people full access when maintenance work is being performed on the drone.

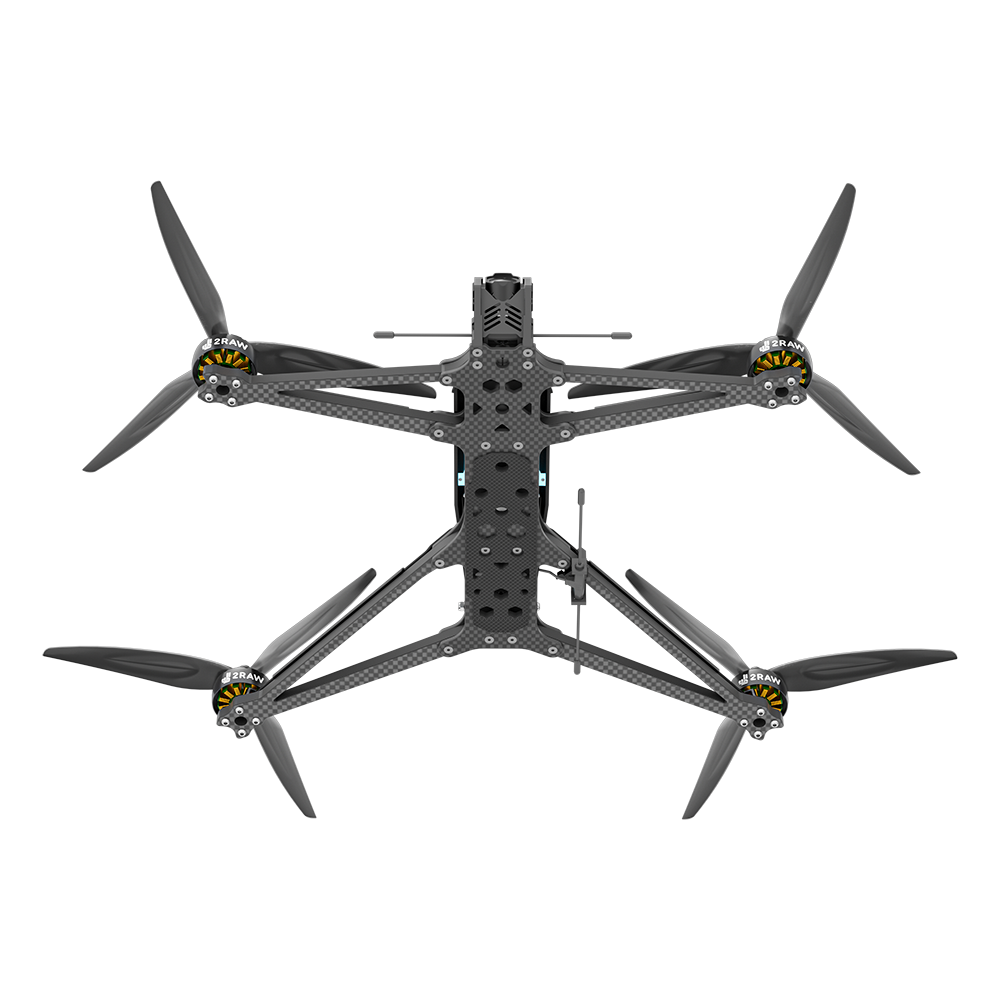

Innovative A-Frame for Maximum Performance
The frame was scientifically optimised and tested over months to find the balance between stability and weight. The A-Frame design minimises vibrations as well as torsion, one of the biggest problems with larger drones.
USB-C Power
A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras making Helion more future proof
4K Stabilized Video with 155° Ultra-Wide Angle
Equipped with the latest DJI O4 Air Unit Pro, upgraded with a 1.1/1.3-inch image sensor, it captures delicate details in low-light environments. With a 155° ultra-wide angle, it captures breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience. (Source DJI)
GPS Pre-Installed for More Safety at A Distance
GPS functionality to find your way back on those ultra long range missions. Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.
Product Name: Helion10 O4 Pro 6S HD
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Air Unit Pro
Geometry: A-Frame
Frame: 418mm wheelbase
Motor: Helion 10 3110 900KV motors
Prop: GEMFAN 1050 propellers
Weight: 950±20g
Takeoff Weight: Approx.1846±5g (With 6S 8000mAh)
Dimensions (L×W×H)：324x264x63mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 26mins with 6S Lipo 5600mAh battery / 30mins with 6S 8000mAh Liion battery
Max Cruising Time: Approx. 23mins with 6S Lipo 5600mAh battery / 26mins with 6S 8000mAh Liion battery
Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
1 x Helion 10 O4 Pro 6S HD
2 x Battery pad
2 x GEMFAN 1050 propellers(Pairs)
2 x Battery strap
1 x Screw bag
1 x Amass XT90 to XT60 H Adapter Cable
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
