Meet the latest high-performance motor from Xing-E—engineered to shatter limits and redefine reliability for large drone builds. Leveraging cutting-edge technological advancements, this motor delivers consistent, dependable performance, making it a standout choice for enthusiasts and professionals focused on bigger X-Class quadcopters.

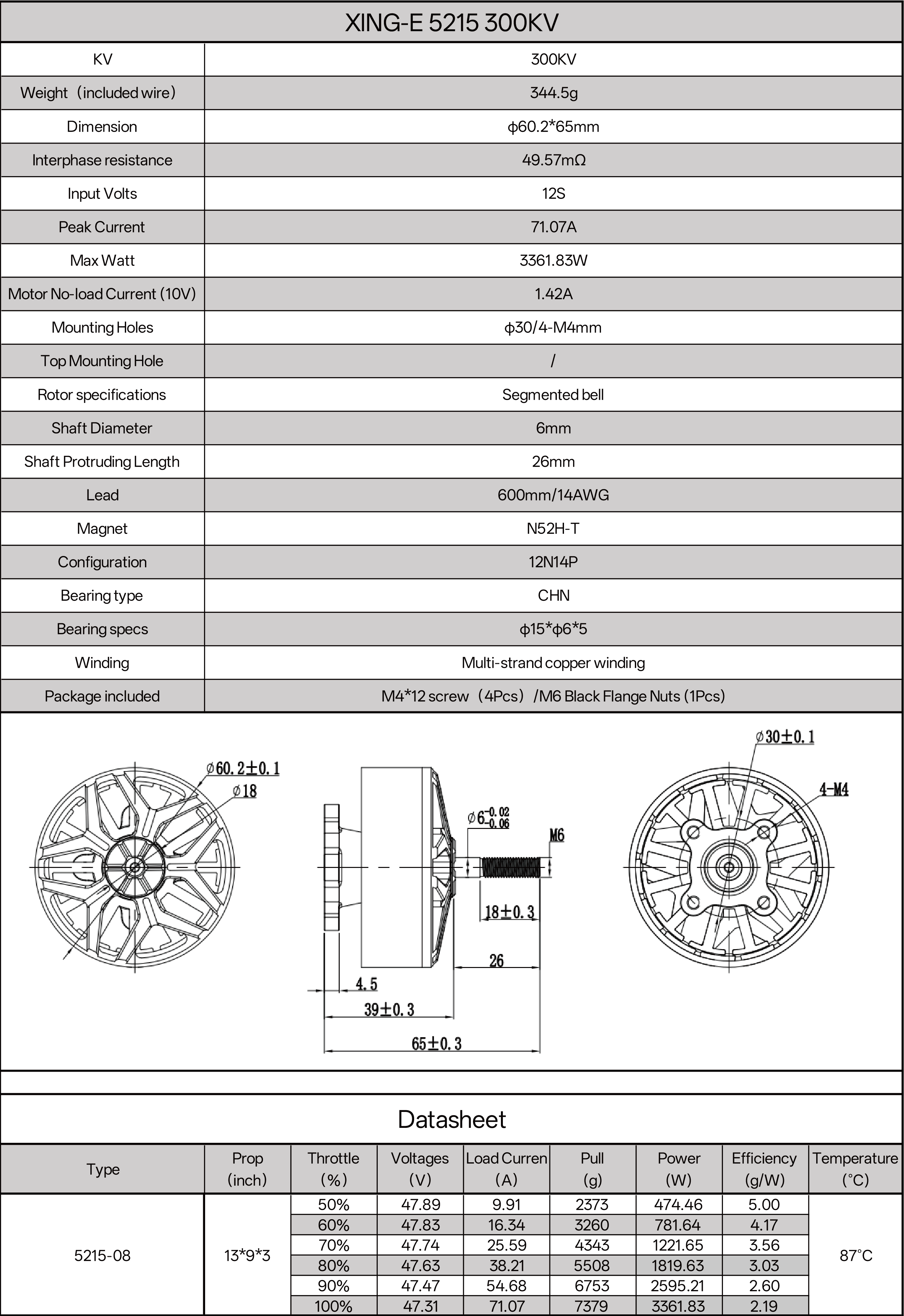

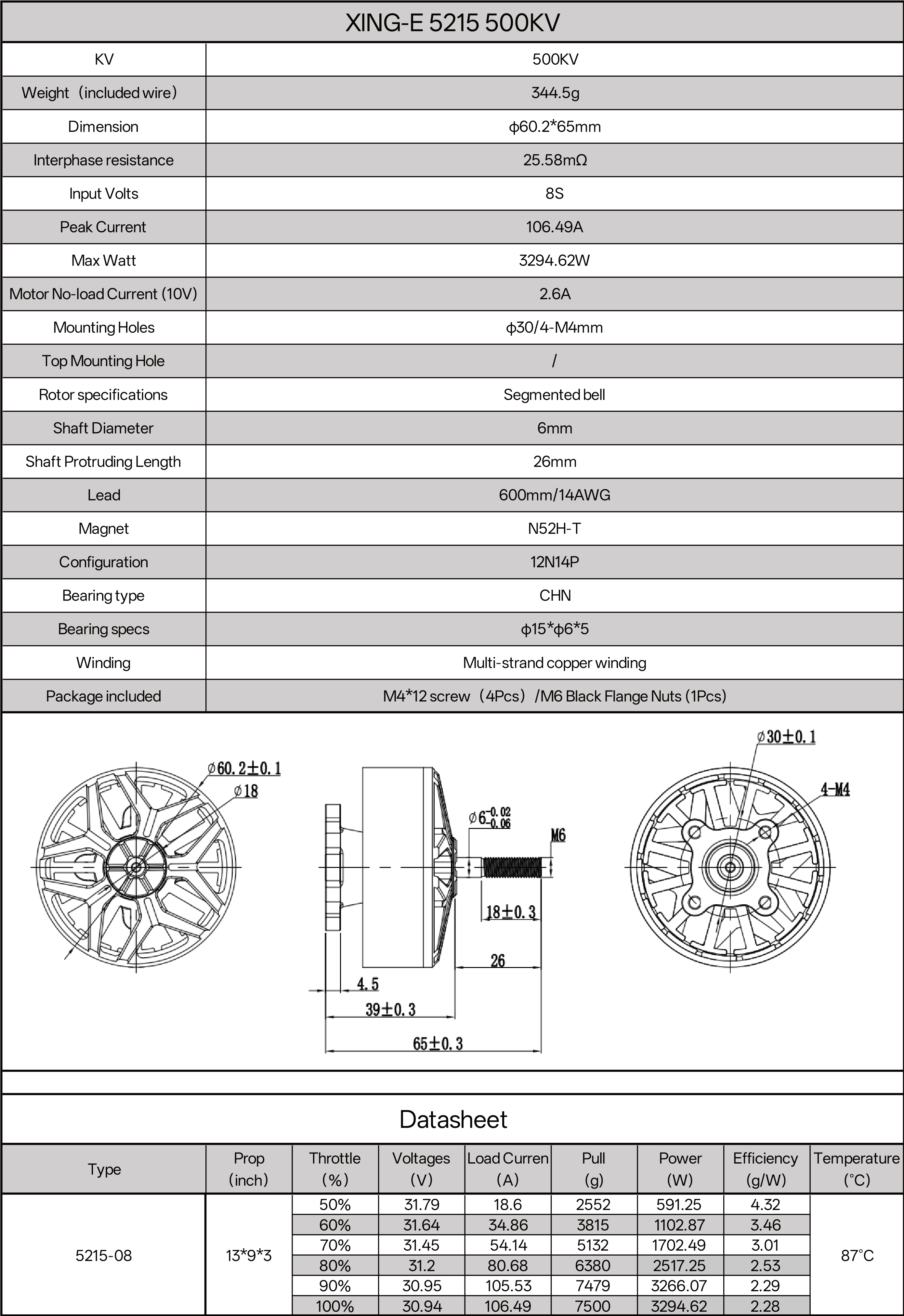

Model: XING-E 5215 Motor
KV: 300KV / 500KV
Weight(included wire): 344.5g
Dimension: φ60.2*65mm
Interphase Resistance: 49.57mΩ / 25.58mΩ
Input Volts: 12S / 8S
Peak Current: 71.07A / 106.49A
Max Watt: 3361.83W/ 3294.62W
Shaft Diameter: 6mm
Shaft Protruding Length: 26mm
Lead: 600mm/14AWG
Magnet: N52H-T
Configuration: 12N14P
Mounting holes: 30*30 φ4mm
Rotor Specifications: Segmented Bell
Bearing Specification: φ15*φ6*5
Winding: Multi-Strand copper winding
1 x XING-E 5215 Motor
4 x M2*12mm screws
1 x M6 Flange Nut
