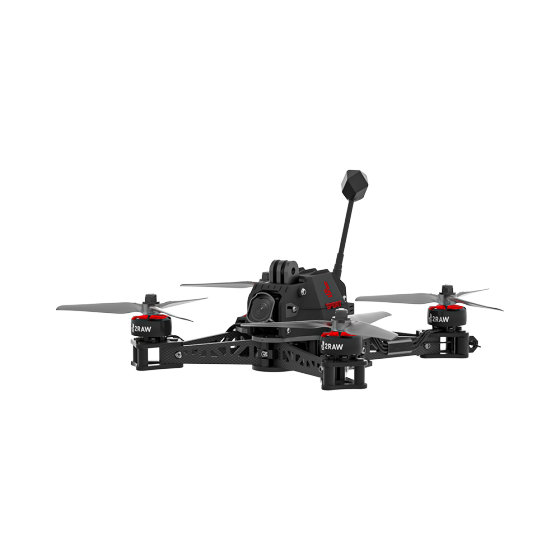

The Afterburner Sport is the flagship 5-inch performance drone from 2RAW, designed to push the boundaries of speed, agility, and durability. Building on the original Afterburner concept, the Sport model introduces key enhancements that elevate its performance to new heights, making it the ideal choice for those seeking the ultimate high-speed, high-performance drone – perfect for chase and race applications.
Aeroshell Design
Optimized to protect internal components while minimizing drag for maximum aerodynamic efficiency.
Top-Mounted Action Camera
Supports a 10-60° field of view with no propeller visibility, ensuring a pristine 16:9 aspect ratio for clean, uninterrupted footage during high speed chase sequences.
Bottom-Mounted Battery
Strategically placed for optimal center of gravity and balanced flight dynamics, ensuring exceptional stability and control.
Compact 5-inch Footprint: Designed for unmatched agility and responsiveness, allowing for precision maneuvers in high-speed environments.
2RAW Performance Tune
Expertly calibrated to deliver consistent, high-quality footage in all conditions, whether in high-speed pursuit or technical flight.
CNC Machined Parts
Crafted for maximum durability and ease of repair, providing quick access to internal components while enhancing structural integrity.
High-KV Race Motors
Engineered for ultra-fast top speeds, ensuring blistering acceleration and race-ready performance.
Product Name: Afterburner Sport 6S O4 HD
Geometry: True-X
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Air Unit Pro
Frame: 210 mm wheelbase
Motor: XING2 2207 1750KV motors
Prop: GEMFAN 5.1X3.6X3 propellers
Weight: 490±5g
Takeoff Weight: Approx.714±5g (With 6S 1480mAh)
Dimensions (L×W×H): 148*148*77mm
Max Speed: 190km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 12mins (No Load with 6S 1480mAh battery)
Operating Temperature Range: -20° to 40° C
Antennas: Single Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
1 x Afterburner Sport 6S O4 HD BNF
1 x Screw Bag
1 x Battery Strap
1 x Battery pads
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1) Any military combat purpose or military combat related use;
(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
For more specific content, please check: https://shop.iflight.com/Export-Policy-info
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
(Or another Radio to match the RX in the Drone)
The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.
