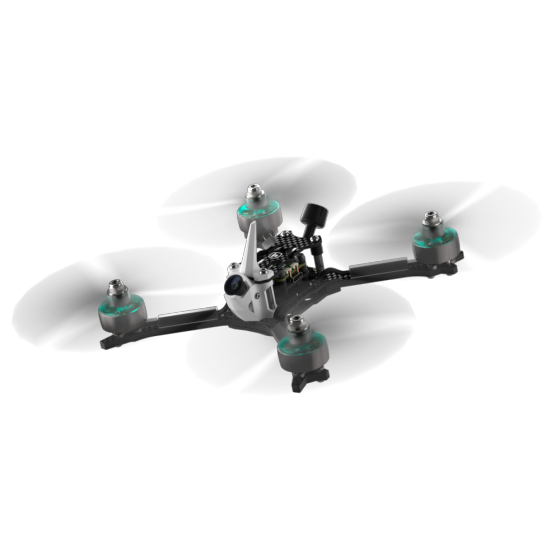

Mach R5 Ultra 6S

Seize the decisive moment and take the lead like a "steed" — Mach R5 Ultra boasts top-tier performance on the field. It cuts through the air as fast as lightning, forging extraordinary performance aesthetics and fully showcasing the sharpness of peak excellence.

Compact H Geometry

The H-frame design improves space utilization by 20%, reduces wiring clutter, and cleaner build.

Lower to 285g, Lightweight Frame, Lightning speed

Reduced cornering inertia, take the lead at every turn.

Peak Performance, Lead the Race

Flying at speeds of up to 245 km/h, take the lead from the moment of takeoff, and lock in the victory.

Upgraded T700 Carbon Plates, Iougher and Crash-Resistant

During a heavy collision or crash landing, the high-rigidity carbon plate absorbs impact energy, ensuring the frame remains stable and undeformed.

Space-Saving,signal-stable

Built-in ELRs 24GHz receiver and antenna greatly save build space, while supporting external antennas.

The optimal signal reception setup can be flexibly switched via solder pad bridging. Flight commands have zero latency, effortless stick control

Built-in Polymer Capacitor

5-inch drones can fly without an external capacitor. This simplifies installation and reduces the overall weight.

Powerful Core Performance, Sprint to Victory

Newly upgraded 2207 2100KV motors paired with Borg 60Rs Esc

Supports up to 8s wide input voltage, with 65A peak redundancy, maximizing power reserves.

Onboard Anti-Spark Filter & TVS Transient Voltage Suppressor

Keeps the circuitry stable when it counts, delivering instant power bursts to help you claim victory at critical moments.

Product Name: Mach R5 Ultra 6S Analog

FC: Borg 5S RX FC

ESC: Borg 60RS ESC

Video Transmission: BLITZ RACE 5.8G 25mW VTX / BLITZ Mini Force 5.8G 600mW VTX

Frame: 190mm wheelbase

Motor: R5 2207 2100KV motors

Prop: Nazgul R5 V2 propellers

Weight: 285±5g

Takeoff Weight: Approx. 527±5g (With 6S 1480mAh battery)

Dimensions (L×W×H): 169*161*34mm

Max Speed: 245km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 12.5 min (With 6S 1480mAh no load)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: N/A

Product Name: BLITZ RACE 5.8G 25mW VTX

Output Power: PIT/25mW

Input Volts: VBAT (7-26V)

Transmission fre: 10CH（R）

Antenna Interface: IPEX

Mounting Hole: 20×20/Φ3mm 25×25/Φ2mm

Weight: 4g (W/O antenna)

Dimensions: 36×36mm

Product Name: BLITZ Mini Force VTX 600mW

Output Power: PIT/25mW/200mW/400mW/600mW

Input Volts: 5V

Working Current: ≤pit @80mA，≤25mw@280mA，≤100mw@405mA，≤400mw@485mA，≤600mw@575mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 20×20/Φ3mm/25×25/Φ2mm

Weight: 4g (W/O antenna)

Dimensions: 29×29mm

1 x Mach R5 6S Ultra Analog BNF

1 x Battery strap

2 x R5 Prop(Pairs)

1 x Battery pad
