Anti Spark Filter

Availability: In Stock
$13.29 $13.99 SAVE $0

Available Options

Tags:


Description

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Compatibility

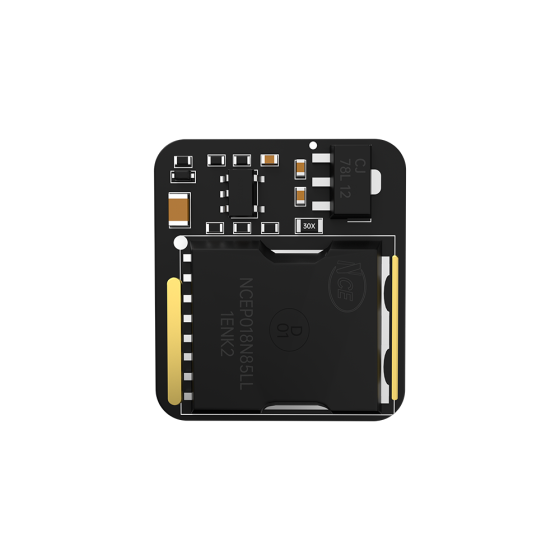

Version 1

Size: 18*16mm

Compatible:

Nazgul XL5 V3 Frame Kit

Nazgul DC5

BOB57 Frame Kit


Version 2

Size: 25*18mm

Compatible:

Nazgul Evoque F4 Frame kit

Nazgul Evoque F5 V2 Frame Kit

Nazgul Evoque F6 V2 Frame Kit

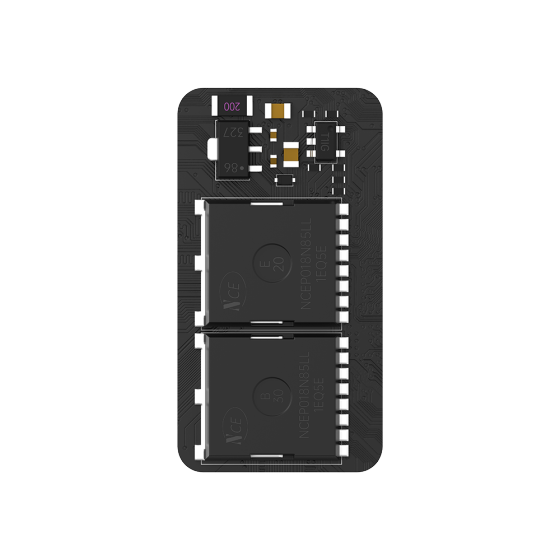

Version 3

Size: 30*16mm

Compatible: 7/9/10 Inch Frame Kit

Chimera7 Pro V2 / Chimera7 ECO Frame Kit

Chimera9 ECO Frame kit

XL10 V6 /CX10 ECO Frame kit

Specifications

Size: 16*18mm / 25*18 mm

Input voltage: 3-6S (9-26V)

Continuous current: 30A

Peak current: 35A for 10s

Weight: 2.4g/ 2.6g




Size: 30*16mm

Input voltage: 4-6S (14-26V)

Output voltage: 4-6S (14-26V)

Continuous current: 150A

Peak current: 160A

Size: 30*16mm

Weight: 4.5g

Packing List

1 x Anti Spark Filter

1 x Cable Set

1 x XT60E-M Plug (18*16mm/25*18mm optional)

1 x XT60EW-M Plug(30*16mm optional)
