Defender 16 Motor

AVAILABILITY: In Stock
$12.99

Available Options


Description

The new Defender 16 Motor is designed for ultralight build, that micro drone change FPV in nowadays. Sub 250grams Defender 16 builds like these just got much nicer since we got the newest generation whoop style all in one (AIO) with iflight new Defender 16 frame you can build the ultralight micro drone.

Changelog

March 5, 2024: Defender 16 motor upgraded from 1002 14000KV motor to 1103 14000KV motor.

Note: Different motors use different dumps, please do not mix them.

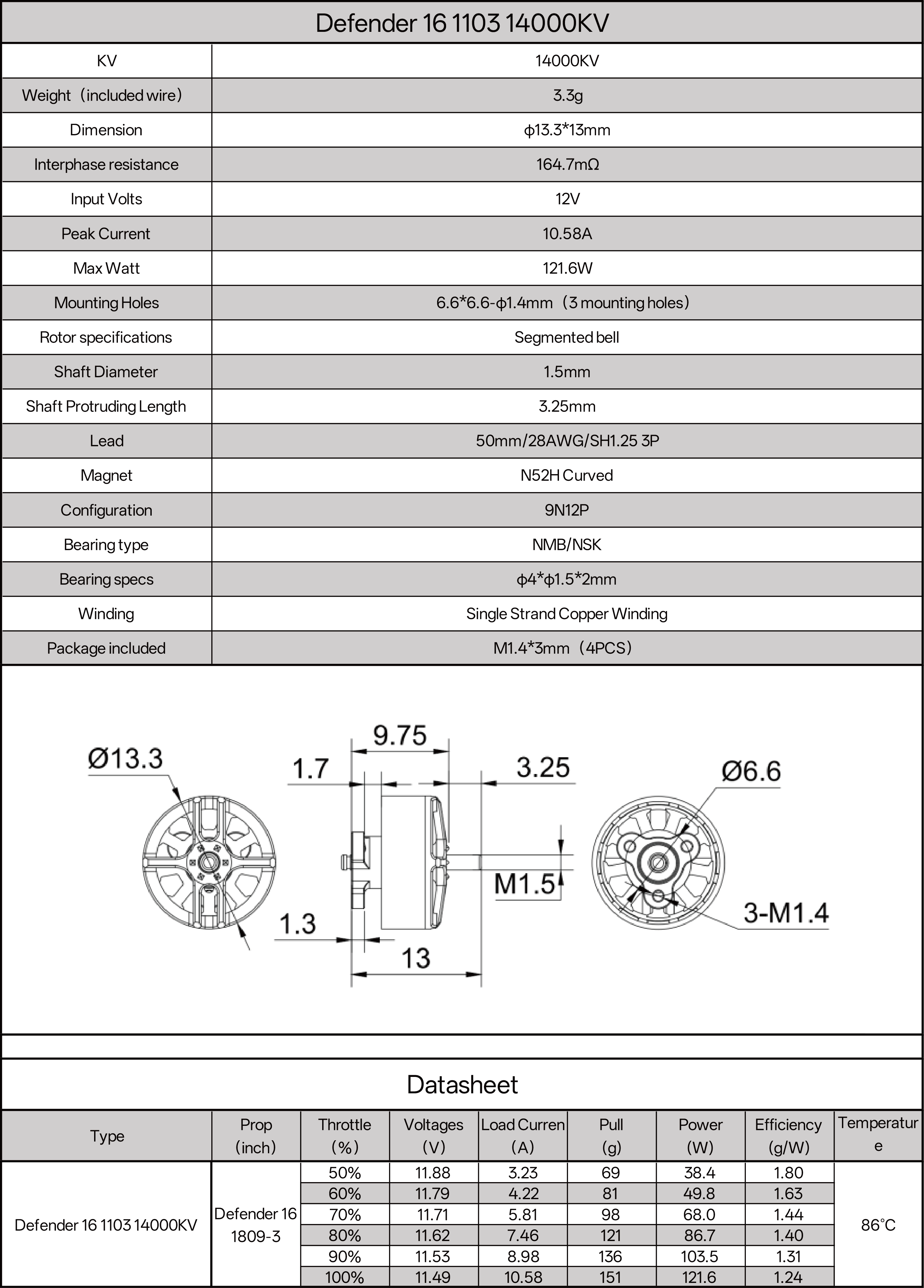

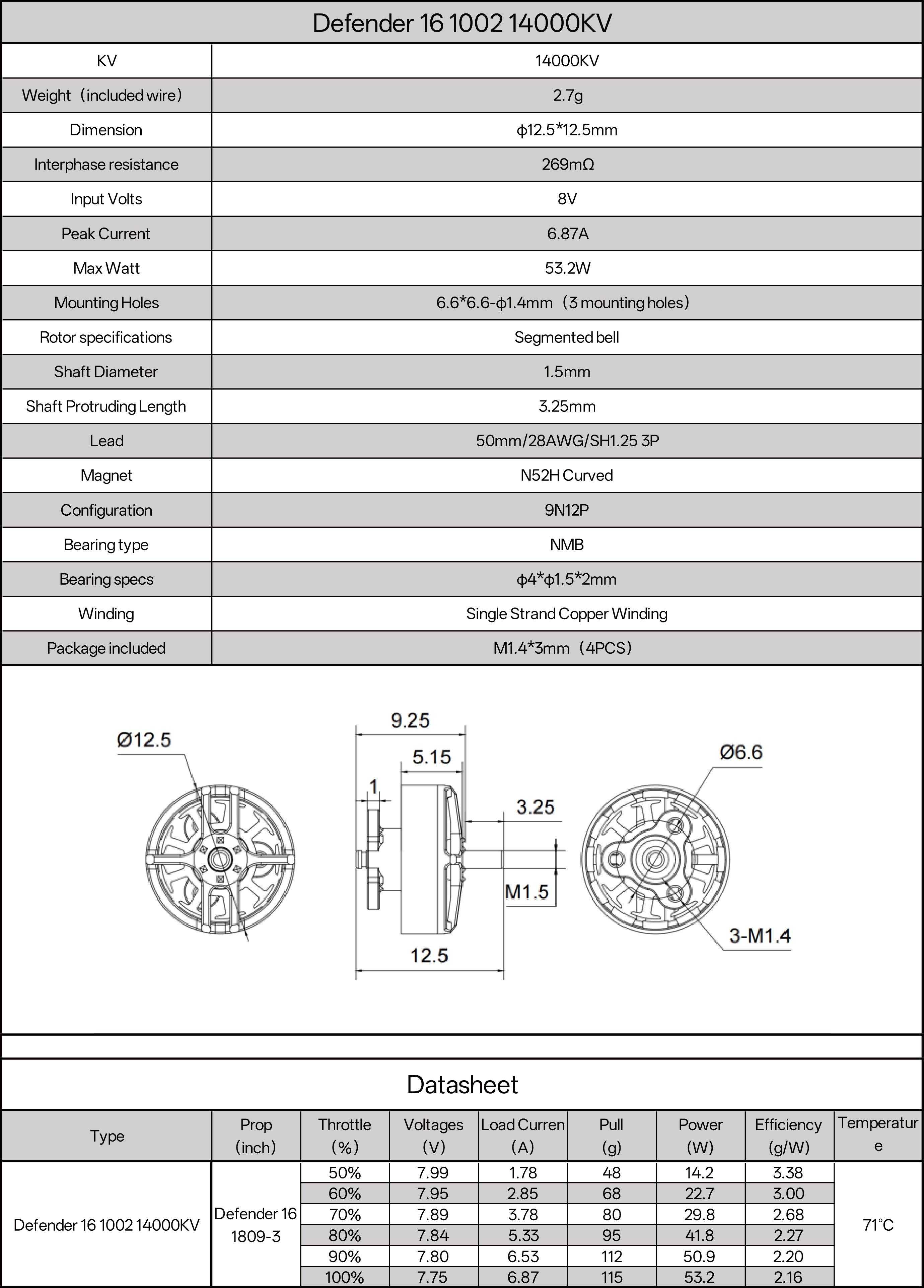

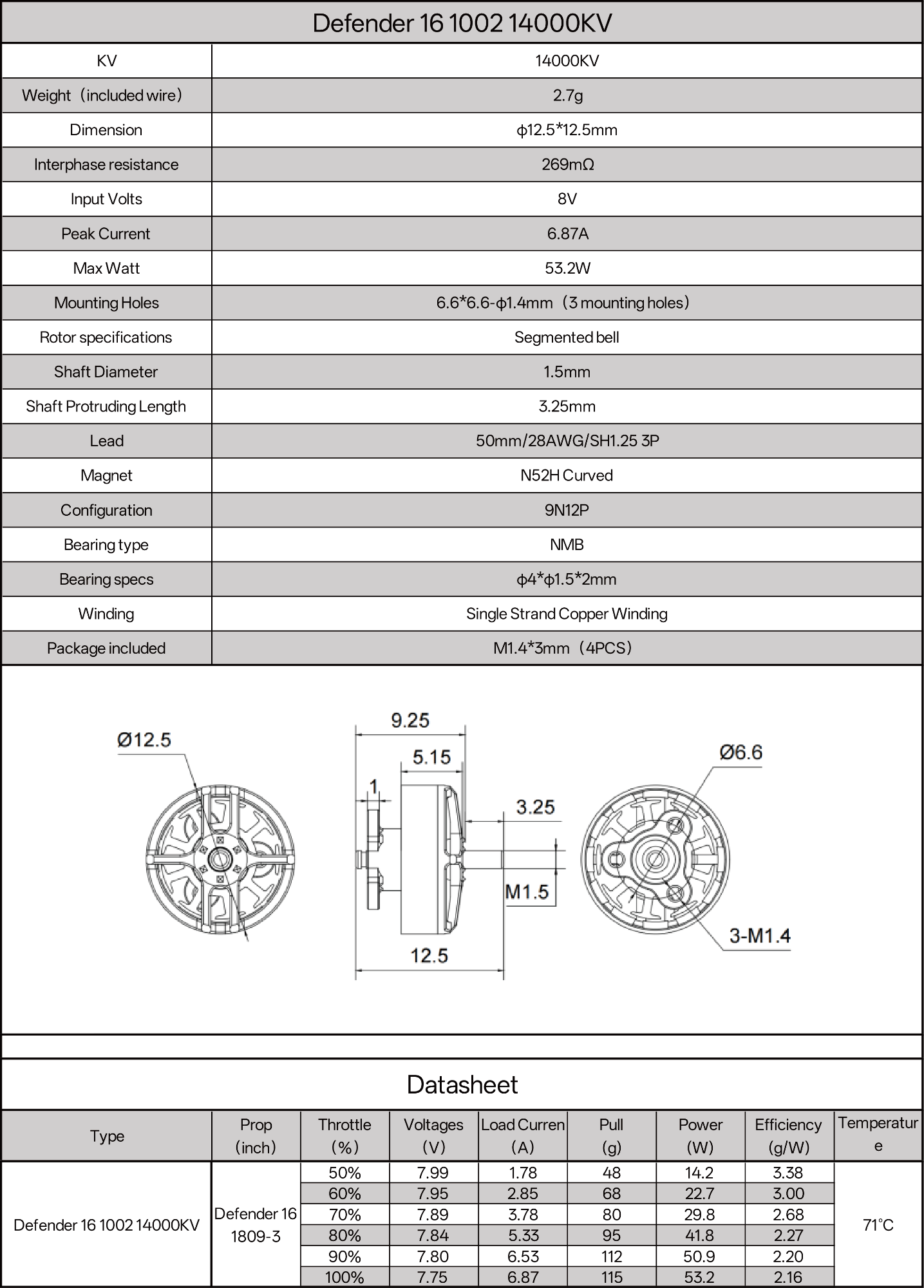

Specifications

Model: Defender 16 1002 Motor/ 1103 Motor

KV: 14000V

Weight(included wire): 2.7g / 3.3g

Dimension: 12.5*11.5mm / 13.3*13mm

Interphase Resistance:  269mΩ/164.7mΩ

Input Volts: 8V/12V

Peak Current: 6.87A/10.58A

Max Watt: 53.2W/121.6W

Mounting Holes: 6.6mm/φ1.4mm (3 mounting holes)

Rotor Specifications:  Segmented bell

Shaft Diameter: 1.5mm

Shaft Protruding Length: 3mm

Lead: 50mm/28AWG/SH1.25 3P

Magnet: N52H Curved

Configuration: 9N12P

Bearing Type: NMB

Bearing Specification: φ4*1.5*2.mm

Winding: Single Strand copper winding

Packing List

1 x Defender 16 1002 Motor

4 x M1.4x3 mm mounting screws
