XING2 2205 4S 6S FPV Motor

The smooth, reliable, and powerful XING motors were upgraded and we achieved an even higher standard in our manufacturing as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to its translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

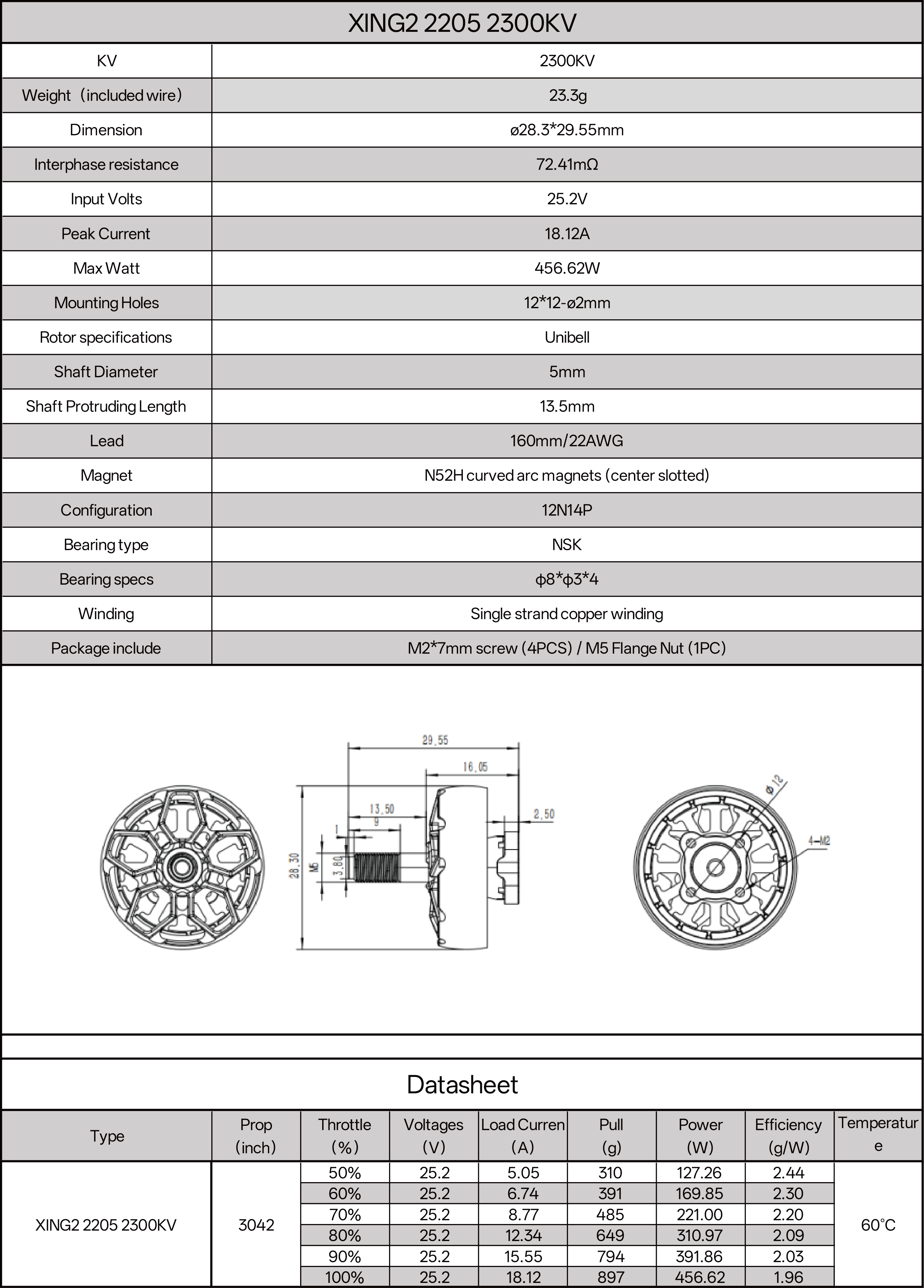

KV: 2300KV / 3200KV

Weight(included wire): 23.3g / 25.2g

Dimension: φ28.3*29.55mm(2300KV) / 28.3*29.5(3200KV)

Interphase Resistance: 72.41mΩ / 54mΩ

Input Volts: 25.2/2-4S

Peak Current: 18.12A / 33.06A

Max Watt: 456.62W / 548.1W

Mounting Holes: 12*12 φ2mm

Rotor Specifications: Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 13.5mm

Lead: 160mm/22AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK/NMB

Bearing Specification: φ8*φ3*4/φ9*φ4*4

Winding: Single Strand copper winding

1 x XING2 2205 Brushless Motor

4 x M3x7 screws

1 x M5 Flange Nut
