Albatross V2.1 5.8GHz 130mm Antenna

Introducing the new and improved Albatross V2.1 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2.1 antenna.

Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

July 17, 2025: The product is upgraded to version 2.1, using LDS technology, and has more stable performance than V2.

A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.

Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.

Achieves higher consistency in antenna gain, thereby improving device performance and stability.

Model: Albatross 5.8GHz RHCP SMA FPV Antenna

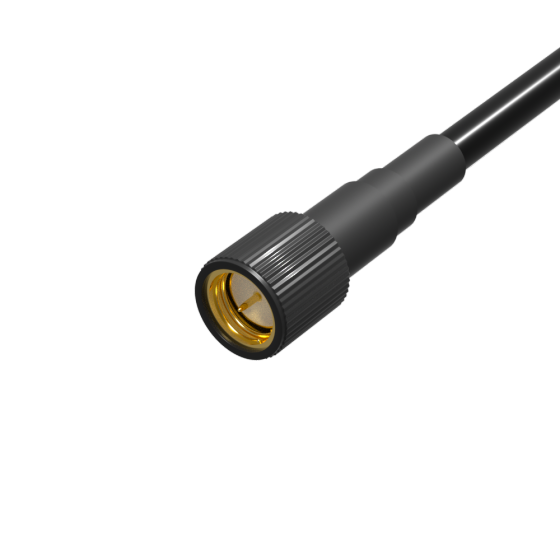

Interface: RHCP SMA

Frequency range: 5.3GHz-6GHz

Max Gain: 2.85dBi (5695MHz)

MIN Gain: 2.9dBi (5362MHz)

AVG Gain: 2.9dBi

MAX VSWR: 1.76（6000MHz）

MIN VSWR: 1.20（5300MHz）

AVG VSWR: 1.48

MAX radiation efficiency: 68.77%（5700MHz）

MIN  radiation efficiency: 65.17%（5300MHz）

AVG radiation efficiency: 66.51%

Polarization: RHCP

Cross polarization suppression: -25dB

Axial Ratio：≤3

Cable: RG141

Weight: 10.5±0.5g

Size: Total length: 130mm (±5mm)

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna

Interface: LHCP

Frequency range: 5.3GHz-6GHz

Max Gain: 3.05dBi (5621MHz)

MIN Gain: 2.88dBi (5436MHz)

AVG Gain: 2.92dBi

MAX VSWR: 1.74（5700MHz）

MIN VSWR: 1.19（5300MHz）

AVG VSWR: 1.5

MAX radiation efficiency: 68.89%（5500MHz）

MIN  radiation efficiency: 64.51%（5300MHz）

AVG radiation efficiency: 66.82%

Polarization: LHCP

Cross polarization suppression: -25dB

Axial Ratio：≤3

Cable: RG141

Weight: 10.5±0.5g

Size: Total length: 130mm(±2mm)

2 x Albatross V2.1 5.8GHz 100mm Antenna

Note: FPV frame not included!
