Defender 20 Lite X 2S HD - RTF

Defender 20 Lite X —— Pack Light, Fly Anytime

Powered by the Defender series' proven power system and refined flight tuning, the Defender 20 Lite X delivers precise control and agile handling. Fly freely outdoors or navigate tight indoor spaces with ease while capturing immersive FPV footage.

Under 110g, Fly with Ease

The Defender 20 Lite X features a lightweight design with a takeoff weight under 110g. Compliant with flight safety regulations, it makes everyday flying effortless.

Lightweight, Full FPV Performance

Powered by the Defender series' proven power system and refined flight tuning, the Defender 20 Lite X delivers precise control and agile handling. Fly freely outdoors or navigate tight indoor spaces with ease while capturing immersive FPV footage.

4K Ultra-Wide FOV with DJI O4 Wide Air Unit

Supporting 4K/60fps recording with a 159° ultra-wide FOV, the Defender 20 Lite X captures immersive FPV footage without an external action camera.

Prop Guards / Open Props Switchable, Set Your Own Flying Style

The quick-release prop guards can be easily detached with four screws in 30 seconds, allowing to switch between prop guards and an open-prop form with ease. Fly your own style.

Podded Camera Structure, Agile Flight, Stable Footage

Inherited from the series' proven vibration-damping camera pod design, the Defender 20 Lite X minimizes jello effects caused by vibrations. From low-altitude flights and fast maneuvers to dynamic close-up shots, it delivers smooth and stable 4K footage.

Flexible Battery Options

The Defender 20 Lite X supports flexible battery options and features two battery mounting methods for enhanced compatibility and convenience. Carry extra batteries, fly longer. Secure quickly, swap easily.

Product Name: Defender 20 Lite O4 2S HD

Flight Electronics: Borg F7 AIO(RX)

Video Transmission: DJI O4 Wide Air Unit

Frame wheelbase: 87mm

Motor: Defender 16 1103 14000KV motors

Prop: Defender 20 Lite 2020*3 props

Weight: 75±3g

Takeoff Weight: Approx. 110±3g (With 520mAh Battery)

Dimensions (L×W×H): 137*125*47mm

Max Speed: 75km/h (Manual Mode)

Maximum Takeoff Altitude: 2000 m

Max Hover Time: Approx. 6 min(with 2S 520mAh battery)

Operating Temperature Range: -10° to 40° C

Antennas: Single Antenna

GNSS: N/A

DJI O4 Wide Air Unit

Image Sensor: 1/2-inch CMOS Sensor

Lens: FOV: 159°

Format Equivalent: 16 mm

Aperture: f/2.8

Focus: 1 m to ∞

ISO Range: 100-6400 (Auto)/100-12800 (Manual)

Video Resolution

4K (4:3): 3840×2880@30/50/60fps

4K (16:9): 3840×2160@30/50/60fps

1080p (4:3): 1440×1080@30/50/60/100/120fps

1080p (16:9): 1920×1080@30/50/60/100/120fps

Video Format: MP4

Max Video Bitrate: 100 Mbps

Color Mode: Normal

Camera FOV: Standard; Wide-Angle

EIS: RockSteady 3.0+; Stabilization function off (supports Gyroflow)

Product Name: Commando 8 ELRS V2 Radio

Weight: 310g (±10g)

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts:  0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C  to  40°C（32°F to 104°F）

Charging Temperature Range: 5°C to  40°C（41°F to 104°F）

Product Name: DJI Goggles N3

Weight: Approx. 536 g (battery included)

Dimensions (L×W×H): With antennas folded: 193×163×103 mm (L×W×H)

With antennas unfolded: 206×163×132 mm (L×W×H)

Screen Size (single screen): 3.5 inches

Resolution (single screen): 1920×1080

Refresh Rate: Up to 60 Hz

Interpupillary Distance Range: No interpupillary distance adjustment required, ready to use immediately.

Diopter Adjustment Range: Diopter adjustment not supported, can be used with personal glasses.

FOV (single screen): 54°

Operating Frequency: 2.400-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz: < 30 dBm (FCC) < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE) < 21 dBm (FCC)

5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Power Input: Built-in battery

Supported SD Cards: microSD (up to 512 GB)

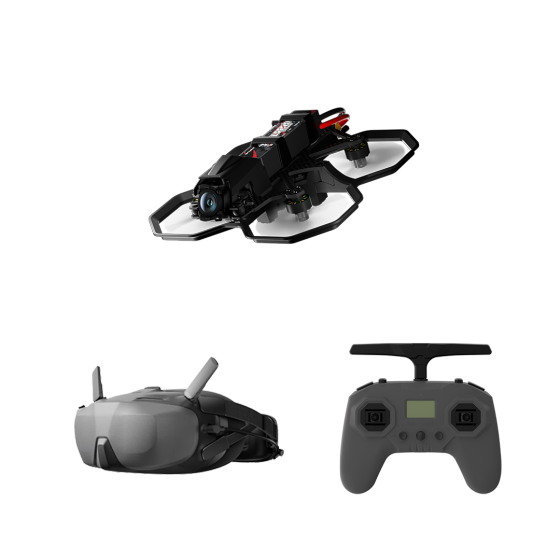

1 x Defender 20 Lite O4 HD BNF

1 x DJI Goggles N3

1 x Commando 8 V2

1 x Filter Set

1 x Propeller Removal Tool

1 x Defender Carrying Case

1. iFlight product is for fun purposes only and does not support autonomous flight.

2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

For more specific content, please check: https://shop.iflight.com/Export-Policy-info
