Front-Mounted Air Unit
Reduced Interference.
Nazgul Evoque F7 O4 6S HD
$669.99
Price drop reminder
GPS Option
Receiver option
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
$669.99
Standard Ver. || No additional receiver, I use DJI FPV Remote Controller 2/3
In The Box
Nazgul Evoque F7
x 1
HQ 7.5X3X3 Propeller(Pairs)
x 2
Battery Strap
x 2
Antennas
x 2
Learn More
Refined Quality
New Injection-Molded Components.
All New Borg Stack
Enhanced Safety and Stability.
Dualband Dual-Antenna Receiver
Enhanced Stability for Long-Range Flight.
Dynamic Style
LED Lighting Effects.
Fin-shaped Cooling Channel
Powerful Heat Dissipation.
Description

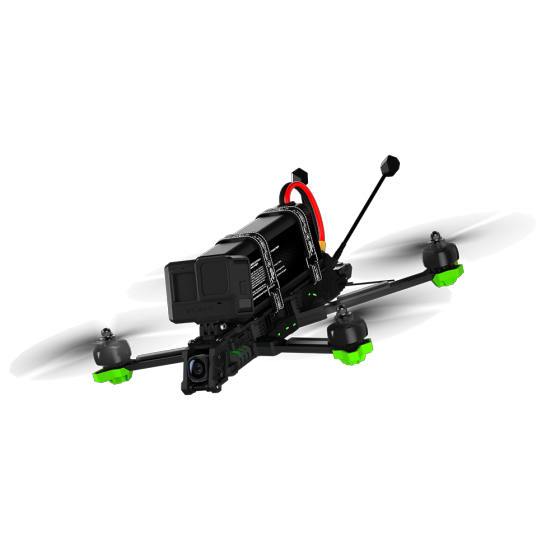

Introducing the new 7-inch Nazgul Evoque—packed with 6 key upgrades for immersive long-range flights. It inherits the series' DC geometry, delivering cinematic shots free of prop obstruction. Equipped with the DJI O4 Pro Air Unit, it supports seamless video capture and output, letting you capture unobstructed mountain and sea views effortlessly. Enjoy extended flight time to fly and create without limits.
Highlights
Dualband Dual-Antenna, Enhanced Long-Range Stability
With an optional ELRS dualband dual-antenna receiver, supporting simultaneous 2.4GHz + 900MHz communication. Paired with a dual-antenna, fan-shaped distributed layout for omnidirectional signal reception, it ensures stable, controlled long-range flights even in complex environments.
Upgraded Borg Stack
The upgraded Borg Stack features a built-in anti-spark filter, dual independent BEC power supply (12V 2A with VTX switch + 5V 25A) for stable power, and a built-in polymer capacitor to extend device lifespan.
Fin-Shaped Cooling Channel
The fin-shaped cooling channel design enhances heat dissipation and ensures stable long-range flight performance. It comes with Dynamic LED effects full of recognition and technological sense.
Flagship Recording Capability Equipped with DJI O4 Air Unit Pro
Upgraded with a 1/1.3-inch image sensor, delivers remarkable performance in low-light and night environments. Capture low-altitude, high-speed flight footage in 4K resolution with an ultra-wide 155° FOV. Experience the immersive visual impact of flight like never before, with crisp 4K output that effortlessly meets your creative needs.
Specifications
Product Name: Nazgul Evoque F7 O4 6S HD
Geometry: Deadcat(DC)
FC: Borg Mini F7 Flight Controller
ESC: Borg 60R ESC
Video Transmission: DJI O4 Air Unit Pro
Frame: 321mm wheelbase
Motor: XING2 2809 1250KV motors
Prop: HQ 7.5X3X3 propellers
Weight: 765±5g(Without Battery)
Takeoff Weight: Approx. 1620±5g (incl. 21700 6S 10000mAh)
Dimensions (L×W×H): 284*283*53mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 25min with 6S 8000-10000mAh battery No Load
Recommended load: 800g
Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Battery plug: XT60
Video Transmission
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
Packing List
1 x Nazgul Evoque F7 O4 6S HD
1 x Battery pad
2 x 7.5 inch Prop(Pairs)
2 x Battery strap
Note
1. iFlight product is for fun purposes only and does not support autonomous flight.
2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1) Any military combat purpose or military combat related use;
(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
For more specific content, please check: https://shop.iflight.com/Export-Policy-info
4. The BNF does not include the remote control, goggles, GoPro, battery, or charger, which need to be purchased separately for compatible use.
J:
What gauge wire is used on the gps connector if I want to wire up the magnetometer myself?
2026-01-12 05:11:43
Answer:
The cable is a #30 silicone wire, AWG. If needed, please contact Sales@iflight.com, and we can provide a 6-pin cable for connecting GPS and magnetometer to FC.
Jake:
Is it waterproof or water resistant? Seems like a conformal coating is the only thing applied for waterproofing.
2026-01-07 23:57:10
Answer:
It is Waterproof. Triple-Layer Vacuum Nano-Coating Waterproof Process. You can check the pictures in the product link for more details.
Jeremy:
Are the video antennas on this the new albatross V2.1? Or do I need to swap them out?
2026-01-04 08:57:09
Answer:
Yes, in Evoque F7, it is albatross V2.1.
Jeremy:
Does the gps on this have a compass?
2025-12-31 16:13:46
Answer:
GPS has a compass, but in BNF, there is no soldered magnetometer. You need to connect it yourself.
Jeremy:
What gps is included with this?
2025-12-31 16:07:02
Answer:
It is BLITZ Mini M10 GPS V2.
Jeremy:
Is there an estimate on when this will be in stock and shipped?
2025-12-28 10:49:24
Answer:
You can contact our sales: sales@iflight.com, inform them of the specific version you need, and they will confirm and let you know if there is stock and the shipping time.
Customer:
Is the battery connector specially waterproofed? Are there safety risks if it gets wet?
2025-11-03 15:09:30
Answer:
No, the battery connector is not waterproof. If the inside of the battery connector contact with moisture/water may create a risk of short circuits and corrosion. If the inside of the connector gets wet, please ensure it is completely dry before any subsequent use.
-------iFlight Support Team
Customer:
Which components can be replaced without affecting the waterproof rating?
2025-11-03 15:06:36
Answer:
You can safely replace external components such as antennas, top plates, and propellers. These parts are designed for user replacement and do not compromise the internal seals that provide water resistance.
-------iFlight Support Team
Customer:
Can I use the Nazgul Evoque F7 O4 6S HD in saltwater environments like the sea or salt lakes?
2025-11-03 15:05:12
Answer:
We strongly advise against it. Salt crystals can clog and corrode the critical seals that provide water resistance, while also aggressively attacking metal and electronic parts. This significantly increases the risk of sudden failure. If the drone is accidentally exposed to saline, please rinse thoroughly with fresh water and dry completely in time.
-------iFlight Support Team
Customer:
Can I change/upgrade the receiver on the Nazgul Evoque F7 myself?
2025-10-31 15:51:16
Answer:
Yes, customers can choose receiver upgrading or changing after receiving it. However, please be aware that any internal modifications will void the original IPX8 waterproof rating. We strongly recommend selecting your preferred receiver version at the time of purchase.
Disclaimer: User-performed modifications are not covered under warranty and may affect product performance and durability.
-------iFlight Support Team
Customer:
What is the waterproof rating standard that the Nazgul Evoque F7 has achieved?
2025-10-31 15:47:45
Answer:
The Nazgul Evoque F7 achieves an IPX8 waterproof rating.
Disclaimer: Please note that the IPX8 rating is based on controlled test conditions. Actual performance may vary depending on usage, water pressure, temperature, and other environmental factors. It is recommended to avoid exposing the product to harsh chemicals, saltwater, or high-pressure water jets. Always ensure all seals are intact and dry the device thoroughly after any contact with water.
-------iFlight Support Team
