Chimera7 Pro V2 6S

Chimera7 Pro V2 6S

AVAILABILITY: In Stock
$469.99

Available Options

In the Box

  • Chimera7 Pro V2 6S Analog BNF

    Chimera7 Pro V2 6S Analog BNF

    x 1

  • HQ 7.5X3.7X3 Propeller(Pairs)

    HQ 7.5X3.7X3 Propeller(Pairs)

    x 1

  • 5.8GHz SMA FPV Antenna

    5.8GHz SMA FPV Antenna

    x 1

  • Battery Strap

    Battery Strap

    x 2

  • Anti-slip Battery Pad

    Anti-slip Battery Pad

    x 1

  • Screw bag

    Screw bag

    x 1

Description

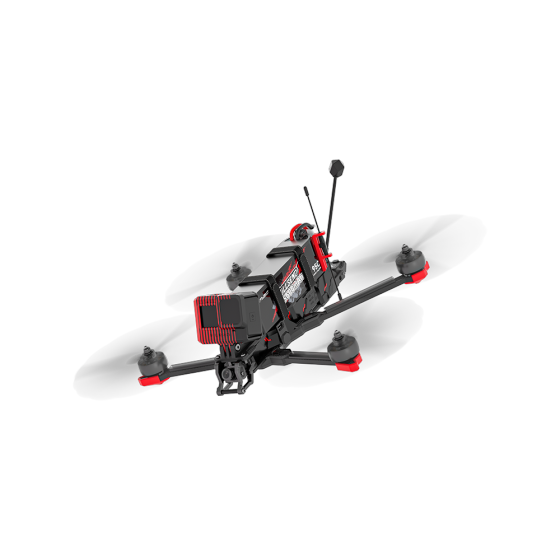

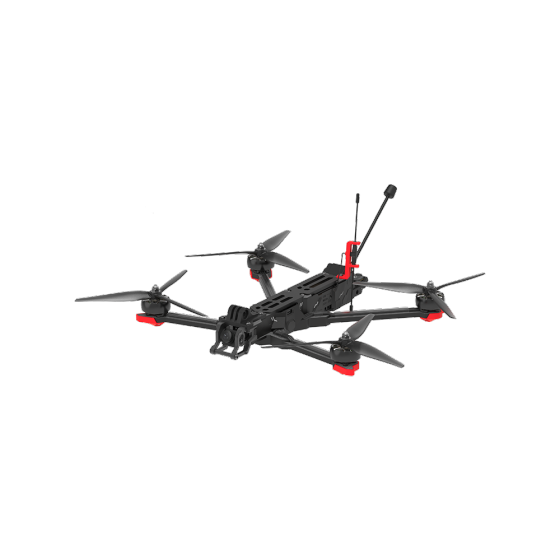

The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.

Highlights

Smooth and Powerful XING2 Motors

The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.

Latest Chimera7 Pro Frame for Maximum Protection

The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

Secured Battery Plug with Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Changelog

June 27, 2023: The antenna installation method is changed from horizontal to vertical. Customers need to screw on the screws of the T-Type Antenna Mount.

Specifications

Product Name: Chimera7 Pro V2 6S Analog

FC: BLITZ F722 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: BLITZ Whoop 1.6W VTX

Frame: 327mm wheelbase

Motor: XING2 2809 motors

Prop: 7.5X3.7X3 propellers

Weight: 665±5g

Model: Chimera7 Pro

Takeoff Weight incl. 8000mAH: Approx. 1619±10g

Takeoff Weight incl. 3300mAH: Approx. 1165±10g

Dimensions (L×W×H):270x199x34mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 30 mins

Max Flight Distance: 18 km

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

Antennas: Single Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: BLITZ Whoop 1.6W VTX

Output Power: 0-25-400-800-1600mw

Input Volts: 12V

Working Current: ≤pit @40mA,≤25mw@150mA,≤400mw@330mA,≤800mw@460mA,≤1600mw@660mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: IPEX

Mounting Hole: 25*25/φ1.6mm

Weight: 16.5g (Antenna not included)

Dimensions: L37mm*W31.5mm*H10mm


Product Name: BLITZ Whoop 5.8G 2.5W VTX

Output Power: 0-25-400-1000-2500mw

Input Volts: 7-34V

Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 25*25/φ1.6mm

Weight: 32g

Dimensions: L50mm*W30mm*H16mm

Packing List

1 x Chimera7 Pro V2 6S Analog BNF

1 x Battery pad

1 x Antennas

2 x Propellers(Pairs)

2 x Battery strap

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
