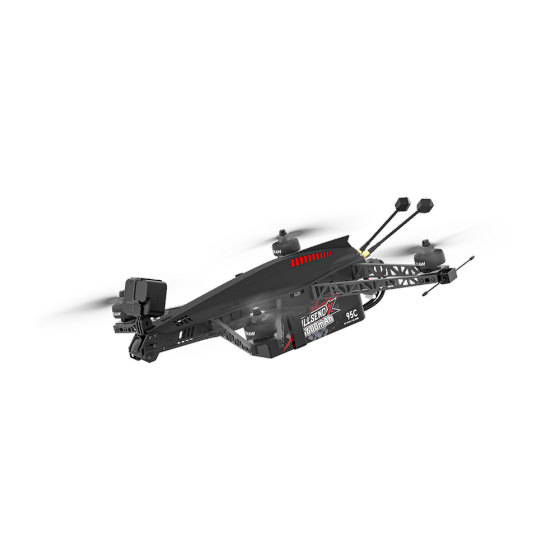

Helion Pro O4 6S HD

HELION -  The Long  Range flagship by 2RAW and iFlight

This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. Helion's distinct frame design was scientifically optimized to balance stability, weight, and rigidity.

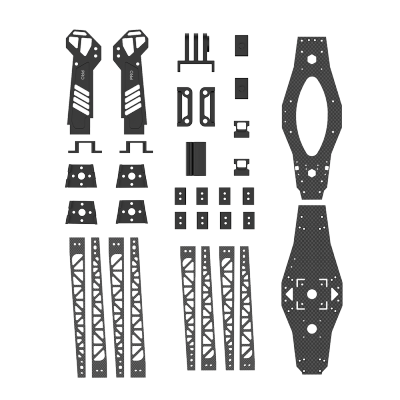

Advanced Truss Arms

The Helion Pro features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

Quick Release Aero-Shell

Upgraded quick release aerodynamic shell allows for easy maintenance while protecting the cores of the power train.

Advanced Truss Arms

The Helion Pro features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

Premium Electronics Package

The Helion Pro is equipped with advanced, high-end electronics, featuring the 2RAW H7 Thunder flight controller and BLITZ E55 ESC, which minimizes electrical noise to deliver exceptionally smooth flight performance.

4K Stabilized Video

Helion Pro is equipped with the latest DJI O4 Air Unit Pro, it boasts an enhanced imaging capability with a 1/1.3-inchimage sensor, capable of recording 4K/120fps video, and the max transmission distance can reach up to 15 kilometers.

Unmatched FOV

No props in view in both O4 and Action cam at 0 degrees.

Product Name: Helion Pro O4 6S HD

FC: Thunder H7 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 414mm wheelbase

Motor: Helion 10 3110 900KV motors

Prop: GEMFAN 1050 propellers

Weight: 1070g±20g

Takeoff Weight: Approx.1903±20g (With 6S 5600mAh)

Dimensions (L×W×H)：374*362*70mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 26-27mins with 6S Lipo 5600mAh battery

Max Cruising Time: Approx. 8-9mins with 6S Lipo 5600mAh battery in 80km/h

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Battery plug: XT90

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

1 x Helion Pro O4 6S HD

1 x Battery pad

2 x GEMFAN 1050 propellers(Pairs)

2 x Battery strap

1 x Amass XT90 to XT60 H Adapter Cable
