XING 2806.5 FPV Cinelifiter Motor

AVAILABILITY: In Stock
$33.99

Available Options


Description

The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 7 inch or 8 inch.

Features

High-strength 4mm Titanium alloy shaft

Unibell design

7075 aluminum Bell and Base

Electromagnetically matched magnets and stator

Japanese NSK 11*5*5 bearings

N52H Arc curve magnets

Motor wires protected

Hex bolt shaft set screw

Dynamically balanced

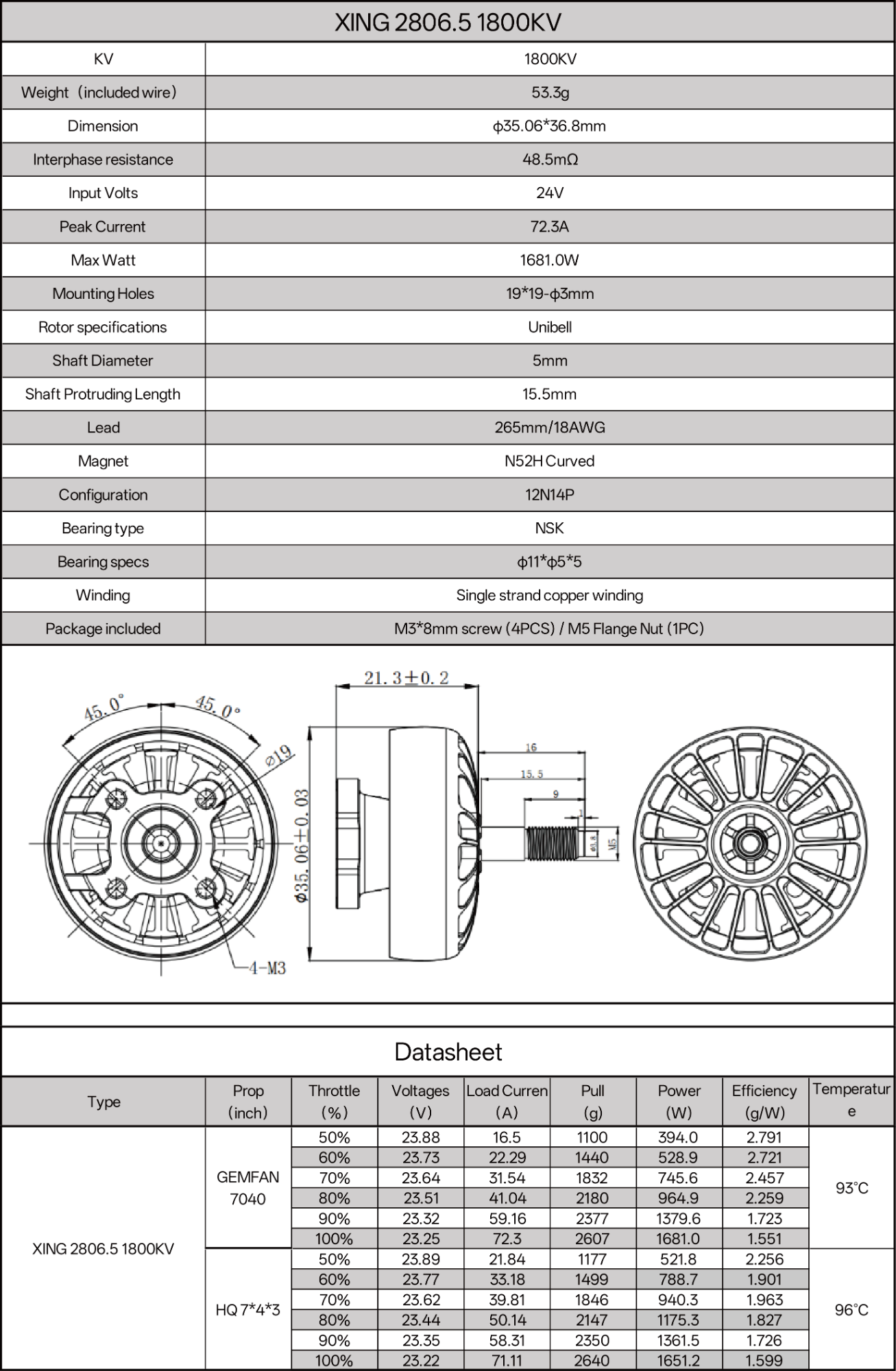

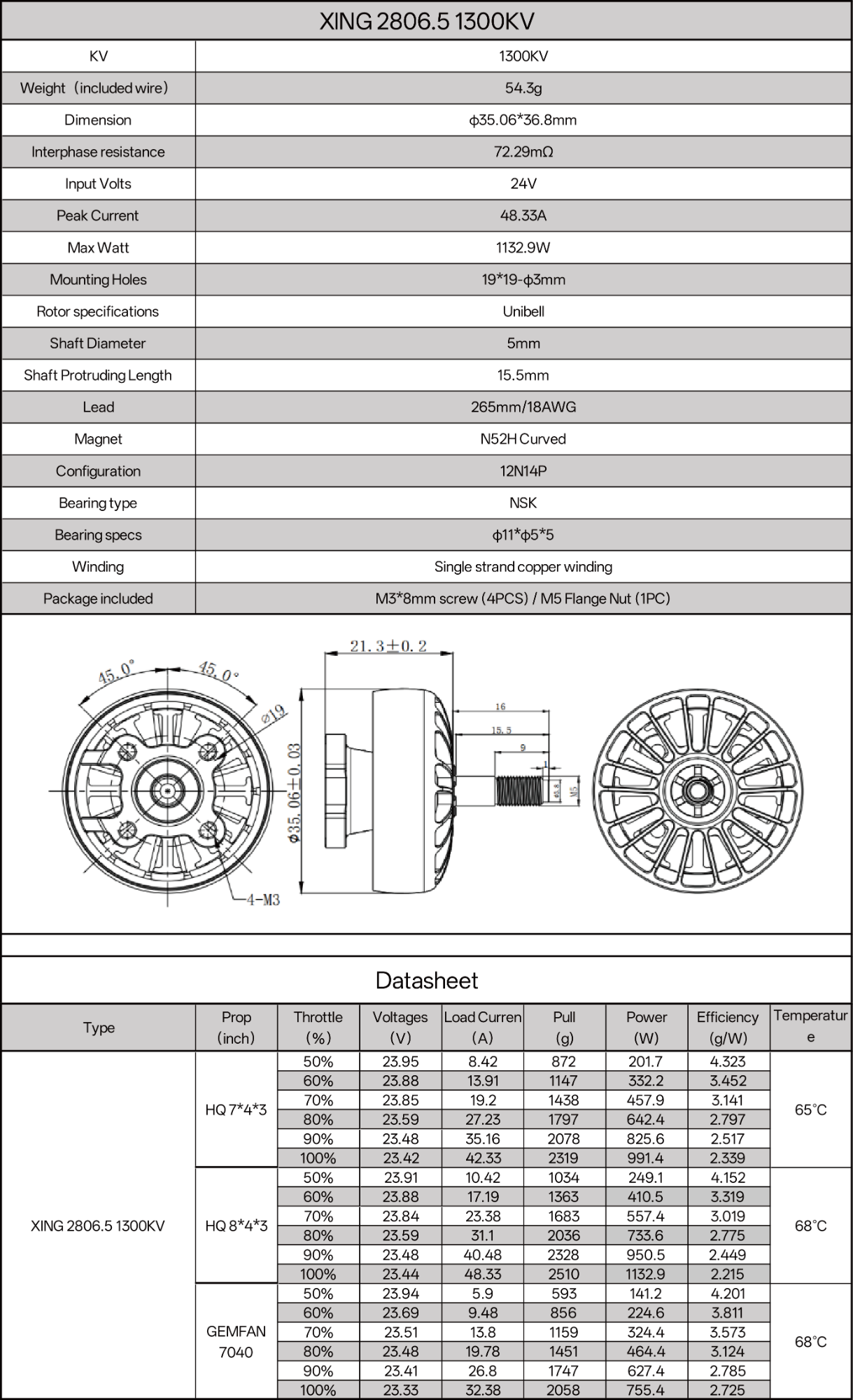

Specifications

Model: XING 2806.5 Motor

KV: 1300KV/1800KV

Weight: 49.5g/53.3g

Dimension: φ35.06*21.3mm

Interphase Resistance: 72.29mΩ/ 48.5mΩ

Input Volts: 24V

Peak Current: 48.33A/72.3A

Max Watt: 1132.9W/1681.0W

Mounting Holes: 19*19 φ3mm

Rotor Specifications: Unibell

Shaft Diameter: 5mm

Shaft Protruding Length: 15.5mm

Lead: 265mm/18AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ11*φ5*5

Winding: Single Strand copper winding

Packing List

1 x XING 2806.5 motor

1 x M5 Screw nut

4 x M3*8 screws
