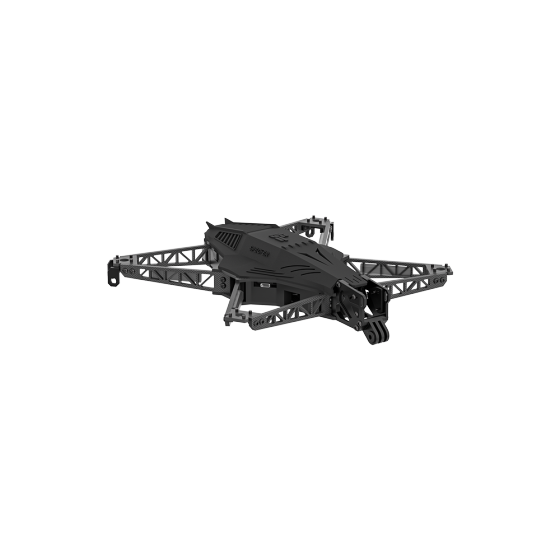

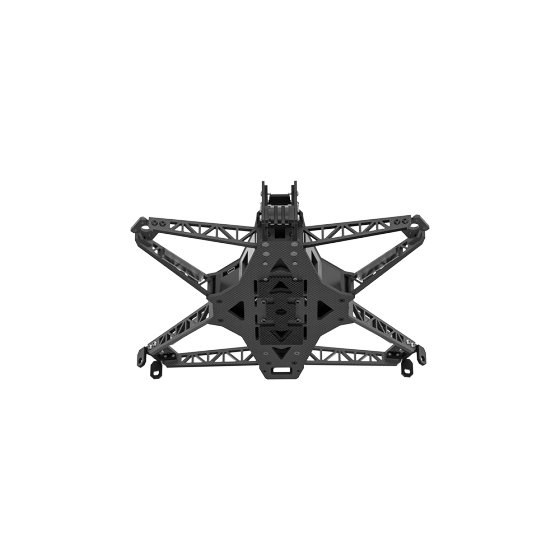

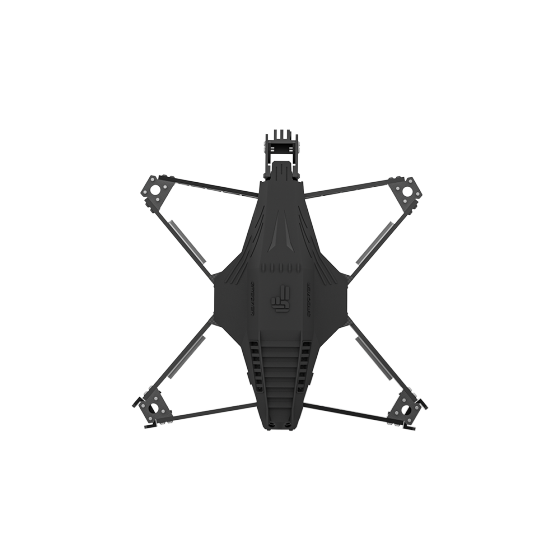

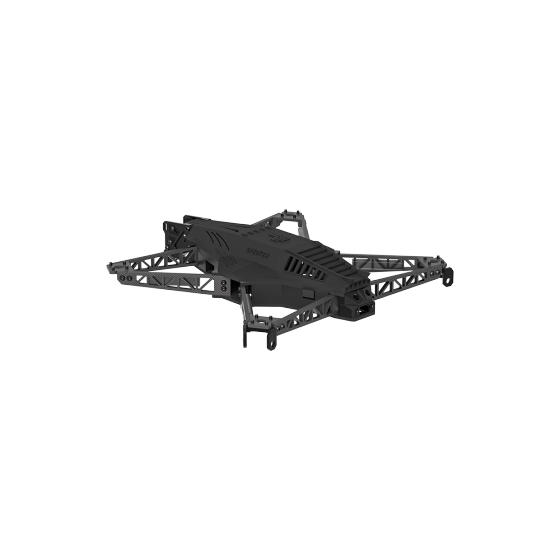

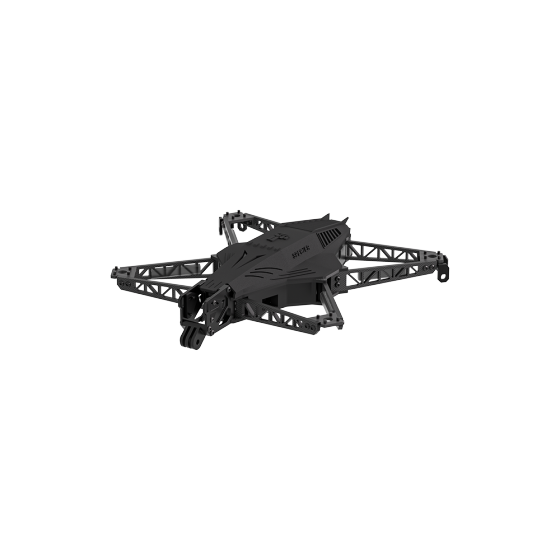

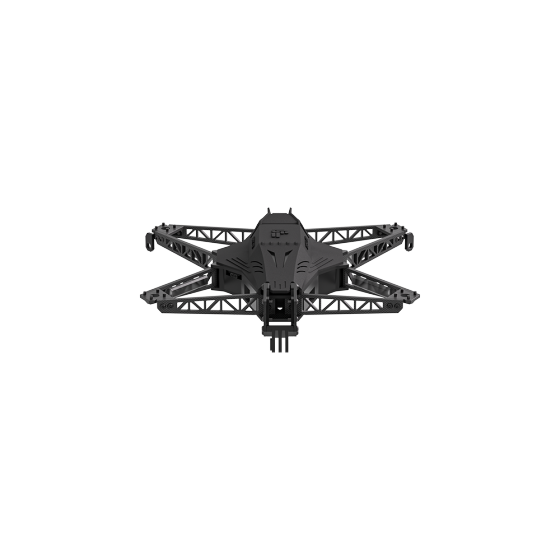

Specter 7 Frame Kit

SPEC7ER is a high-performance FPV drone by 2RAW and iFlight.

Equipped with premium components and an innovative design that emphasizes durability, aerodynamics, and easy maintenance.

Easy Maintenance

The Specter features a unique shell quick-release system that allows for easy one-click opening of the shell, providing full access to the internal electronics.

Reinforcement Structure

The Specter incorporates CNC aluminium parts in key areas such as arm ends, internal arm joints, and the GoPro mount. This design simplifies the complex truss structure, allowing for easy assembly while ensuring exceptional strength.

Truss Design

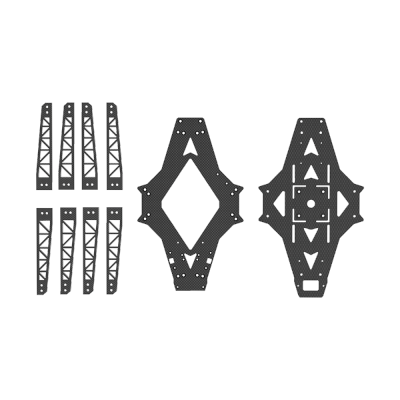

The Specter features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.

Aero Shell

2RAW’s signature aero shell protects the internal electronics from debris and dirt, drastically improving the drone's aerodynamic performance in the sky. It also features integrated LEDs, allowing users to easily spot their drone in the air.

Unmatched FOV

With a unique underslung GoPro mounting method, the Specter enables users to have no props in view from -45 to 45 degrees in both the DJI O4 feed and the GoPro feed.

Product Name: Specter Frame

Wheelbase: 306mm

Frame Dimension(L*W*H)：232*201*62mm

Arm Thickness: 4mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 3mm

Max Flight Stack Height: 20mm

Max VTX Height: 20mm

Flight controller Mounting: 30*30/Φ3mm

VTX Mounting: 25.5*25.5/Φ2mm

Motor Mounting: 19*19/Φ3mm

Weight: 315g

Compatibility: DJI O4 Air Unit Pro

1 x Specter Frame Kit

1 x TPU Set

2 x Battery Anti-slip pads

1 x Screw Bag

2 x Battery Strap

4 x Motor Wire Shield Tube

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
