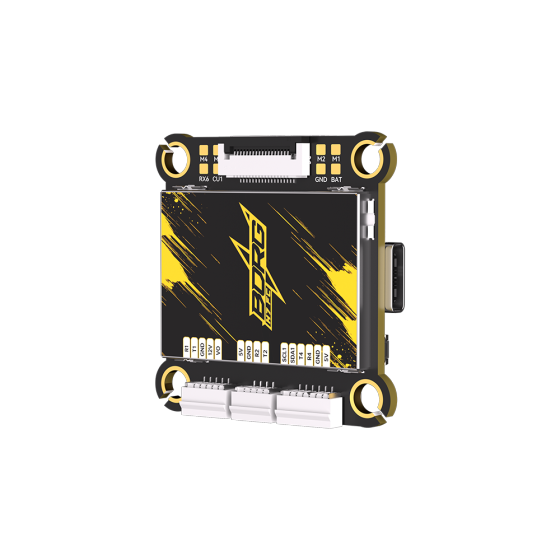

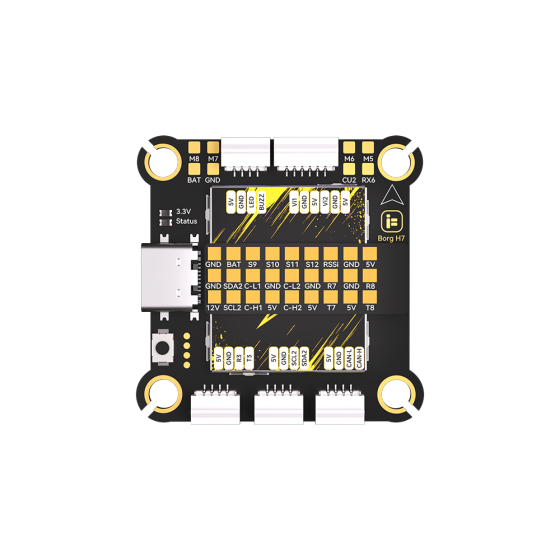

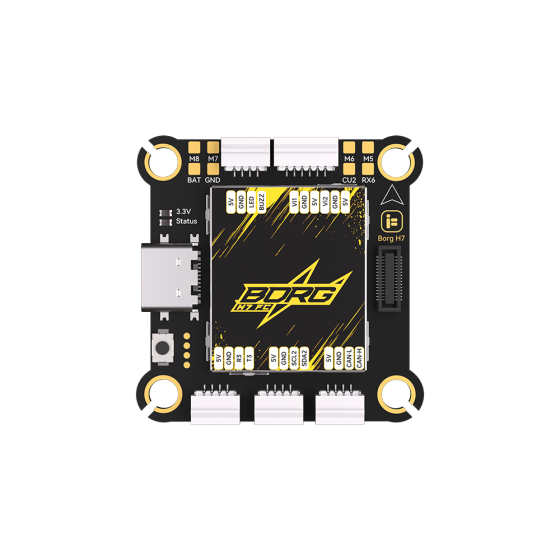

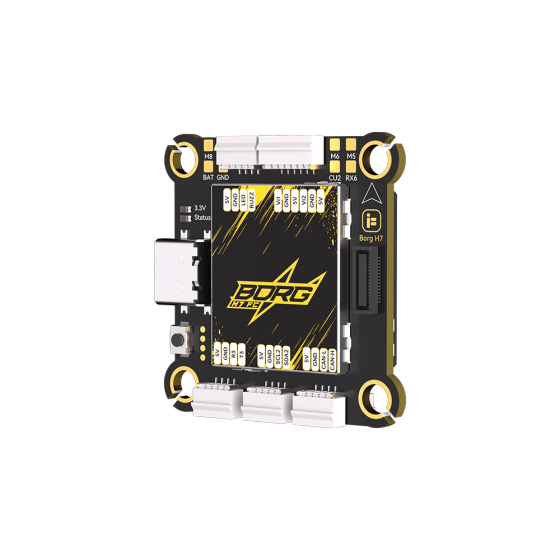

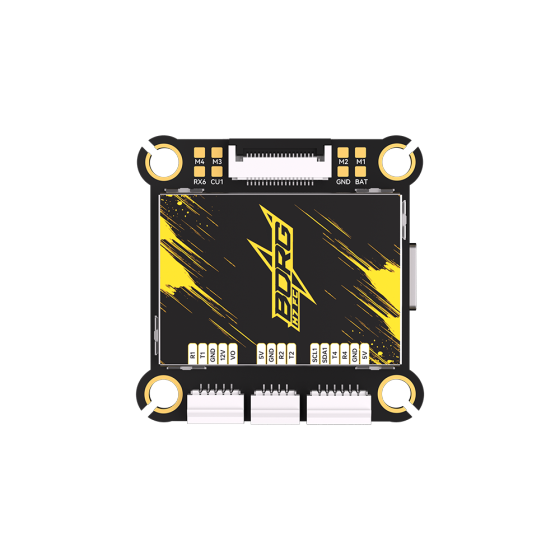

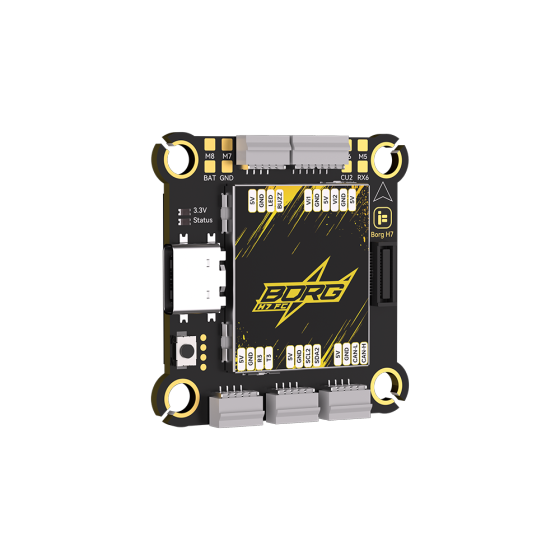

Introducing the All-New BLITZ H7 Flight Controller – Power Meets Versatility!
The BLITZ H7 Flight Controller is specifically designed for 5-10 inch FPV drones, delivering stable and outstanding performance to elevate your flying experience. Equipped with dual camera input support, it enables flexible visual setups for diverse FPV scenarios, while its support for 4-12S battery power supply ensures strong adaptability and lasting flight power.
Boasting cutting-edge technology and reliable design, the BLITZ H7 Flight Controller combines compatibility and performance seamlessly, making it the ideal core component for your 5-10 inch FPV drone build – unlock new possibilities with every flight!
Supports 4-12S battery power supply, adapts to different 5-10 inch FPV drone configurations, and ensures stable power output.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
Adopts FPC cable connection with the ESC for more reliable and stable signal transmission, while other interfaces use SH1.0 lock connections to prevent loose connections during flight.
Supports dual camera input, allowing for switching between two cameras freely via the remote control to meet different FPV viewing needs in various flight scenarios.
Supports dual gyroscopes, which enhance flight stability and accuracy, ensuring smooth and precise control even in complex flight environments.
Input voltage: 4-12S; Support LIHV battery
MCU: STM32H743VIH6
Gyro: ICM42688*2
Barometer: SPA06-003
OSD Chip: AT7456E（LGA）
Flash: 32MB (Blackbox flash)
UARTS: 7
Motor outputs: 8
I2C serial: I2Cx2
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BORG_H7
Mount pattern: 30.5x30.5φ4
Dimensions: 37.5x37.5mm±1
Weight: 17g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
UART 1 for VTX HD / Analog
UART 2 for Receiver
UART 3 for GPS or other sensors that require a serial port
UART 4 for GPS
UART 6 for ESC Telemet
UART 7 for GPS or other sensors that require a serial port
UART 8 for GPS or other sensors that require a serial port
1 x Borg H7 Flight Controller
1 x Cable set
5 x silicon grommets
VTX_ON_OFF Mode Command
resource PINIO 1 D10
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_1_name = VTX_ON_OFF
aux 0 40 8 900 2100 0 0
save
Camera_ON_OFF Mode Command
resource PINIO 2 D11
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_2_name = CAM_SW
aux 1 41 9 900 2100 0 0
save
