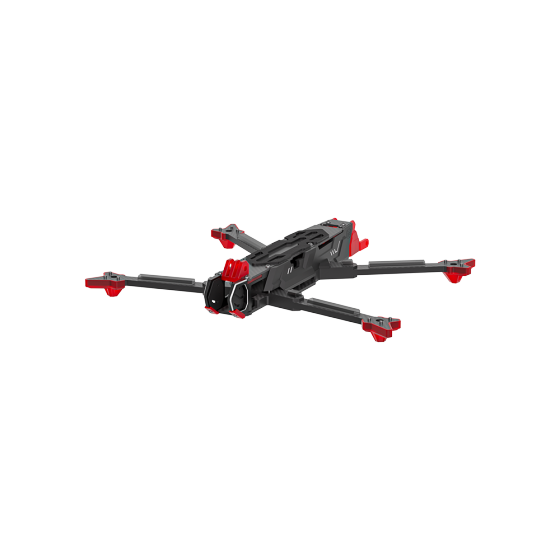

SH CineLR 7 O4 Frame Kit
In The Box
Related Products
The SH CineLR 7 Longrange Frame Kit opens up endless possibilities, delivering lightning-fast speed and exceptional performance. It supports high-capacity batteries for extended flight times, allowing you to explore the skies like never before. When paired with the advancedDJI O4 Air Unit Pro for video transmission, it provides ultra-high-definition resolution. The SH Series features an innovative frame design that keeps propellers out of view, enhancing your aerial experience.
Mar.11, 2025: The material of some TPU Parts in Frame is changed to injection molded parts.
Quick-release side panels
Provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
Integrated Action Camera Base Mount
Sleek and integrated design, redefine aesthetics.
Rear-mounted Power Connector
Optimized weight distribution for improved flight stability and precision.
Reinforced Arm Base
Strengthened the connection between the arm base and the drone to improve durability.
Product Name：SH CineLR 7 O4 Frame Kit
Wheelbase: 334mm
Frame Dimension: L285*W196*H45mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Mid-Lower Plate Thickness: 6mm
Max Flight Stack Height: 20mm
Max VTX Height: 22mm
Flight Stack Mounting: 20*20/Φ3mm 30*30/Φ3mm
Motor Mounting: 19*19/Φ3mm
VTX Mounting: 25.5*25.5/Φ2mm
Weight: 336g±5g
Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit
1 x SH CineLR 7 Frame Kit
2x IPEX to RP-SMA Antenna Pigtails
1 x TPU Set
1 x GoPro TPU Base Mount
1 x Screw Bag
2 x Anti-slip Battery Pad
2 x Battery Strap
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
Both of these 2 drones are good for long range. Chimera7 Pro V2 O4 6S HD is the upgrade of Chimera7 Pro V2 O3 6S HD. The Chimera7 Pro V2 series has always been the best-selling drone in our long range series, with excellent performance and excellent expressiveness, and the feedback is very good.
The new SH CineLR 7 O4 6S HD compared to the Chimera7 Pro V2 O4 6S HD drone have the following main differences:
1. Innovative H-shaped Frame Design, No Props in View;
2. Quick-release Side Panels;
3. Built-in high-precision GPS Module prevents signal loss from external damage;
4. Installed with the BLITZ LED Control Modules, which allow you to set the LED directly through buttons, which is more convenient;
5. Battery Plug mount updated to a fixed XT60 form, and can also minimize the possibility of cables being hit by propellers, improving the convenience and safety of flight;
For more details, please refer to the links below, which depend on which design you prefer.
https://shop.iflight.com/Chimera7-Pro-V2-6S-O4-HD-Pro2259?search=chimera
https://shop.iflight.com/CineLR-7-6S-HD-Pro2265?search=SH%20CineLR%207%20O4%206S%20HD
-------iFlight Support Team
Cannot be set up and adjusted on Betaflight. The BNFs of the SH Cine series are directly installed with the BLITZ LED Control Modules, which allow you to set the LED directly through buttons, which is more convenient.
-------iFlight Support Team
