Borg Series – Power Meets Precision!
The new ESCs feature an integrated anti-spark circuit and a TVS transient voltage suppressor, providing double protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, these ESCs eliminate the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology.
Support 4-6S Battery Input.
8-Layer high-current PCB allows for continuous current handling of 60A, with a peak current of 65A.
Onboard Anti-Spark Filter protects your equipment from voltage spikes.
Built-in High Polymer Capacitors eliminate the need for external capacitors in 5inch models. An additional capacitor is required for those over 5 inches.

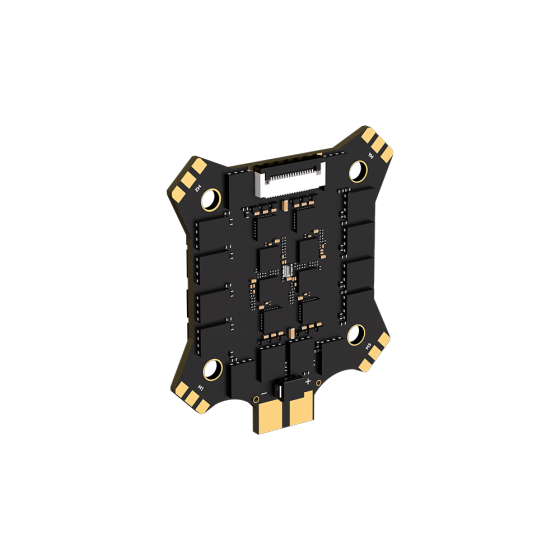

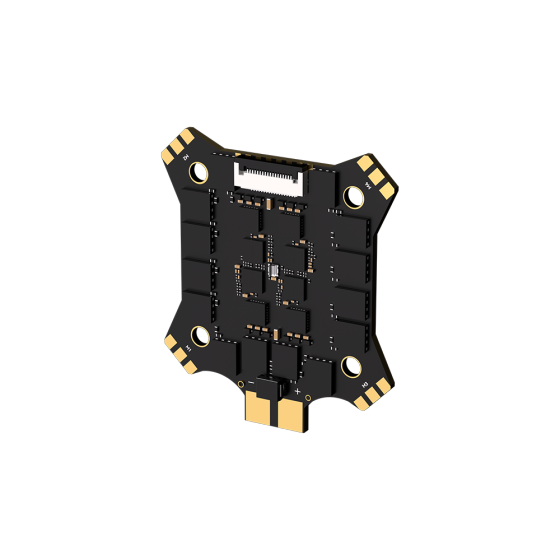

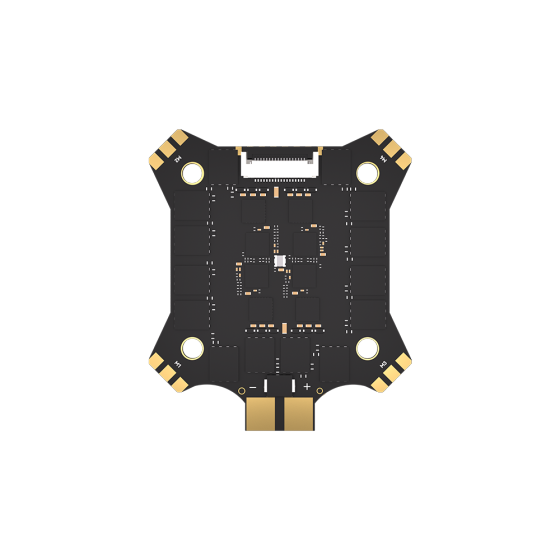

FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC. Reserved pads for multi-brand flight controllers

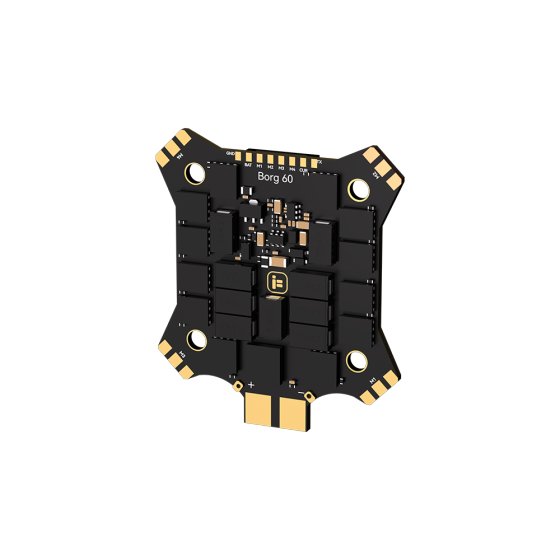

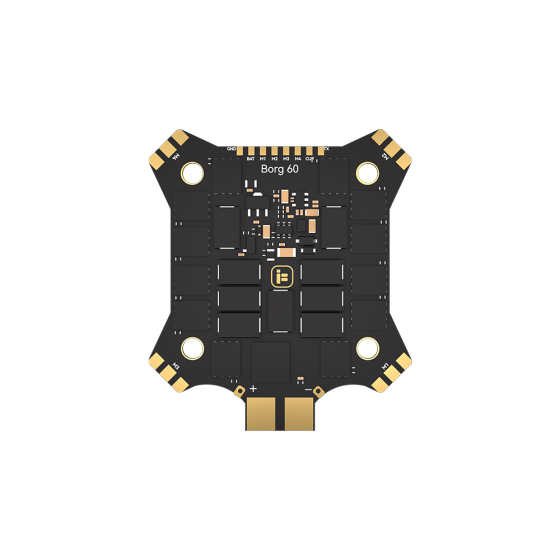

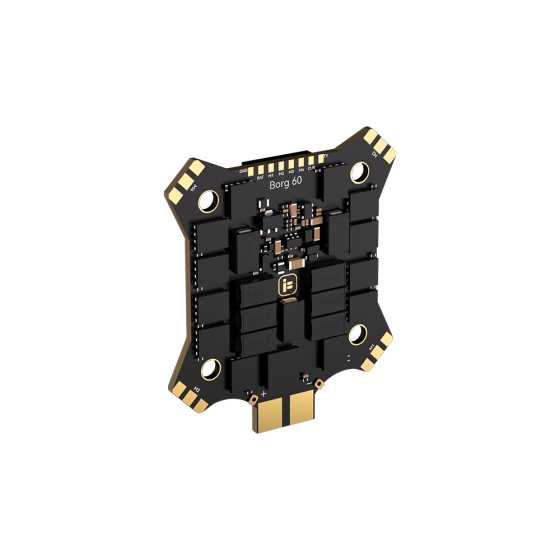

Product Name: Borg 60 ESC
Input Voltage: 4-6S(DC 14-26.1V); Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes(1/200)
BEC: No
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 52*45.5mm±1
Mounting Holes: 30.5*30.5φ4
Weight: 15.5g±1
Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc.
1 x Borg 60 ESC
1 x Cables set
4 x silicon grommets
