BOB57 O4 Cinematic 6S HD - RTF(G3)

Because this product is a virtual product, we will send the key via email after the customer receives the Commando 8 package. Therefore, please contact customer service to obtain it after receiving the package.

This key can only be used on Steam.

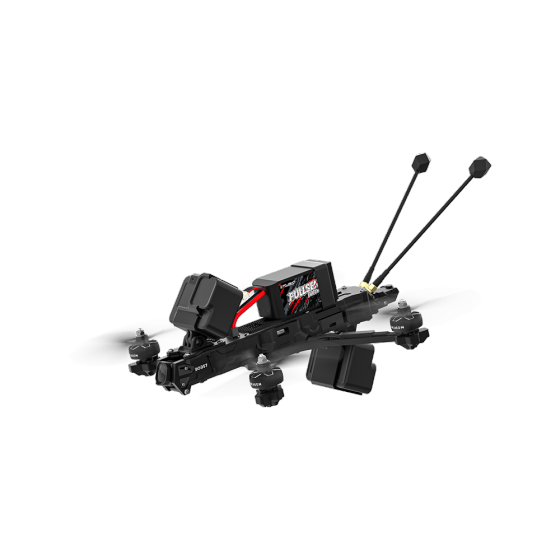

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers

High-end GPS is used to minimize the risk of failure during proximity flights

Long backbone with enough space up to fit 3000mAh 6S batteries

Solid antenna mount for less ocillations when using long antennas

Gladiator shell protects from dust and water droplets

ESCs with built-in spike absorber for more reliability

Built in BEC to directly power a GoPro camera

9-minute flight time with 3000mAh 6S Lipo

Front-mounting XT-60

Product Name: BOB57 O4 6S HD BNF

FC: BLITZ F722

ESC: BLITZ E55 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame: 280mm wheelbase

Motor: XING2 2506 1500KV motors

Prop: GEMFAN 6032-3 propellers

Weight: 570±5g

Takeoff Weight: Approx.795±5g (With 6S 1480mAh)

Dimensions (L×W×H): 226×166×34 mm

Max Speed: 180 km/h (Manual Mode)

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 8.5 min (With 6S 1400 no load.)

Operating Temperature Range: -10° to 40° C

Antennas: Dual Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Product Name: Commando 8 ELRS V2 Radio

Weight: 310g (±10g)

Dimentions(LxWxH): L 190 x W 150 x H 51mm

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

900MHz:FCC: 30 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts:  0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C  to  40°C (32°F to 104°F)

Charging Temperature Range: 5°C to  40°C (41°F to 104°F)

Product Name: DJI Goggles 3

Weight: Approx. 470 g (battery included)

Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)

With antennas unfolded: 205×109×112 mm (L×W×H)

Screen Size (single screen): 0.49 inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -6.0 D to +2.0 D

FOV (single screen): 44°

Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)

5.1 GHz:< 23 dBm (CE)

5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)

Max Video Transmission Bitrate: 60 Mbps

Operating Temperature Range: -10°C to 40°C (14°F to 104°F)

Battery Voltage: 5.6-8.4 V

Supported SD Cards: microSD (up to 512 GB)

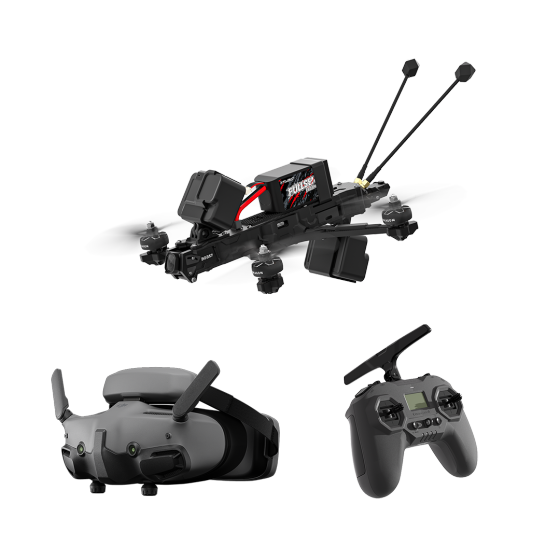

1 x BOB57 6S O4 HD BNF

1 x Commando 8  V2 ELRS Radio

1 x DJI Goggles 3

2 x Antennas

2 x Battery pads

2 x Prop(Pairs)

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

1. iFlight product is for fun purposes only and does not support autonomous flight.

2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

For more specific content, please check: https://shop.iflight.com/Export-Policy-info

4. The GoPro and battery shown on the page are for display only. The RTF kit does not include the battery, GoPro, or charger, which need to be purchased separately for compatible use.
