Mach R5 Ultra Trainer 6S
In The Box
Break the Edge, Full Speed Ahead
Mach R5 Ultra Trainer boasts top-tier performance on the field. It cuts through the air as fast as lightning, forging extraordinary performance aesthetics and fully showcasing the sharpness of peak excellence.
Ultimate Speed, Rule the Track
245 km/h top speed, lead from takeoff, win instantly.

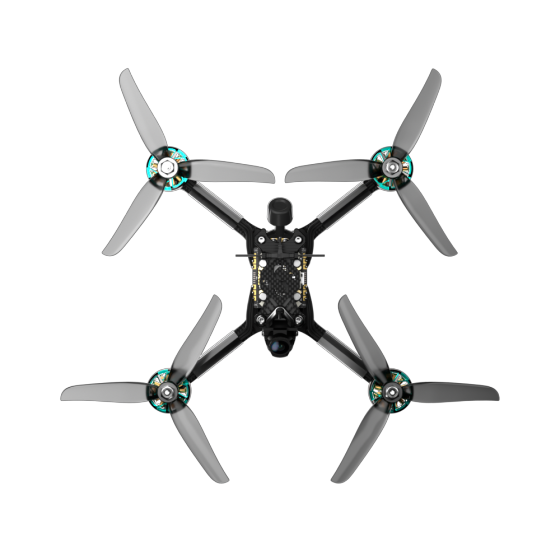

Compact X Geometry
The X-frame design improves space utilization by 20%, reduces wiring clutter and cleaner build.
T700 Carbon Fiber Frame, Built for Strength
T700 high-modulus carbon fiber frame with 7075 CNC center plate delivers superior strength, impact resistance, and vibration absorption for extreme racing conditions.
Ultra-Lightweight Design for Sharper Cornering Control
The 7075 CNC center plate features an optimized hollow design, reducing weight by up to 15% compared to traditional carbon plates. With dual-hole motor mounts reduces weight to just 260g. It delivers agile handling and smoother tight turns in racing.
Hardcore Electronic Setup
Upgraded H7 electronics support 2207 2100 high-KV motors, delivering instant response and explosive power for dominant corner exits and straight-line sprints.
Highly Integrated Design
Integrated flight stack delivers a compact and lighter build with stable voltage regulation for safer, more reliable flight.
More Highlights
Built-in 4-Pin LED Strip Connectors: No extra PDB required, plug and play.
Integrated Antenna Design: Direct frame connection, no extra TPU parts needed.
Built-In CNC Locating Pins: Eliminate structural play, reducing resonance and vibration during high-speed flight.
Reinforced Arm Roots: Withstands multiple high-impact crash tests for durability and fast recovery after crashes.
Dual Independent BEC: 12V 2A + 5V 2.5A, delivering stable power for race performance.
Product Name: Mach R5 Ultra Trainer 6S Analog
FC: Borg Mini H7 FC（RX）
ESC: Borg 60RS ESC
Video Transmission: Borg Race 5.8G 200mW VTX
Frame: 190mm wheelbase
Motor: R5 2207 2100KV motors
Prop: Nazgul R5 V2 propellers
Weight: 285±5g
Takeoff Weight: Approx. 517±5g (With 6S 1550mAh battery)
Dimensions (L×W×H): 157*148*33mm
Max Speed: 245km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 14 min (With 6S 1550mAh no load)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: N/A
Product Name: Borg Race 5.8G 200mW VTX
Output Power: PIT/25mW/100mW/200mW
Input Volts: 4.5-28V
Channels: 16CH(R-L)
Antenna Interface: IPEX
Mounting Hole: 20x20/Φ4mm
Weight: 3.5g
Dimensions: 25x25x3.7 mm
1 x Mach R5 6S Ultra Trainer Analog BNF
1 x Battery strap
2 x R5 Prop(Pairs)
1 x Battery pad
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
1. iFlight product is for fun purposes only and does not support autonomous flight.
2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1) Any military combat purpose or military combat related use;
(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
For more specific content, please check: https://shop.iflight.com/Export-Policy-info
4. The BNF does not include the remote control, goggles, battery, or charger, which need to be purchased separately for compatible use.
