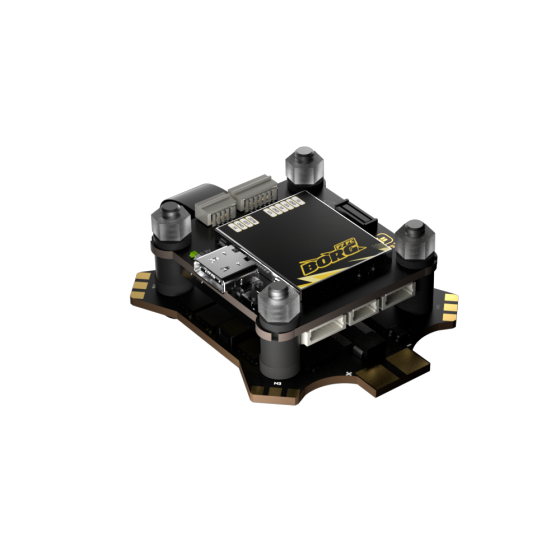

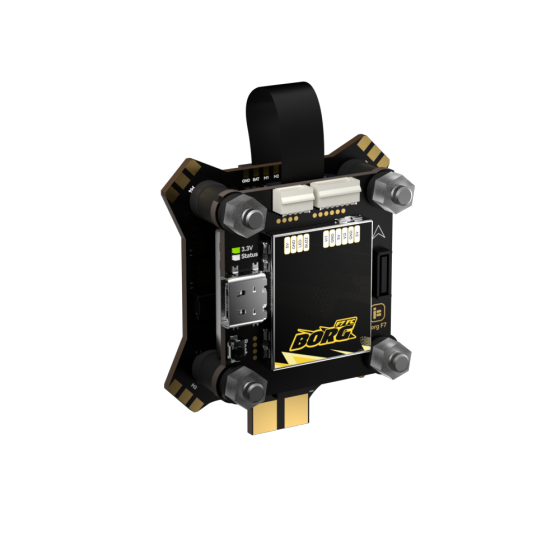

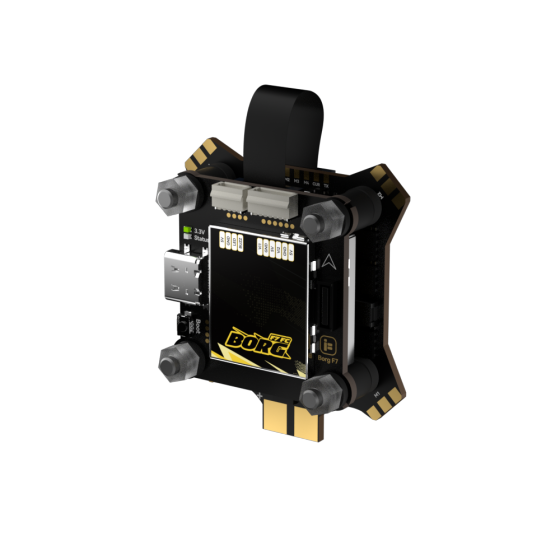

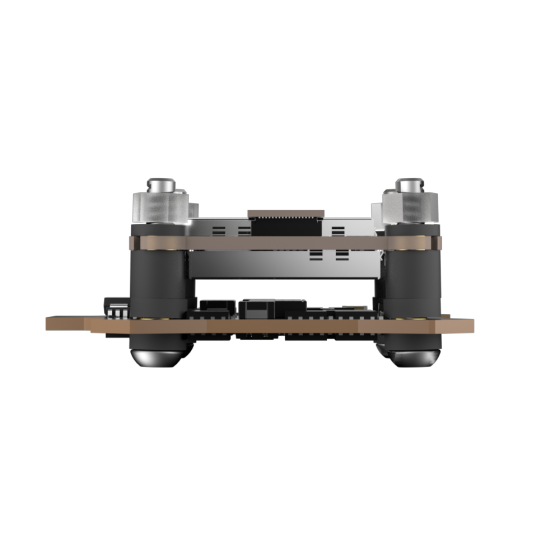

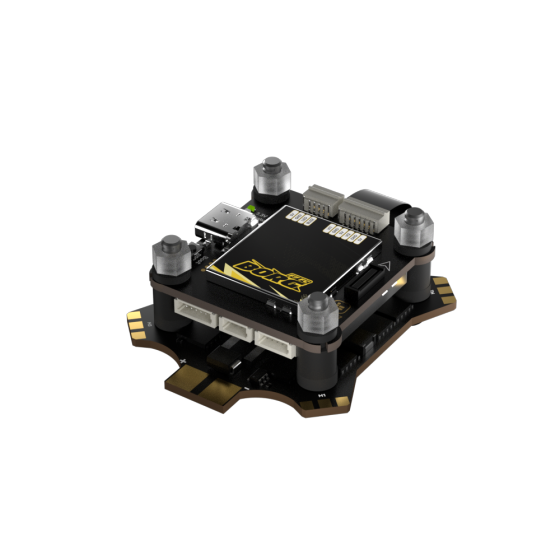

Borg F7 Stack (60 4-IN-1 ESC)
Borg Series – Power Meets Precision!
The Borg F7 Flight Controller is expertly engineered for 5–10 inch FPV drones, delivering exceptional stability and uncompromising performance. Elevate your flying experience with the advanced technology and reliable design of the Borg Series.
The new ESCs feature an integrated anti-spark circuit and a TVS transient voltage suppressor, providing double protection against voltage spikes that can damage your equipment. Designed with high polymer capacitors, these ESCs eliminate the need for external capacitors in 5-inch racing models, simplifying installation and reducing weight. Experience enhanced reliability and performance with this cutting-edge technology.
Supports 4S to 6S battery inputs, offering versatility for various setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Supports dual camera input and allows switching via the remote controller.
Input voltage: 4-6S; Support LIHV battery
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E (LGA)
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4
I2C serial: Support
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Betaflight Firmware target: IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5φ4
Dimensions: 37.5*37.5mm±1
Weight: 14g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
UART 1 for VTX HD / Analog
UART 2 for Receiver
UART 3 for GPS or other sensors that require a serial port
UART 4 for GPS
UART 5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Product Name: Borg 60 ESC
Input Voltage: 4-6S(DC 14-26.1V); Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: Yes(1/200)
BEC: No
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 52*45.5mm±1
Mounting Holes: 30.5*30.5φ4
Weight: 15.5g±1
Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc.
1 x Borg F7 Flight Controller
1 x Cable set
VTX_ON_OFF Mode Command
resource PINIO 1 C0
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_1_name = VTX_ON_OFF
aux 0 40 8 900 2100 0 0
save
Camera ON&OFF Command
resource PINIO 2 C14
set pinio_config = 1,1,1,1
set pinio_box = 40,41,255,255
set box_user_2_name = CAM_SW
aux 1 41 9 900 2100 0 0
save
