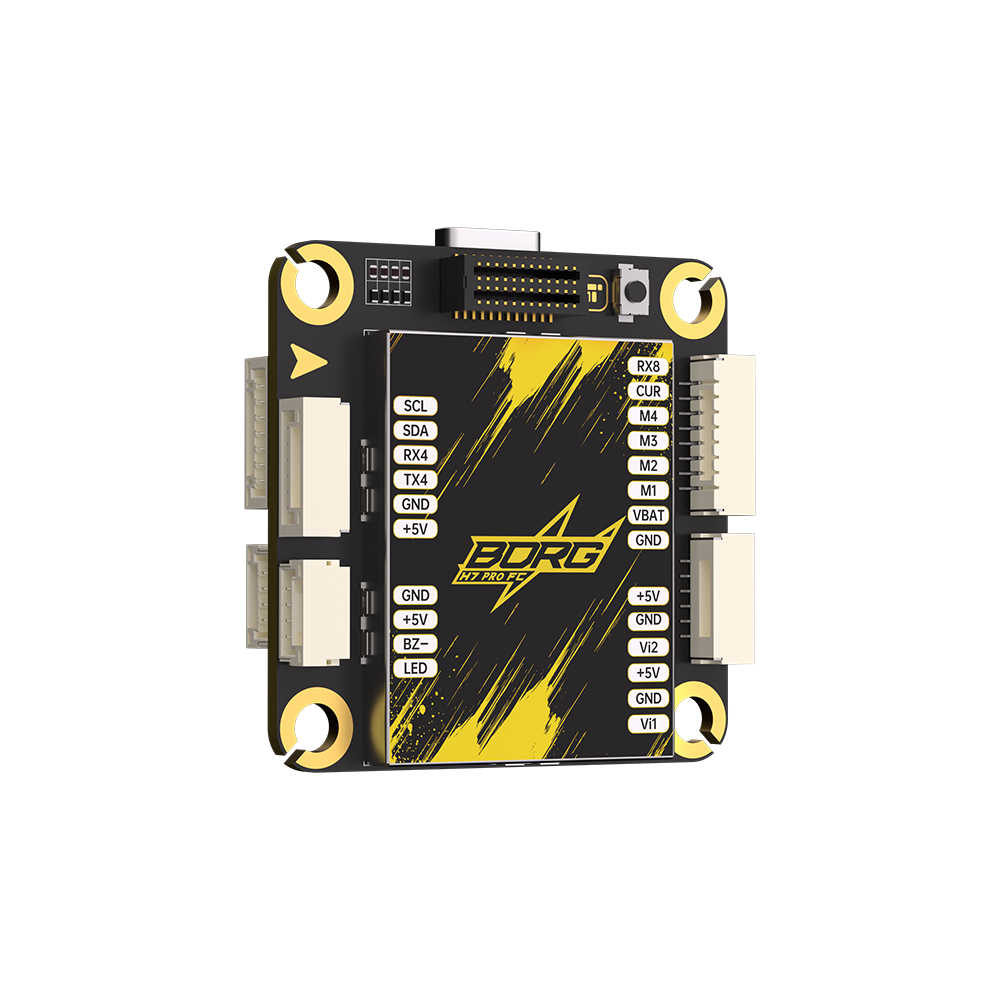

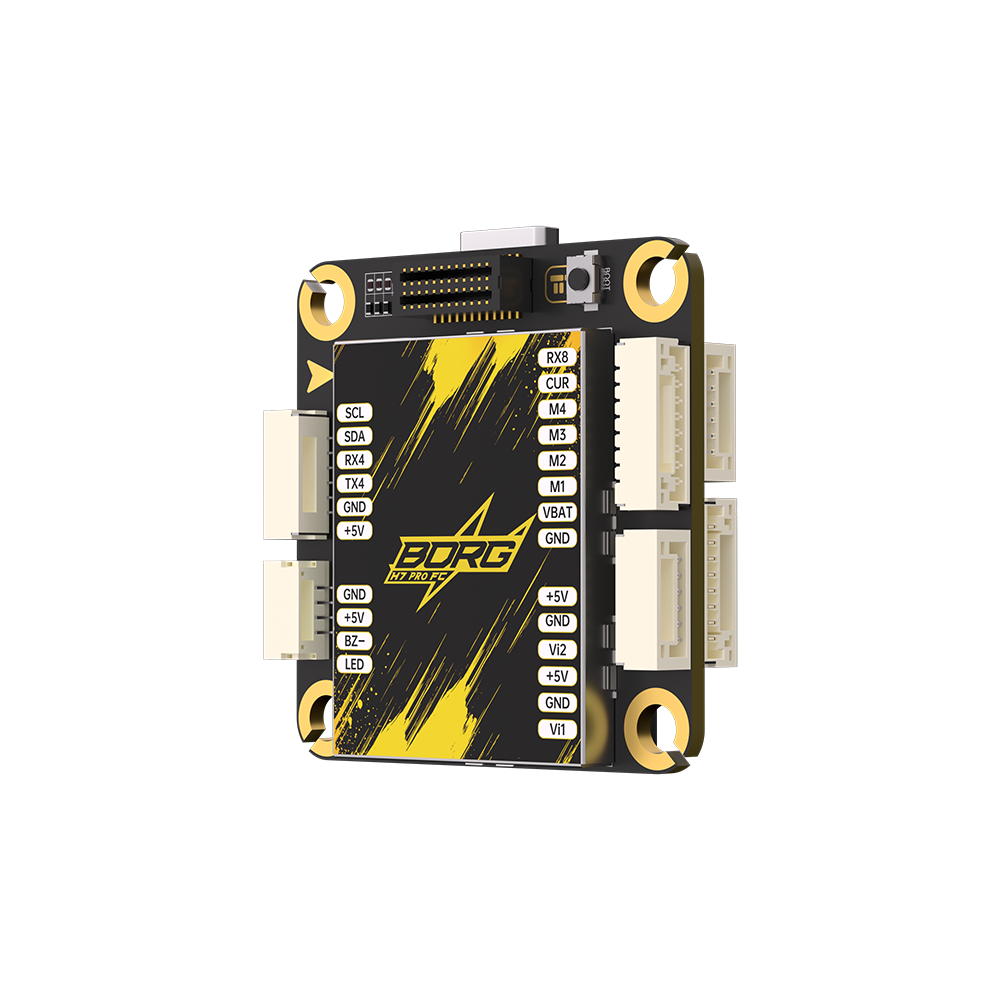

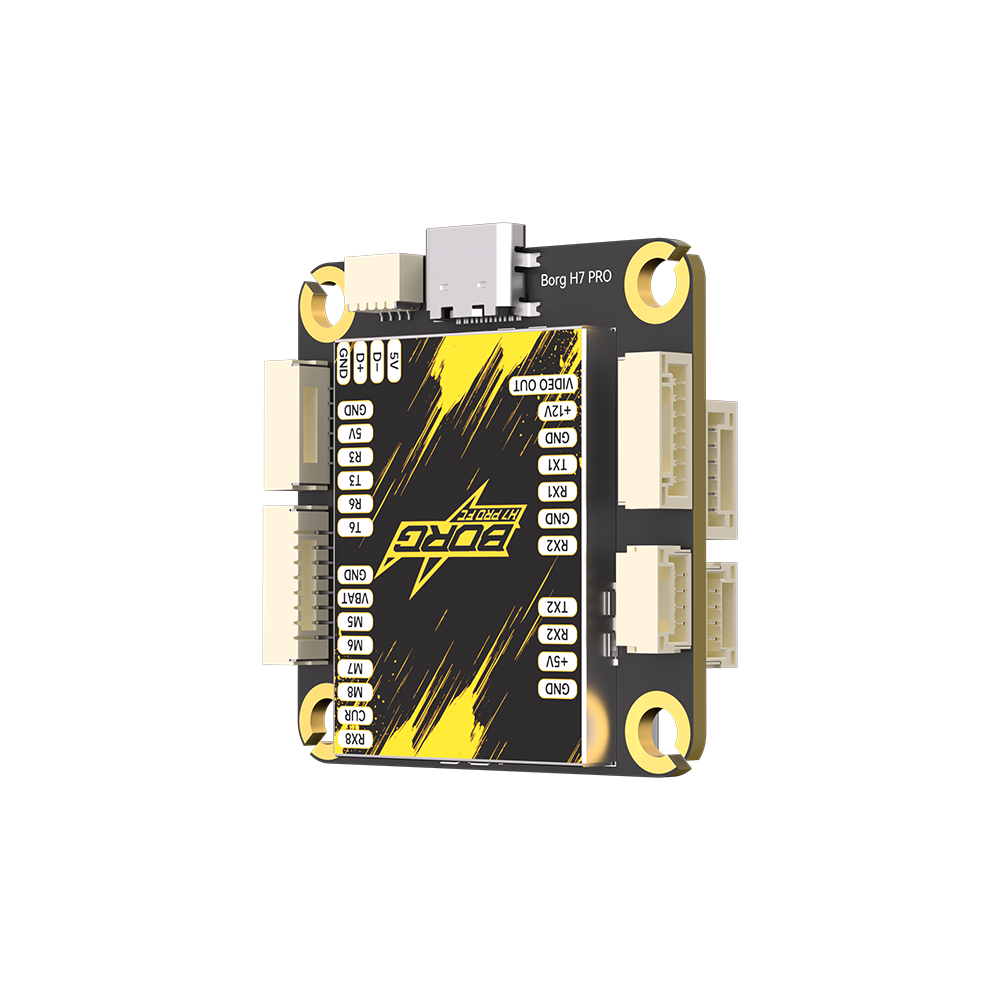

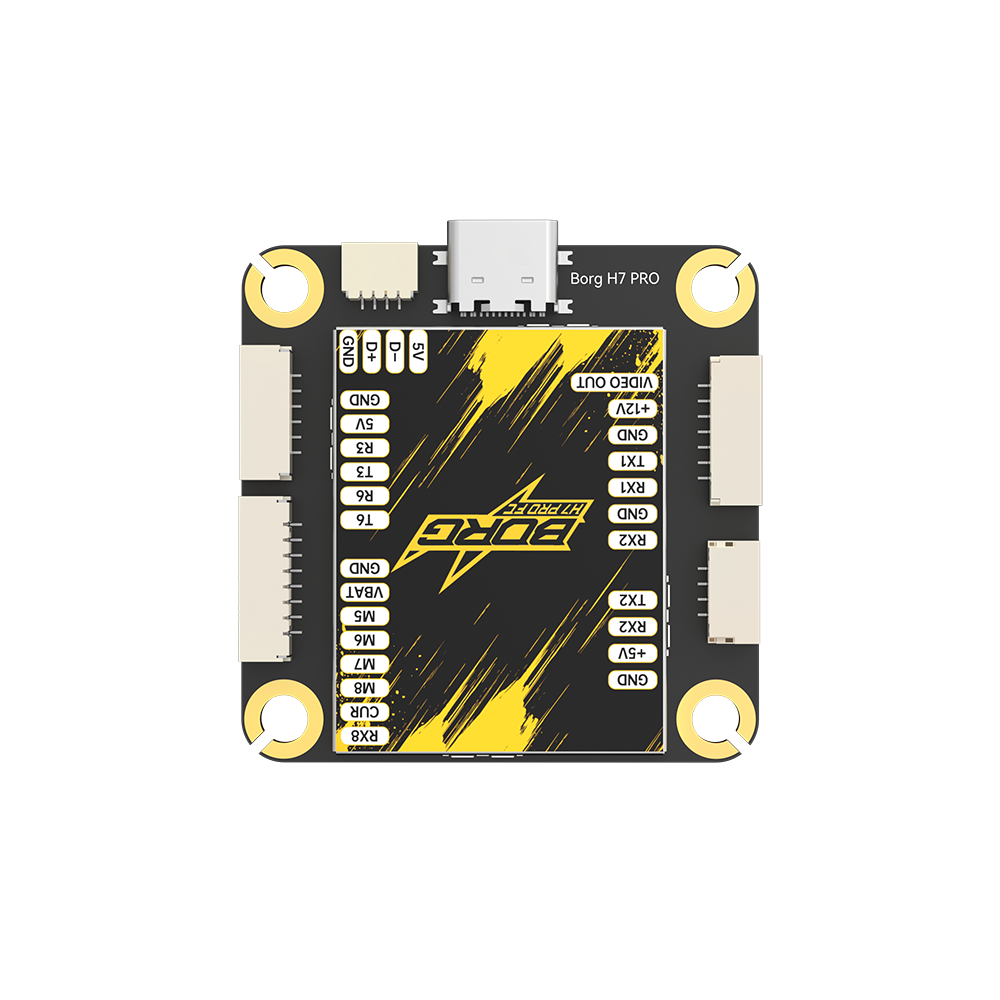

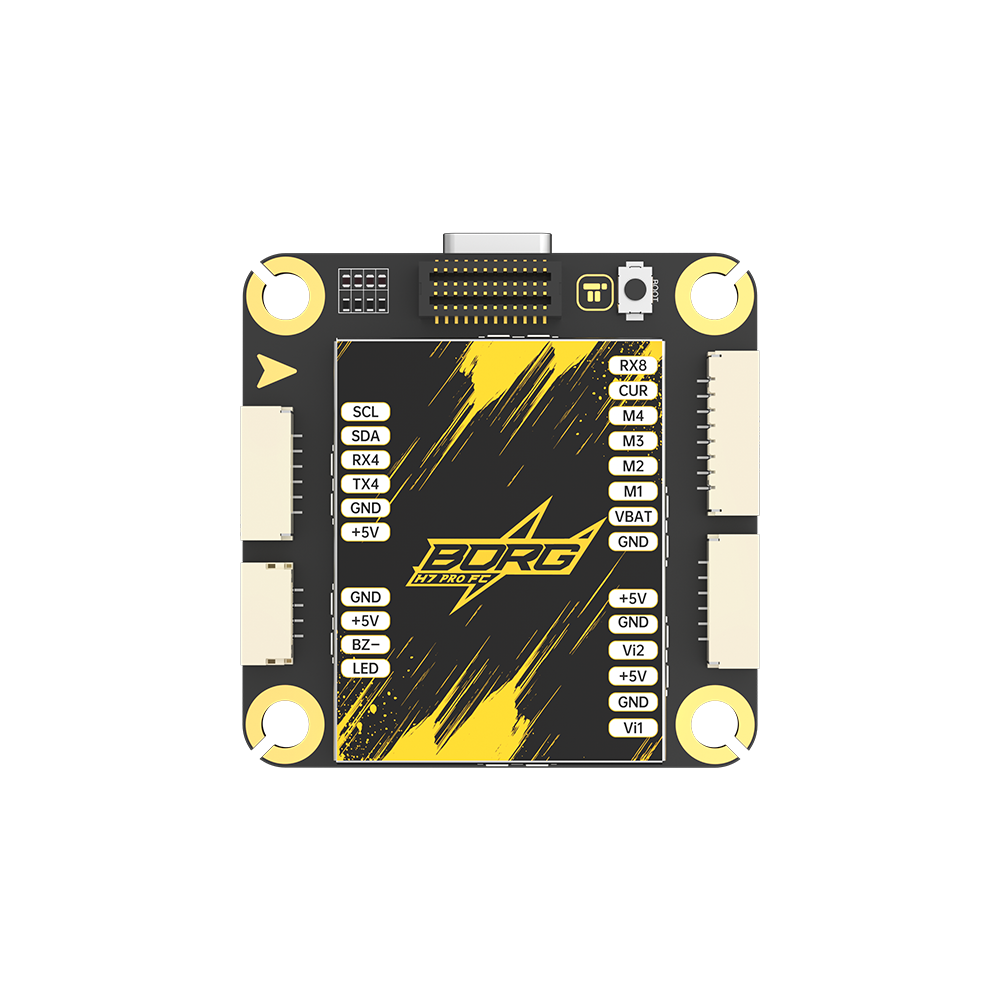

Borg H7 Pro Flight Controller

Borg H7 Pro Flight Controller is a high-performance H7 flight controller built for advanced FPV pilots. It supports 4-12S voltage input, is equipped with a stable onboard 12V BEC, flexible expandability, and a dual-camera switching function, delivering stronger computing power and faster response for reliable and customizable flight setups.

Supports 4-12S LiPo battery input

Built-in 12V BEC supplies stable power for VTX; VTX power can be switched via remote control

GH1.25 locking connectors for easy assembly and reliable connection

SD card Blackbox data logging, larger storage for more flight logs

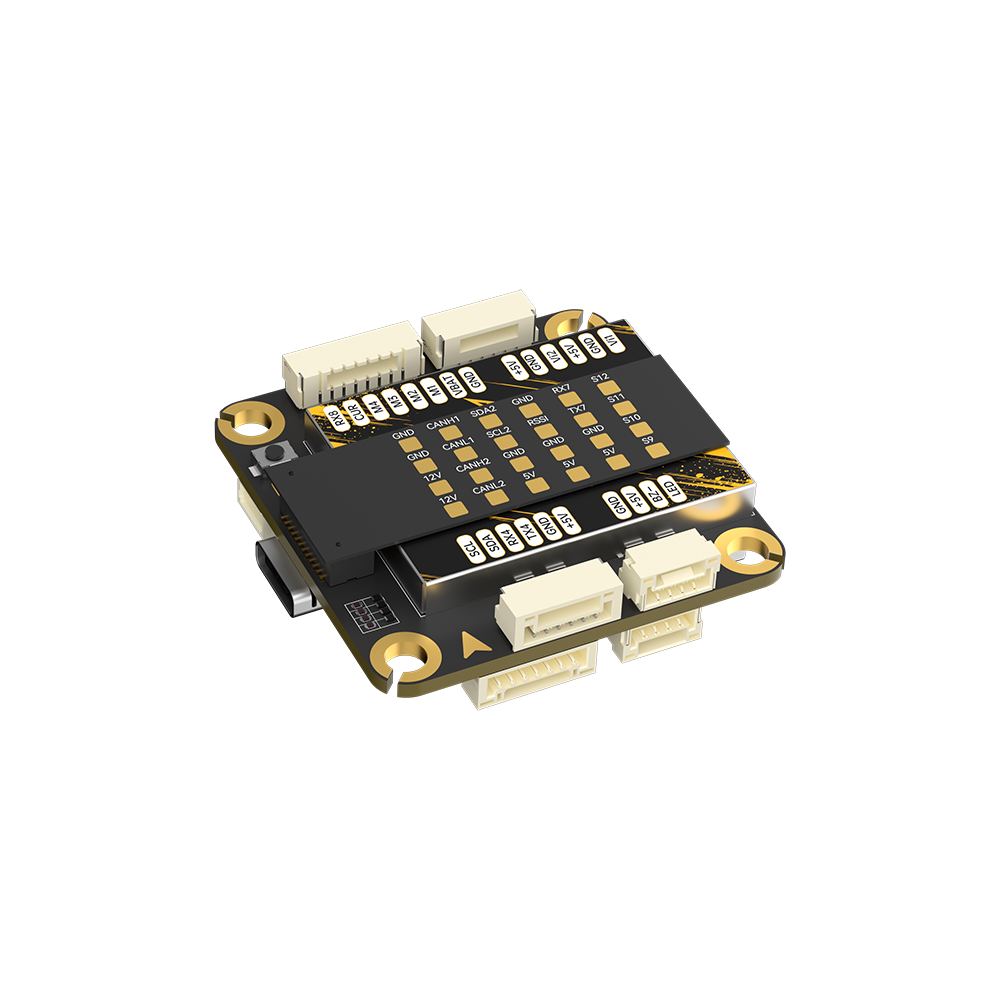

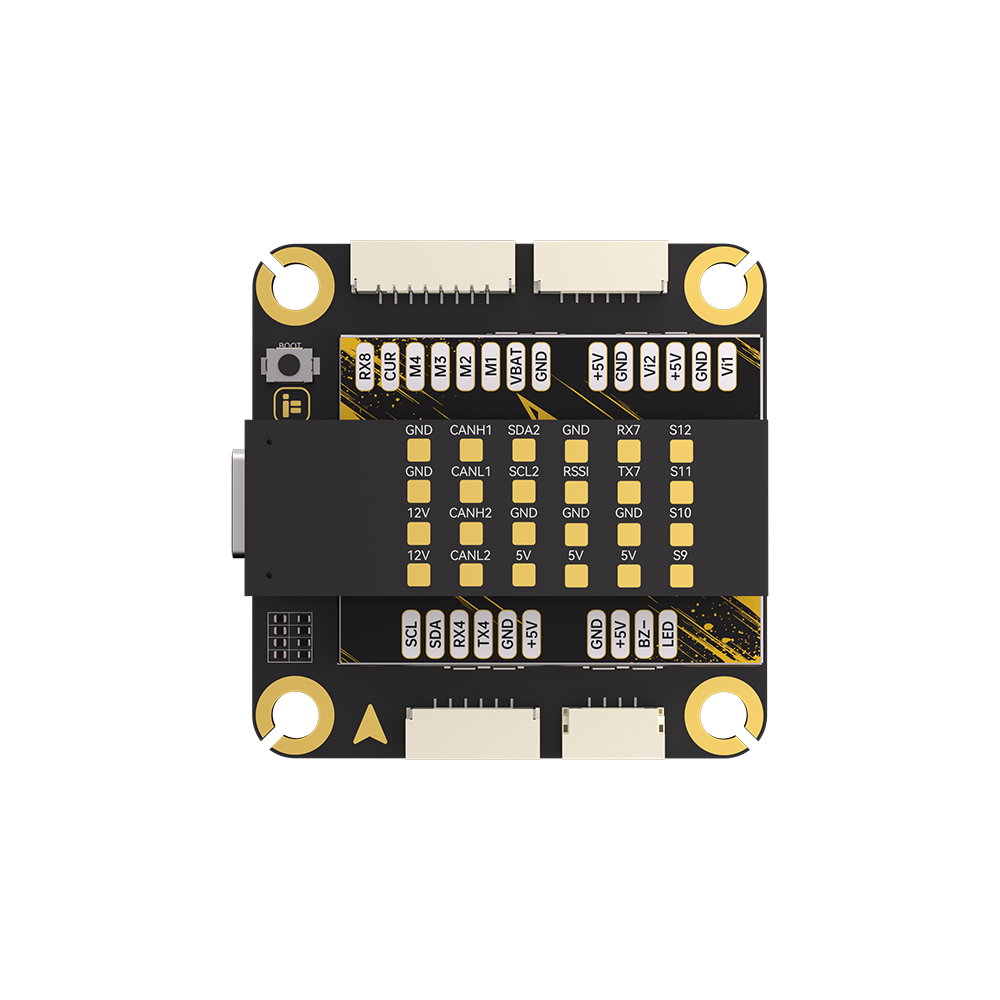

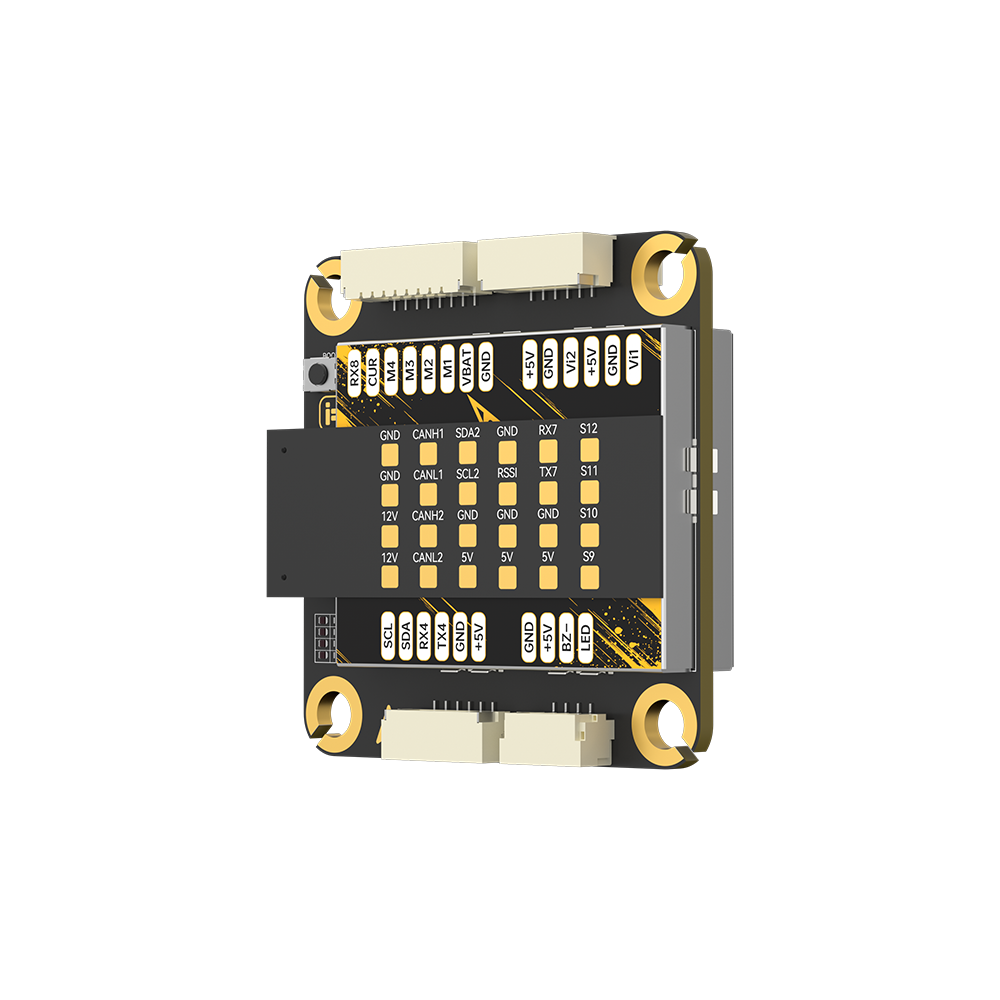

Detachable soldering expansion board, convenient for advanced users to connect more peripherals

Dual camera input supported, camera switchable by remote controller

H7 main processor provides boosted computing performance and faster response

Product Name: Borg H7 Pro Flight Controller

MCU: STM32H743VIT6

Gyro: ICM42688

Baro: SPA06-003

OSD: AT7456E

Input Voltage: 4S-12S; Support LIHV battery

Blackbox: 32 GB SD memory card

UARTS: 7

VTX protocol: DJIMSP / Smartaudio / IRC Tramp /  HDZero VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Mount pattern: 35*35mm/φ4

Dimensions: 42*42*11.3mm

Weight: 22g±1

BEC: 5V 2.5A,12V 2A (12V with VTX switch)

Betaflight Firmware target: IFLIGHT_BORG_H7

UART 1 for VTX HD / Analog

UART 2 for Receiver

UART 3 for GPS or other sensors that require a serial port

UART 4 for GPS

UART 6 for GPS or other sensors that require a serial port

UART 7 for GPS or other sensors that require a serial port

UART 8 for ESC Telemet

1 x Borg H7 Pro Flight Controller

1 x Cable set

iFlight product is for fun purposes only and does not support autonomous flight.

VTX_ON_OFF Mode Command

resource PINIO 1 D10

set pinio_config = 1,1,1,1

set pinio_box = 40,41,255,255

 set box_user_1_name = VTX_ON_OFF

aux 0 40 8 900 2100 0 0

save

Camera Switch Command

resource PINIO 2 D11

set pinio_config = 1,1,1,1

 set pinio_box = 40,41,255,255

set box_user_2_name =CAM_SW

aux 1 41 9 900 2100 0 0 save

save
