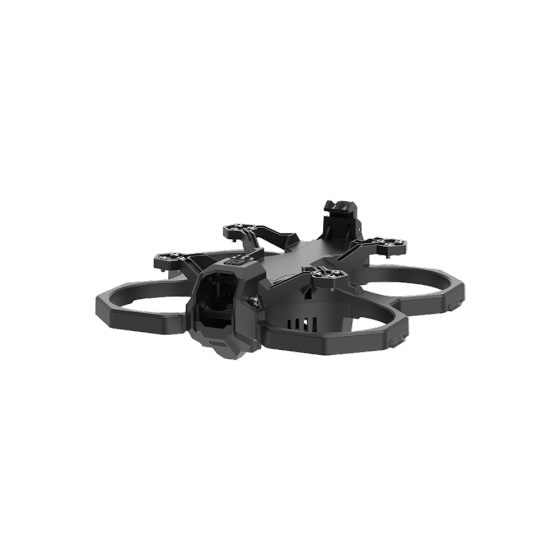

Defender 20 Frame Kit

Small But Mighty

The built-in 2inch propeller guards were designed to fly bold. You’ll experience a completely new creative freedom to fly whenever and wherever. The durable injection molded frame not only prevents damage to your motors or propellers but also protects the environment from small flight errors.

We’ve also added a special vibration-damped camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization.

Product Name: Defender 20 Frame Kit

Frame wheelbase: 97mm

Frame Dimension: L135*W136*H52 mm

Max Flight Stack Height: 20.6mm

Flight Stack Mounting: 25.5*25.5/Φ2mm

Motor Mounting: 9x9mm-φ2mm

VTX Mounting: 25.5*25.5/Φ1.6mm

Weight: 48g

1 x Defender 20 Frame Kit

1 x Screw Bag

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
