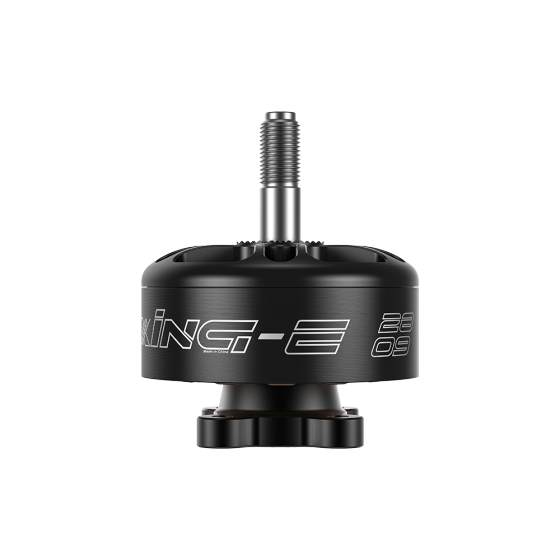

XING-E 2809 Cinelifter Motor
$31.99
Price drop reminder
In Stock
Optional
KV
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
$31.99
With Logo || 800KV
Changelog
May 5, 2024: The screws provided with the motor were changed from M3x10 screws to M3*11 screws.
Features
High-strength 5mm Steel shaft
N52H High-temperature magnets
19x19mm hole pattern
Single strand copper winding
Specifications
Model: XING-E 2809 Motor
KV: 800KV/1250KV
Weight(included wire): 61g/60.4g
Dimension: φ33.2*39.3mm
Interphase Resistance: 129.3mΩ/65mΩ
Input Volts: 24V
Peak Current: 25.63A/49.23A
Max Watt: 610.3W/1147.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.5mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding
Packing List
1 x XING-E 2809 Brushless Motor
4 x M3x11 screws
1 x M5 Flange Nut
