XING-E Pro 2306 4S 6S FPV Motor

AVAILABILITY: In Stock
$15.99

Available Options

Tags:


Description

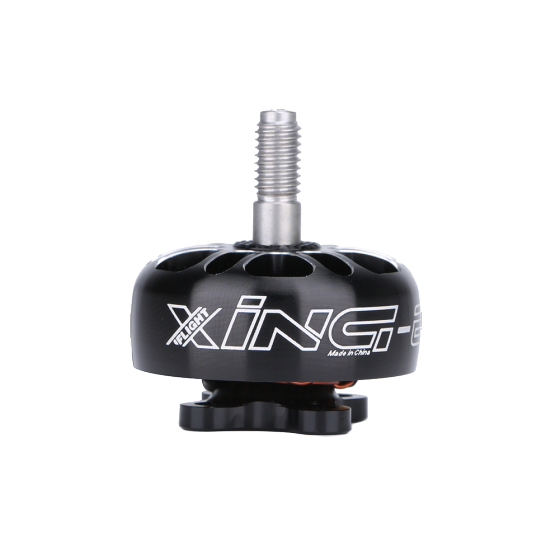

XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E Pro series affordable motors that are strong and durable. This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Features

High-strength 4mm Steel shaft

N52SH High-temperature magnets, NSK bearings

16x16mm hole pattern

Single strand copper winding

6061 CNC machined aluminum top and base parts

Hex bolt shaft set screw

Specifications

Model: XING-E Pro 2306 Motor

KV: 1750KV / 2450KV

Weight(included wire): 33.6g / 33.8g

Dimension: φ29*18.7mm

Interphase Resistance: 85.63mΩ / 55.6mΩ

Input Volts: 25.2V / 16.8V

Peak Current: 36.66A / 43.38A

Max Watt: 920.2W / 712.7W

Mounting Holes: 16*16 φ3mm

Rotor Specifications:  Unibell

Shaft Diameter: 4mm

Shaft Protruding Length: 13.5mm

Lead: 160mm/20AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ9*φ4*4

Winding: Single Strand copper winding

Packing List

1 x XING-E Pro 2306  motor

4 x M3*8 Screws

1 x M5 Flanged Nylon Insert Lock Nut
