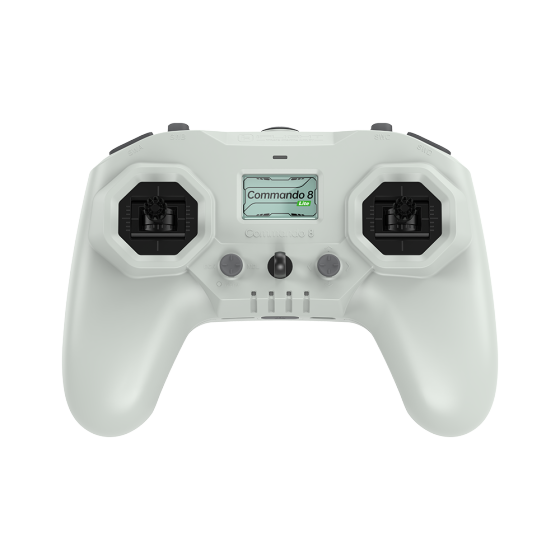

Commando 8 Lite Radio Transmitter
- Availability: In Stock
It's finally here, the iFlight Commando 8 with fully integrated iFlight ExpressLRS hardware! No additional external module necessary to run ELRS.
ExpressLRS TX modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
Checkout the official ExpressLRS website: https://www.expresslrs.org
Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating: https://opencollective.com/expresslrs
July 17, 2025: The product is upgraded to version 2.1, using LDS technology, and has more stable performance than V2.
Internal iFlight ExpressLRS (ELRS) transmitter
Temperature Compensated Crystal Oscillator ( TCXO for low packet loss, high frequency stability)
External antenna upgrade available for longer flight distances
Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
Several Gimbal Stick Ends available (stock 18mm)
Built-in SMD antenna and detachable gimbal provide convenience for portability
No display screen
Equipped with gimbals fine-tuning function, suitable for novices
Lighter than Commando 8, as low as 280g
A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
Achieves higher consistency in antenna gain, thereby improving device performance and stability.
Please use iFlight ELRS receivers coupled with our transmitter for maximum performance! We've probably achieved market's best crystal frequency stability at a very low frequency deviation. Please checkout this article for further information https://www.expresslrs.org/hardware/crystal-frequency-error/?h=crystal+frequency
Model: Albatross 5.8GHz RHCP SMA FPV Antenna
Interface: RHCP SMA
Frequency range: 5.3GHz-6GHz
Max Gain: 2.85dBi (5695MHz)
MIN Gain: 2.9dBi (5362MHz)
AVG Gain: 2.9dBi
MAX VSWR: 1.76（6000MHz）
MIN VSWR: 1.20（5300MHz）
AVG VSWR: 1.48
MAX radiation efficiency: 68.77%（5700MHz）
MIN radiation efficiency: 65.17%（5300MHz）
AVG radiation efficiency: 66.51%
Polarization: RHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 10.5±0.5g
Size: Total length: 130mm (±5mm)
The 2400MHz band have outstanding performance and long range capabilities.
There is only a 2.4GHz 100mW option, which works great in any region.
Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna
Interface: LHCP
Frequency range: 5.3GHz-6GHz
Max Gain: 3.05dBi (5621MHz)
MIN Gain: 2.88dBi (5436MHz)
AVG Gain: 2.92dBi
MAX VSWR: 1.74（5700MHz）
MIN VSWR: 1.19（5300MHz）
AVG VSWR: 1.5
MAX radiation efficiency: 68.89%（5500MHz）
MIN radiation efficiency: 64.51%（5300MHz）
AVG radiation efficiency: 66.82%
Polarization: LHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 10.5±0.5g
Size: Total length: 130mm(±2mm)
Single ELRS option includes 1x ELRS TX module pre-installed in the back of the radio.
2 x Albatross V2.1 5.8GHz 100mm Antenna
Note: FPV frame not included!
2x 5-axis menu buttons for Gimbal Trim
2x 2-position switches (can be used for arming; not momentary)
2x 3-position switches
Introducing the new and improved Albatross V2.1 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2.1 antenna.
Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP, and Goggles Antennas are LHCP, both sides need to match!
2.4GHz system: SX1280
ExpressLRS 2.4GHz // Output 100mW
Radio Channels: 8
Input: Mini High Precision Digital Hall Gimbals with NMB bearings
Gimbal Stick Ends: Stock length 18mm
Charging: Type-C 10W Quick Charge
Battery: Built-in 4000mAh 1S2P 18650 Battery
Charging Connector: Type-C
Weight: 275g
July 17, 2025: The LHCP antenna is upgraded to version 2.1, using LDS technology, and has more stable performance than V2.
Sept. 15, 2025: The RHCP antenna is upgraded to version 2.1, using LDS technology, and has more stable performance than V2.
1 x Commando8 Lite Radio Transmitter
A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
Achieves higher consistency in antenna gain, thereby improving device performance and stability.
1. Please use iFlight ELRS receivers coupled with our transmitter for maximum performance!
2. The remote controller does not include a receiver or charger, please purchase separately.
Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna
Interface: RHCP SMA
Frequency range: 5.3GHz-6GHz
Max Gain: 3.02dBi (5500MHz)
MIN Gain: 2.85dBi (5700MHz)
AVG Gain: 2.9dBi
MAX VSWR: 1.76（6000MHz）
MIN VSWR: 1.20（5300MHz）
AVG VSWR: 1.48
MAX radiation efficiency: 68.77%（5700MHz）
MIN radiation efficiency: 65.17%（5300MHz）
AVG radiation efficiency: 66.51%
Polarization: RHCP
Cross polarization suppression: -25dB
Axial Ratio：≤3
Cable: RG141
Weight: 8.5g(RHCP SMA) / 12.2g(RHCP RP-SMA)
Size: Total length: 90mm(±2mm), cable length:60mm
