Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 5 V5 is the ultimate choice for drone enthusiasts.
Mar. 11, 2025: Frame Kit updated to be compatible with DJI O4 Air Unit and DJI O4 Air Unit Pro.
Supports up to 5.2" Props
AOS X-Cell Anti-Vibration Technology
Three 30.5x30.5, 25.5x25.5, or 20x20 mm stacks
155° FOV no props in view
Fully DJI O3 compatible (soft mount + ND filters)
Supports 19-20mm cameras (hard or soft mounted)
Reinforced 7075 Aluminium Camera Cage
Supports Lengthwise or Toilet Tank battery mounting
⌀16 - ⌀19mm motor mounting (supports all standard 5" motors)
28x28mm M3 GoPro Mounting Pattern
32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

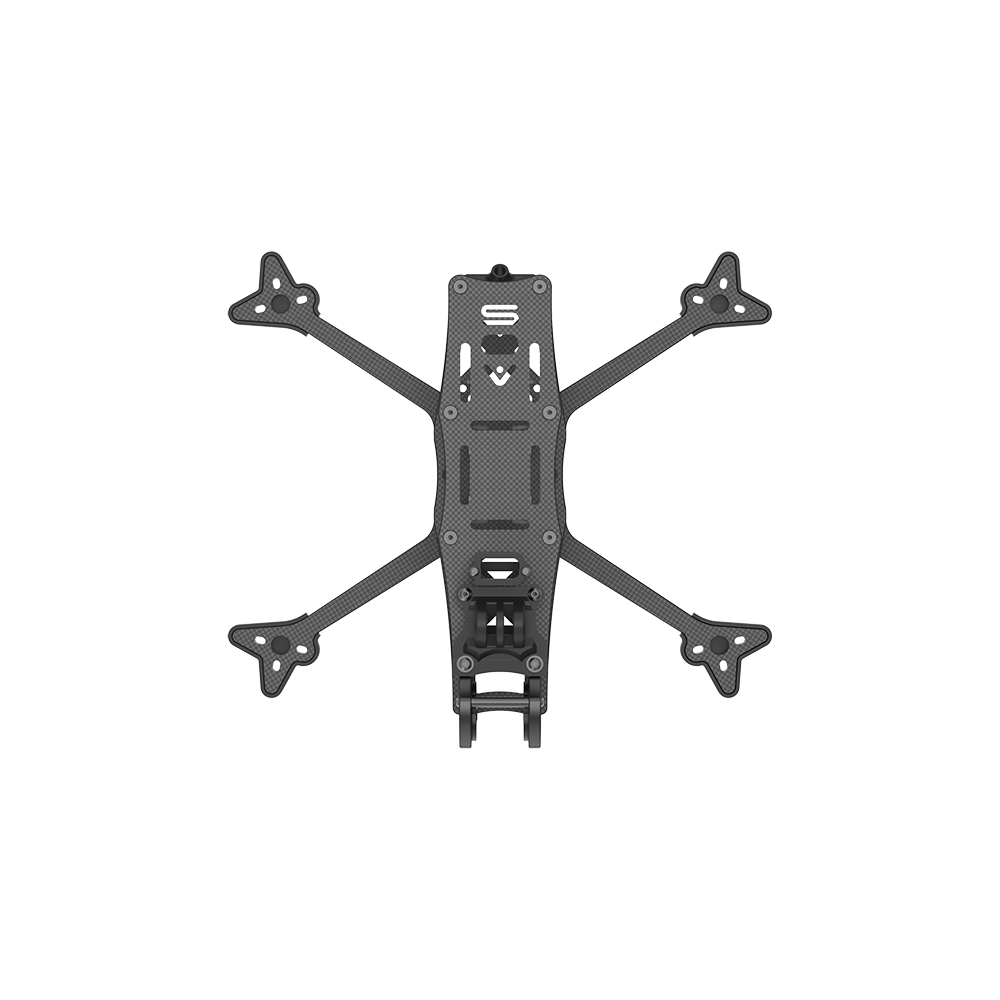

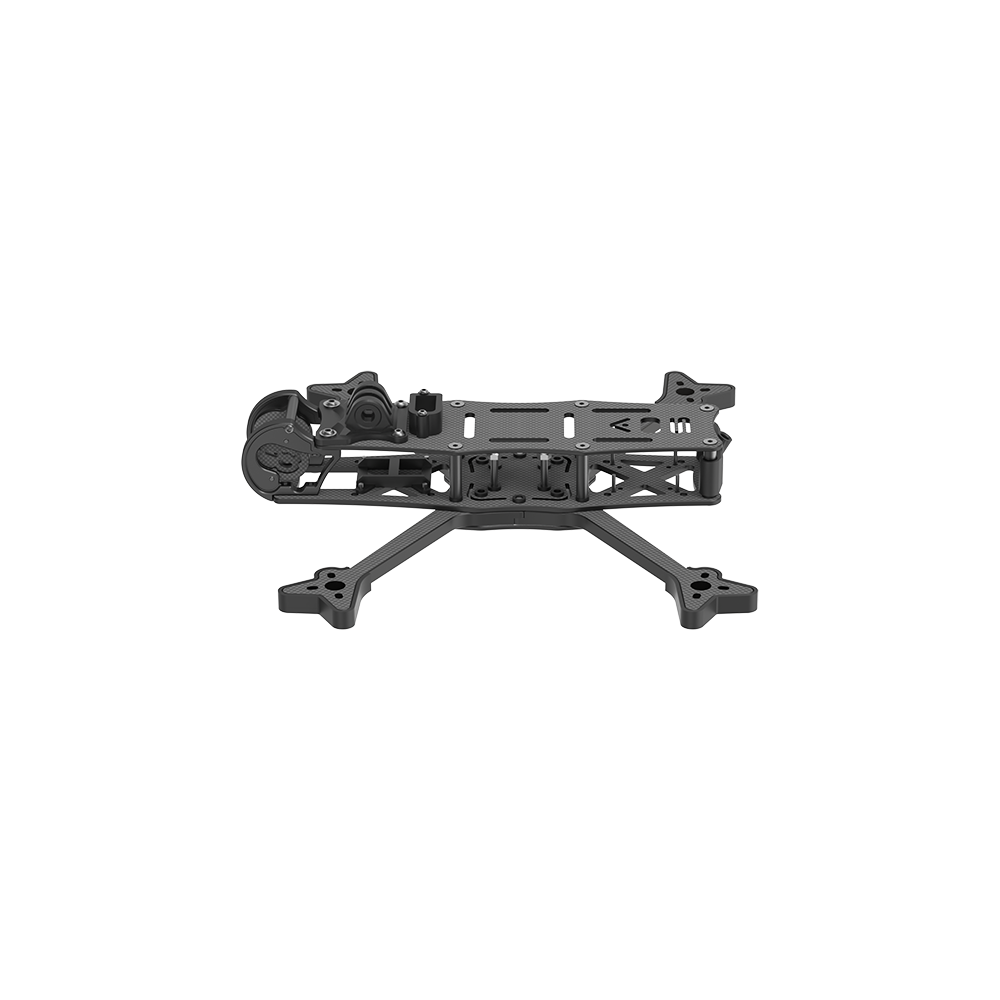

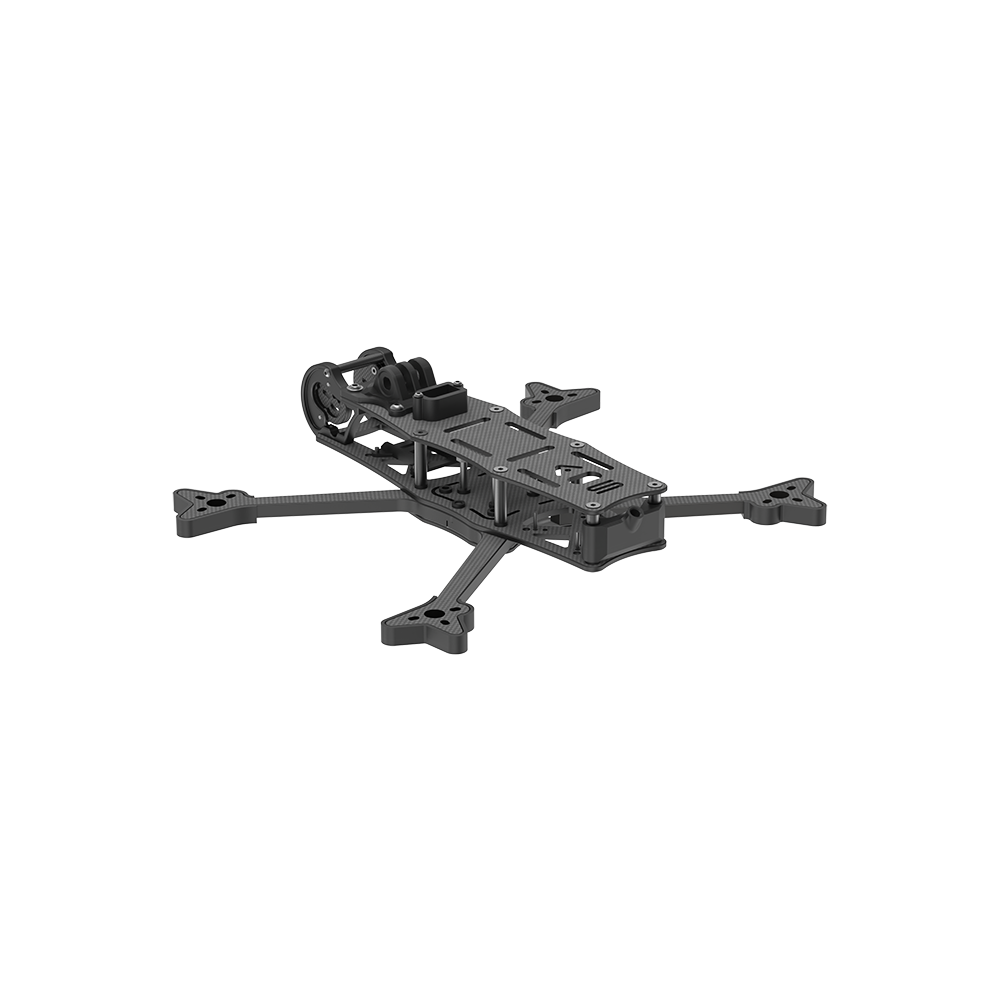

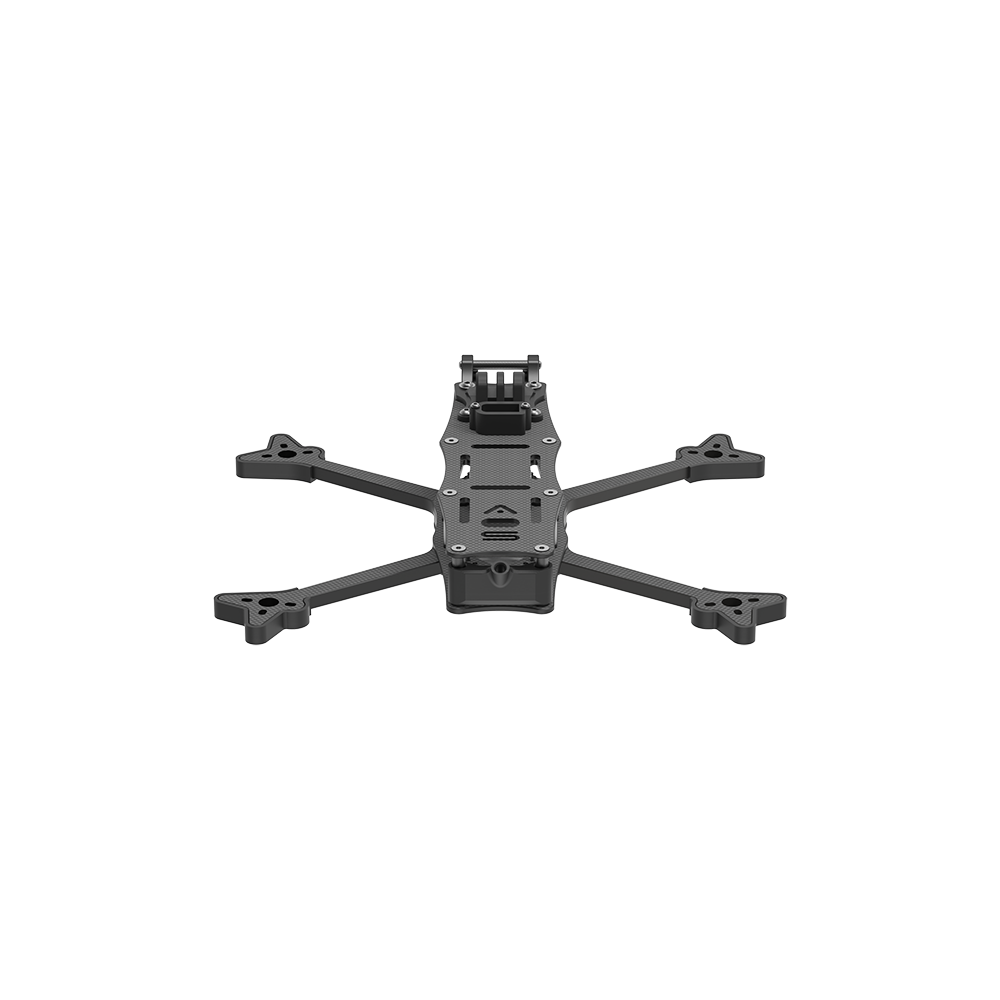

Product Name: AOS 5 V5 Frame Kit
Frame wheelbase: 228mm
Frame Dimension: L180*W140*H34 mm
Arm Thickness: 6mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 2.5mm
Max Flight Stack Height: 20mm
Max VTX Height: 20mm
Motor Mounting: 19x19-φ3mm/16x16-φ3mm
Flight Stack Mounting: 20*20 Φ3mm / 25.5*25.5 Φ2mm / 30.5*30.5 Φ3mm
VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm
Weight: 150g
Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit/DJI O4 Air Unit Pro
1 x AOS 5 V5 Frame Kit
1 x TPU Parts
1 x Screw Bag
2 x Battery Strap
2 x Battery pads
If you install the ESC in this frame kit and it does not fit properly due to the capacitor, please remove the capacitor on the ESC for normal installation and connect an extra capacitor (a 50V 470uf capacitor is recommended).
Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
