Nazgul XL5 ECO V1.1 6S

Due to uncontrollable factors such as increased shipping costs, we regret to inform you that the price of the Nazgul DC5/XL5 ECO BNF will be raised by $20. We apologize for any inconvenience and appreciate your understanding.

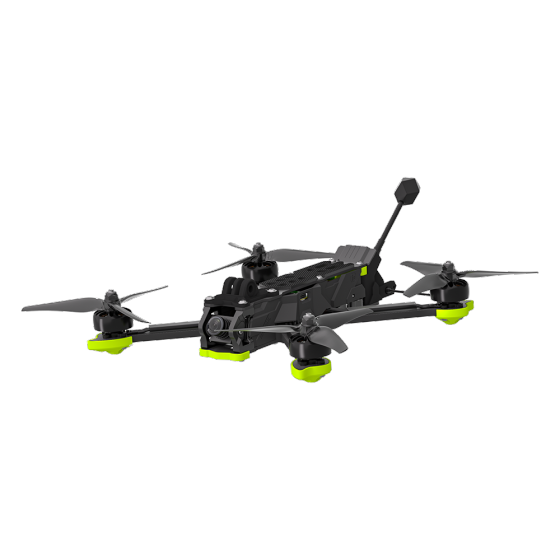

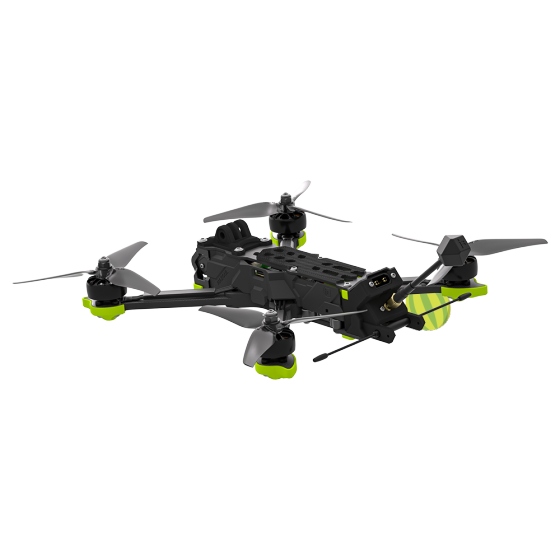

Introducing Nazgul XL5 ECO - the 5-inch standard Freestyle drone that redefines performance and value. Featuring an ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 2-6S 55A ESC, the Nazgul XL5 ECO delivers unparalleled performance and reliability. The carbon fiber with aluminum camera mount offers lightweight durability, while the included GoPro mount provides versatility for capturing your epic freestyle flights. Take your flying experience to new heights with Nazgul XL5 ECO.

June 28, 2024: Battery Plug updated to fixed form. The drone upgraded to V1.1.

Sept. 10, 2024: Product upgrade, the side panels will be installed by default.

Lightweight and Durable

A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.

Anti-Spark Filter

Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Enhance user experience and streamline maintenance

Equipped with a built-in buzzer and receiver mount, convenient maintenance and adjustments to the receiver.

DIY customized space

Create your own personalized space with the flexibility of standard 20x20 and 30.5x30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.

Product Name: Nazgul XL5 ECO V1.1 6S Analog

Geometry: True-X

FC: BLITZ ATF435 Flight Controller

ESC: BLITZ E55S 4-IN-1 ESC

Video Transmission: BLITZ 1.6W VTX

Frame: 245mm wheelbase

Motor: XING-E Pro 2207 1800KV motors

Prop: Nazgul F5 propellers

Weight: 427g

Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)

Dimensions (L×W×H): 173×173×34±2 mm

Diagonal Distance: 245mm

Max Speed: 190 km/h (Manual Mode)

Maximum Takeoff Altitude: 3200 m

Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)

Max Wind Speed Resistance: Level 7

Operating Temperature Range：-10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)

Product Name: BLITZ 5.8G 1.6W VTX

Output Power: PIT/25mW/400mW/800mW/1600mW

Input Volts: 7-34V(2-8S)

Working Current: 25.2V，≤pit @20mA，≤25mw@65mA，≤400mw@130mA，≤800mw@150mA，≤1600mw@250mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 30.5×30.5/Φ3mm

Weight: 18.9g (Antenna not included)

Dimensions: 38.5×38.5mm

1 x Nazgul XL5 ECO 6S V1.1 Analog BNF

1 x Antennas

2 x Battery pads

2 x Nazgul F5 Prop(Pairs)

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
