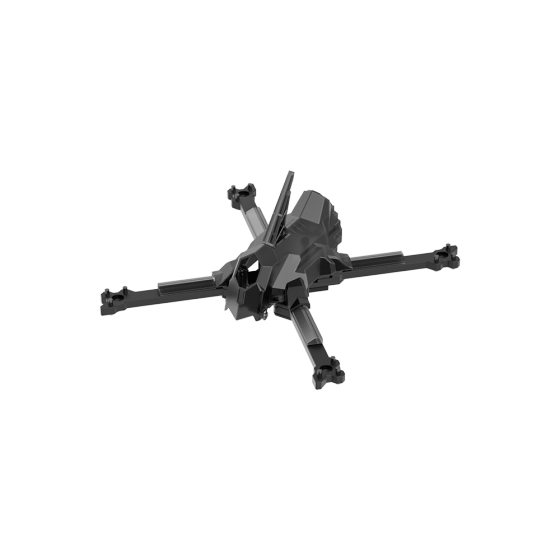

Mach R5 Sport Race Frame Kit

The Mach R5 Sport aims to provide racing pilots with a high-quality finished FPV frame that allows for DIY customization. Utilizing carbon plates and plastic components, not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability.

June 22, 2024: Upper Plate upgrade for Mach R5 Sport Frame Kit.

Product Name: Mach R5 Sport Race Frame Kit

Wheelbase: 210mm(Canopy Ver./ Lite Ver.) / 190mm(Ultra ver.)

Frame Dimension: 148*148*51mm(Canopy ver.) / 148*148*37mm(Lite ver.) / 148*148*42mm(Ultra ver.)

Top Plate: 2mm (Lite ver./Ultra ver.)

Arm Thickness: 5.5mm(Canopy Ver./ Lite Ver.) / 5mm(Ultra ver.)

Bottom Plate Thickness: 2mm

Upper Plate Thickness: 4mm(Canopy Ver./ Lite Ver.) / 2mm(Ultra ver.)

Max Flight Stack Height: 25mm(Canopy Ver./ Lite Ver.) / 23mm(Ultra ver.)

Max VTX Height: 25mm(Canopy Ver./ Lite Ver.) / 23mm(Ultra ver.)

FC Mounting：20*20/Φ3 mm

Motor Mounting：16*16/Φ3mm

VTX Mounting：20*20/Φ3 mm

Weight: 107g (Canopy Ver.)/128g (Lite ver.)/ 92g(Ultra ver.)

Recommended motor: 22**/23**/24**/25** series motor

BLITZ Mini F722 Flight Controller

BLITZ E55R 4-IN-1 2-6S 55A ESC

R5 2207 motors

1 x Mach R5 Sport Frame Kit (Non-assembled)

2 x Battery straps (20*250mm)

1 x TPU Set

2 x  Anti-slip Battery Pads

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
