XING 1504 FPV Motor - Black
$15.80
$16.99
Price drop reminder
- Availability: In Stock
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~

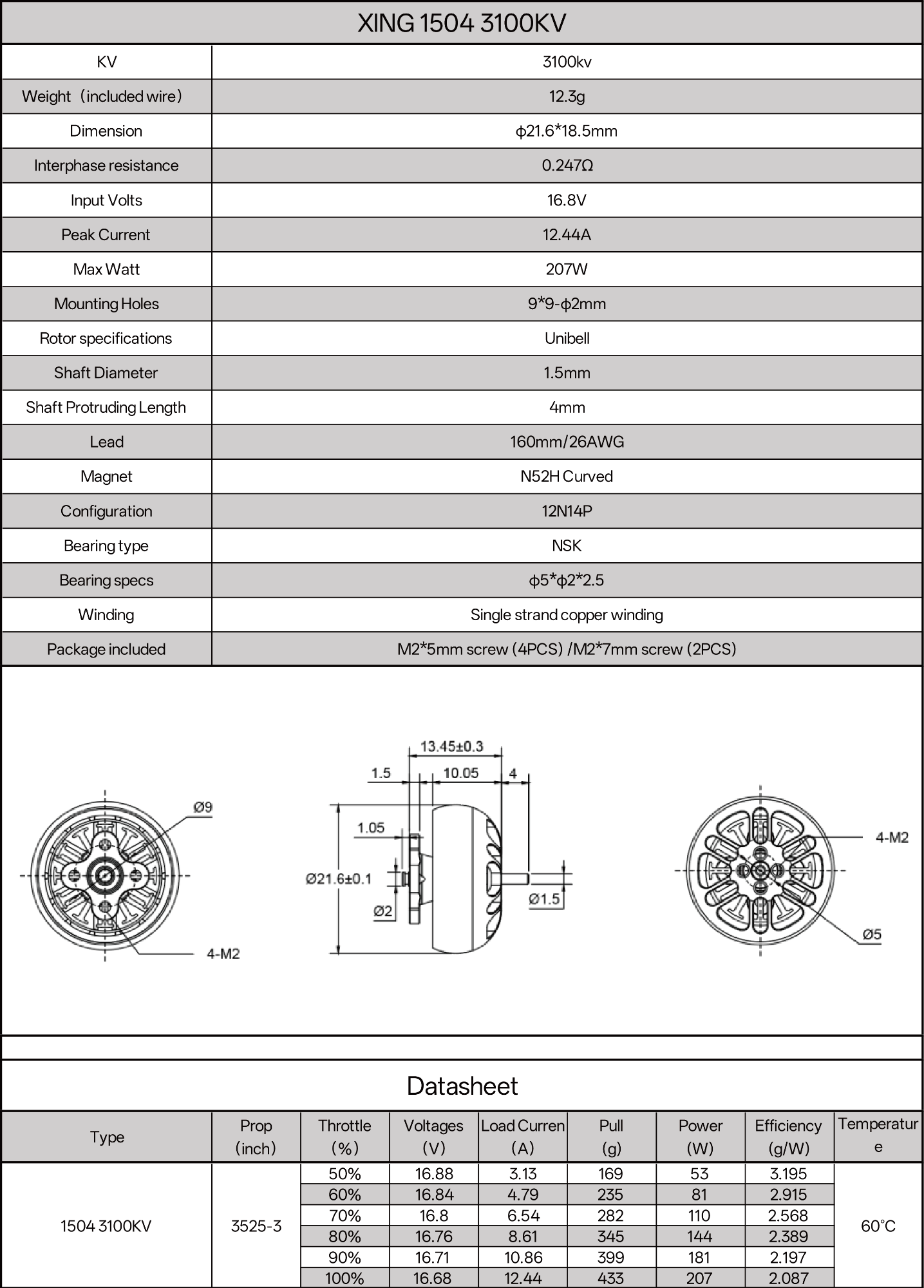

Specifications
Model: XING 1504 Black Motor
KV: 3100KV
Weight(included wire): 12.3g
Dimension: φ21.6*18.5mm
Interphase Resistance: 247mΩ
Input Volts: 16.8V
Peak Current: 12.44A
Max Watt: 207W
Mounting Holes: 9*9 φ2mm
Rotor Specifications: Unibell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 4.0mm
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ5*φ2*2.5
Winding: Single Strand copper winding
Packing List
1 x XING 1504 3100KV Motor
4 x M2*5 screws
2 x M2*7 screws
