XING-E 4320 Cinelifter Motor
$55.99
Price drop reminder
- Availability: In Stock
If the price of the product is reduced within 30 days, we will notify you via email, SMS and mobile client~
If the goods arrive within 30 days, we will notify you via email, SMS and mobile client~
Description

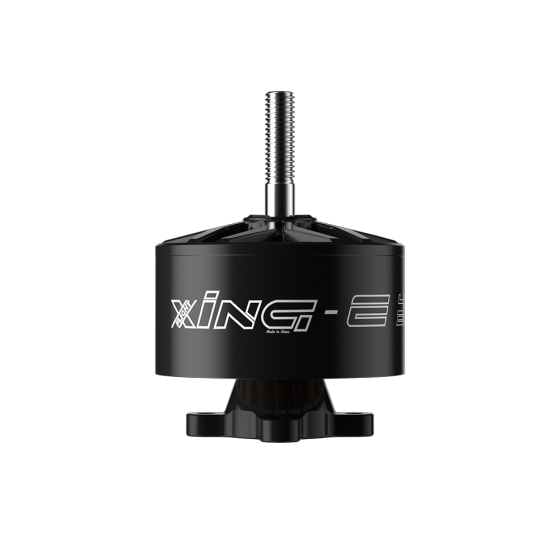

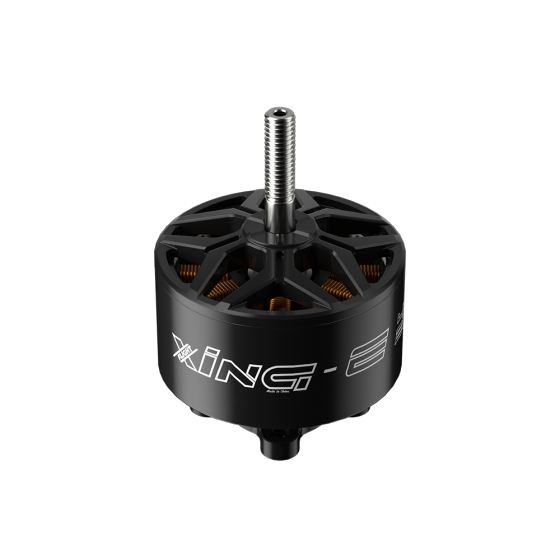

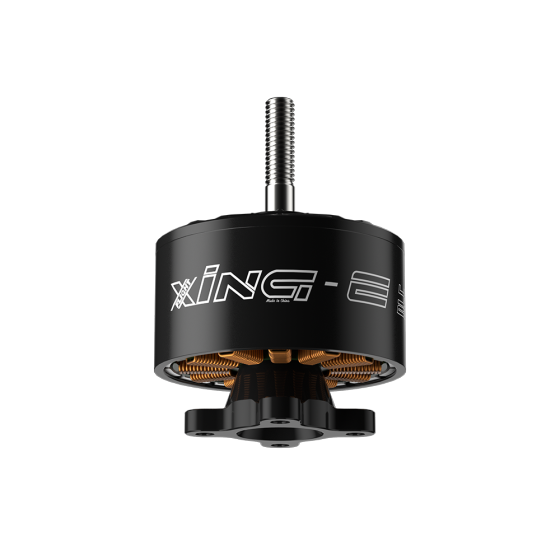

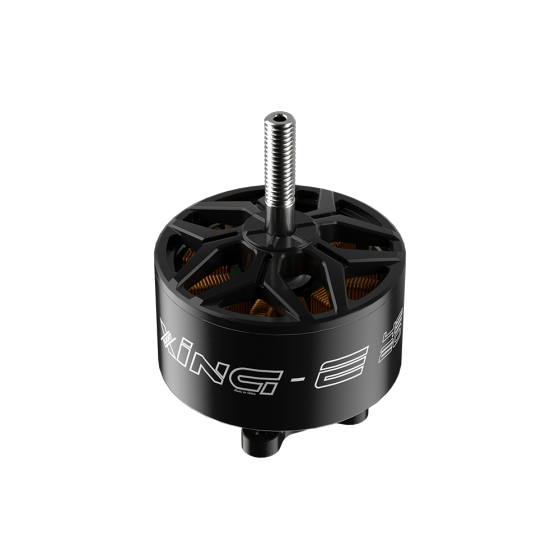

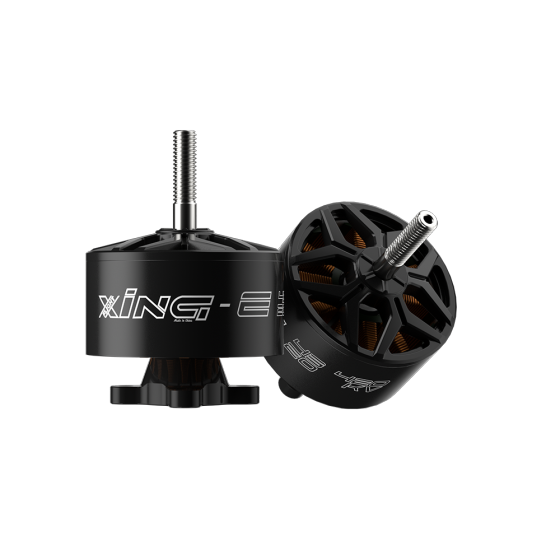

XING‑E 4320 420KV black motor is a high-performance motor engineered for reliability and stable power. Designed specifically for the upcoming XL15, it's the ideal choice for professional X‑class quadcopters.

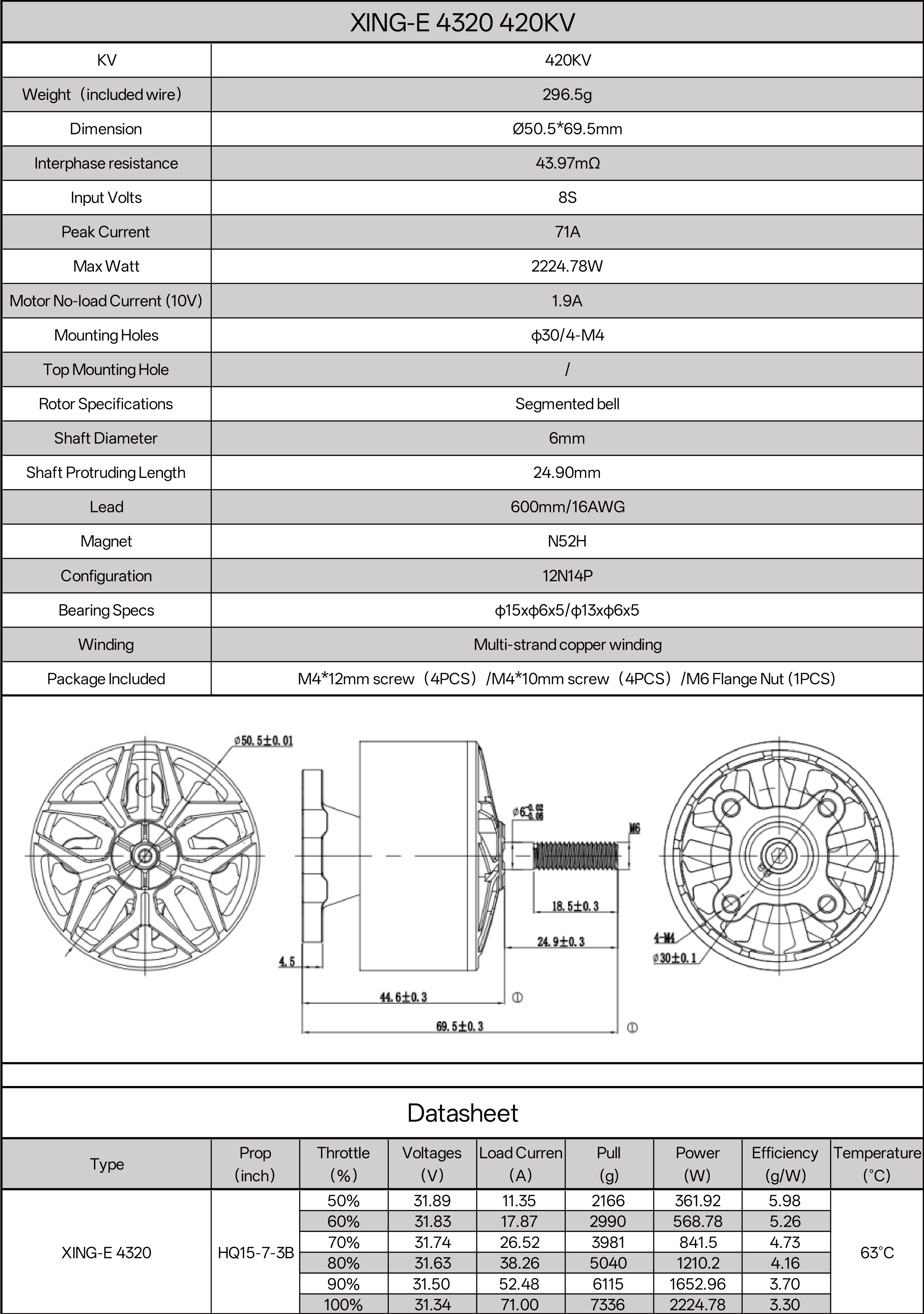

Specifications
Model: XING-E 4320 Motor
KV: 420KV
Weight(including wire): 296.5g
Dimension: φ50.5*69.5mm
Interphase Resistance: 43.97mΩ
Input Volts: 8S
Peak Current: 71A
Max Watt: 2224.78W
Mounting Holes: φ30-M4
Rotor Specifications: Segmented Bell
Shaft Diameter: 6mm
Shaft Protruding Length: 24.9mm
Lead: 600mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ15*φ6*5/φ13*φ6*5
Winding: Multi-strand copper winding
Packing List
1 x XING2 4320 420KV Motor
4 x M4x12 Screws
4 x M4*10 Screws
1 x M6 Flange Nut
