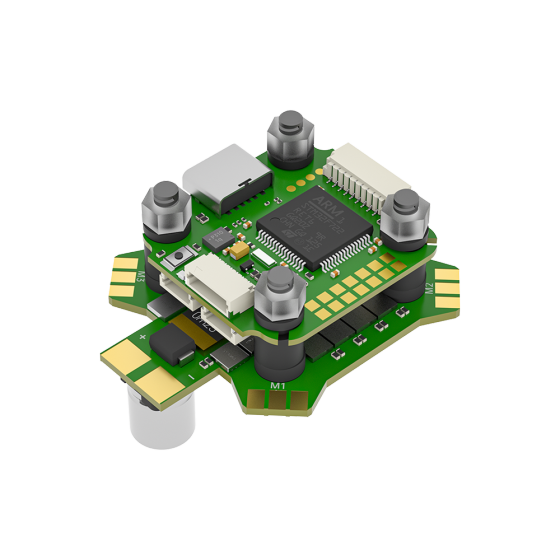

BLITZ Mini F7 Stack (E55S Mini 4-IN-1ESC)

Improved circuit design, better components and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456

Flash: 8MB (Blackbox flash)

UARTS: 6

I2C serial: SDA/SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 20x20 mm / φ4

Dimensions: 30.5x27 mm

Weight: 5g

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

Product Name: BLITZ Mini E55S 4-IN-1 ESC

Mounting Holes: 20*20mm/Φ4mm

Weight: 11.3g

Supports 2-6S Lipo input

MCU： BB21

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/OneShot etc.

Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-50 - Bluejay, 0.16, 24kHz

1 x BLITZ Mini F7 V1.2 Flight Controller

1 x BLITZ Mini E55S 4-IN-1 2-6S ESC

1 x silicon grommets

1 x wire harness for F7 Flight controller

iFlight product is for fun purposes only and does not support autonomous flight.
