Chimera CX10 ECO 6S
In The Box

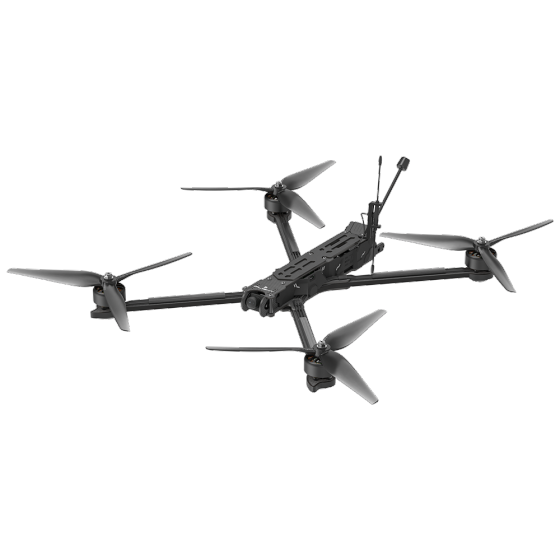

It's proud to announce the release of the Chimera CX10 ECO analog BNF, CX10 6S Analog is a 10" BNF quadcopter that comes with the BLITZ Whoop 1.6W/2.5W VTX Video Transmission System, and HQ 10" 3-Blade propellers. The CX10 has been pre-tuned and set up with everything you need; all you need to do is bind-and-fly! Loaded with lots of power, it comes with the XING-E 3314motors, BLITZ F7 Flight Controller, and the BLITZ E55 4-IN-1 ESC, which make this quad a must-have!
Full 3K Carbon Fiber airframe
Big size XING-E 3314 with extreme lift and flight performance
Latest Lightweight Side Panels for Maximum Protection
Not included in BNF ECO version:
Heatsink for DJI O3 Air Unit
Dual 5.8G VTX Antenna TPU mount
Anti Spark Filter
TPU Set (GPS mount/ Buzzer mount/GoPro mount, etc.）
LED Board with LED Strips
Jan. 13, 2024: The motor was changed from XING-E 3110 900KV motor to XING-E 3314 900KV motor.
May 8, 2024: The Albatross antenna is available in two versions, and will be shipped randomly.
June 8, 2026: Flight controller changed from BLITZ ATF435 FC to BLITZ F7 V1.2 FC, and ESC changed from LITZ E55S 4-IN-1 2-6S 55A ESC to BLITZ E55 4-IN-1 ESC.
Product Name: Chimera CX10 ECO Analog BNF
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 5.8G 1.6W VTX / BLITZ Whoop 5.8G 2.5W VTX
Frame: 452mm wheelbase
Motor: XING-E 3314 900KV motors
Prop: HQ 10X4.5X3 propellers
Weight: 810g (Without Battery)
Takeoff Weight: Approx. 1706g ±5g (With 6S 8000mAh battery)
Dimensions (L×W×H)：338x299x34mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 20 min (with 21700 6S2P 8000mAh)
Payload: 1.5-2.5kg
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Product Name: BLITZ Whoop 5.8G 1.6W VTX
Output Power: PIT/25mW/400mW/800mW/1600mW
Input Volts: 12V
Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: IPEX
Mounting Hole: 25*25/φ1.6mm
Weight: 16.5g (Antenna not included)
Dimensions: 37*31.5*10mm
Product Name: BLITZ Whoop 5.8G 2.5W VTX
Output Power: PIT/25mW/400mW/1000mW/2500mW
Input Volts: 7-34V
Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 25*25/φ1.6mm
Weight: 32g
Dimensions: 50*30*16mm
1 x Chimera CX10 ECO 6S Analog BNF
1 x Battery pad
1 x Antenna
2 x Propellers(Pair)
2 x Battery strap
1. iFlight product is for fun purposes only and does not support autonomous flight.
2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1) Any military combat purpose or military combat related use;
(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
For more specific content, please check: https://shop.iflight.com/Export-Policy-info
4. The BNF does not include the remote control, goggles, GoPro, battery, or charger, which need to be purchased separately for compatible use.
1. ECO are economical versions, which are quite different from the ordinary versions. They use quick-release frames.
2. The ECO version doesn't come with GPS, or Anti Spark Filter and Heatsink by default. Customers can choose to pre-install GPS.
--------iFlight Support Team
Due to different designs, the frame parts of the two are incompatible. ——iFlight Support Team
1. Turn on the GPS rescue mode through the remote control. After the drone flies back, flip the switch to turn off the mode.
2. If the drone has automatically triggered the GPS rescue and you want to take over manually after flying back, you need to toggle any joystick on the left or right to take over, instead of flipping the GPS rescue switch.

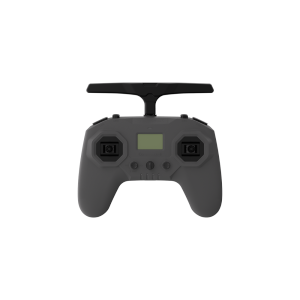

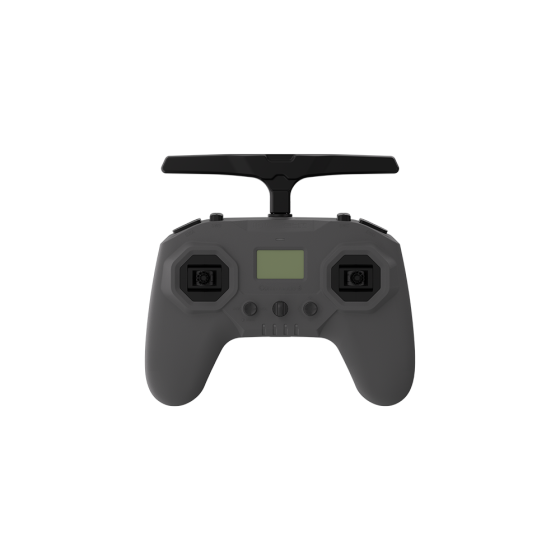

This receiver is compatible with remote controllers which have ELRS 2.4G/868/900MHz hardware, not only compatible with our commando8 radio.
——iFlight Support Team
