Specifications

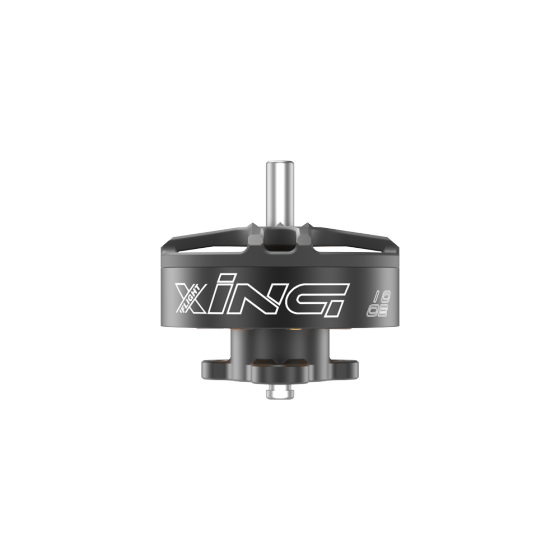

Model: XING 1002 Black Motor

KV: 19000KV/22000KV

Weight(included wire): 2.4g

Dimension: φ12.5*12.5mm

Interphase Resistance: 86mΩ/70mΩ

Input Volts: 4V

Peak Current: 5.3A/ 7.8A

Max Watt: 19W/ 28W

Mounting Holes: 3*3 φ1.4mm

Rotor Specifications: Segmented bell

Shaft Diameter: 1.5mm

Shaft Protruding Length: 3.5mm

Lead: 50mm/28AWG/SH1.25

Magnet: N52H Curved

Configuration: 9N12P

Bearing Type: NSK

Bearing Specification: φ4*φ2*1.5

Winding: Single Strand copper winding

Packing List

1 x XING 1002 FPV Motor(KV is optional)

4 x M1.4*4mm screws
