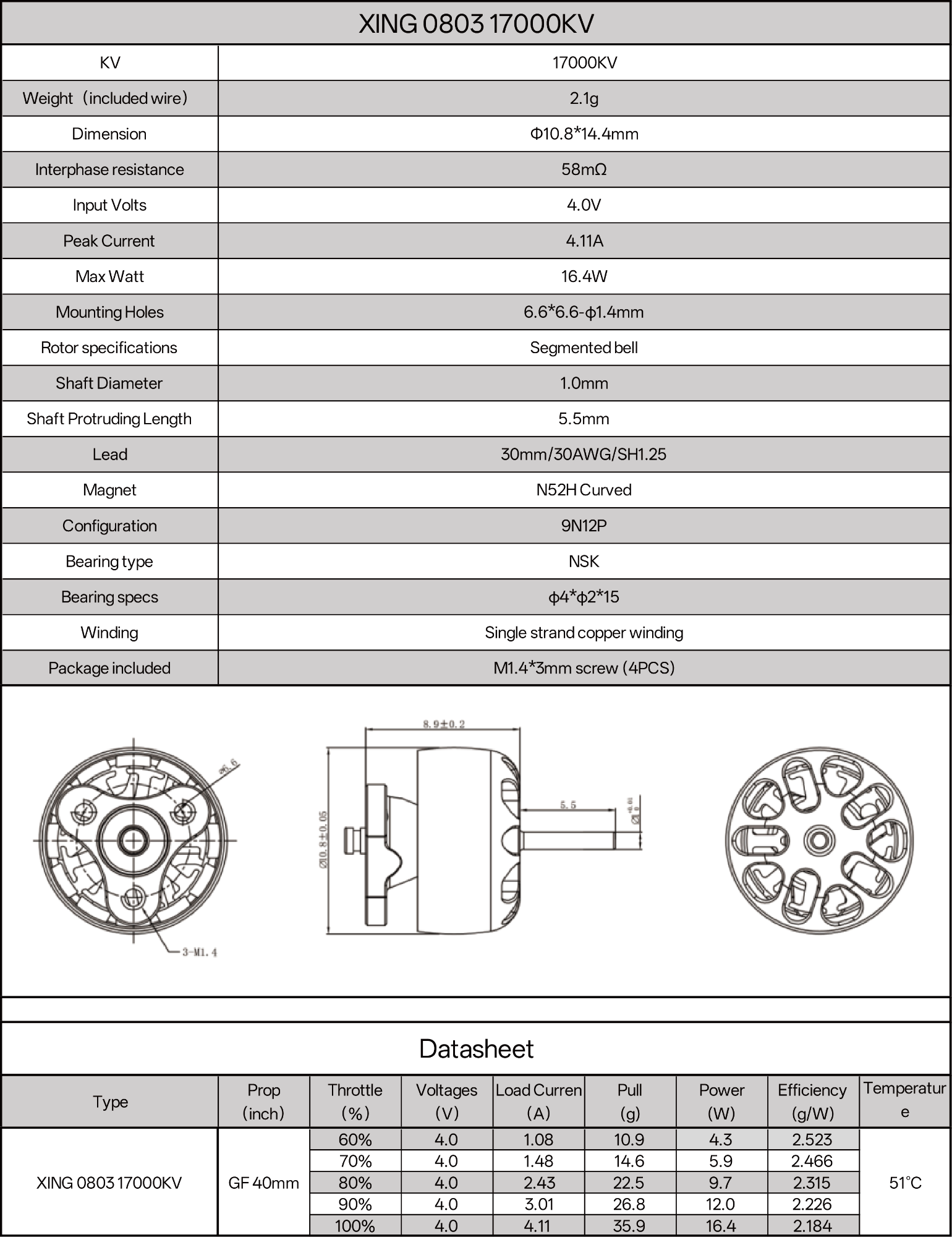

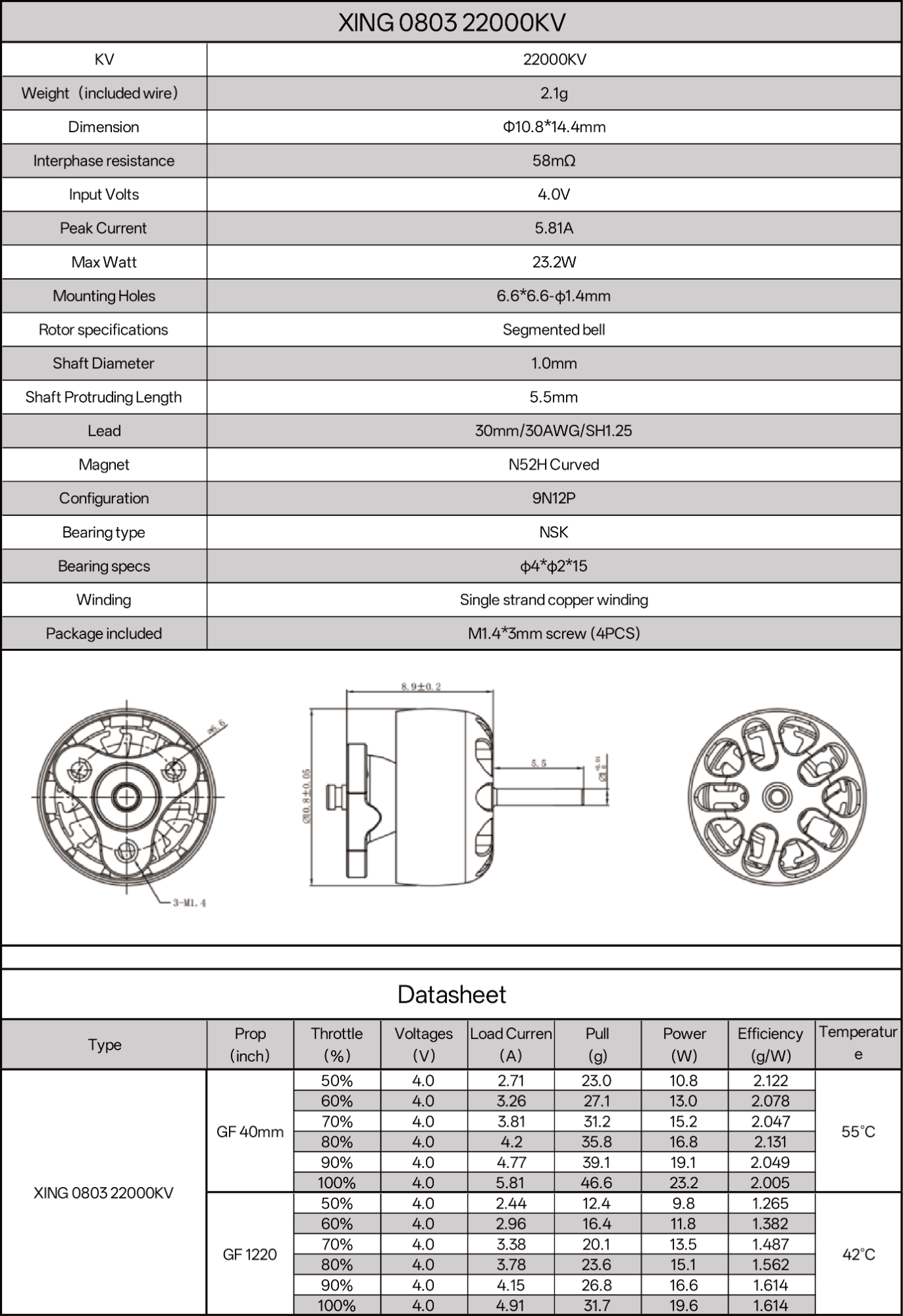

Specifications
Model: XING NANO 0803
KV: 17000KV/22000KV
Input Voltage: 1S
Dimension: Ф10.9*9mm/Ф10.8*8.9mm
Weight(included wire): 2.1g
Interphase Resistance: 58mΩ
Peak Current: 4.11A/5.81A
Max Watt: 16.4W/23.2W
Mounting Holes: 6*6 φ1.4mm
Rotor Specifications: Segmented Bell
Shaft Diameter: 1mm
Shaft Protruding Length: 5.5mm
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NSK
Winding: Single Strand copper winding
Packing List
1X XING NANO 0803 Brushless Motor
1X Motor Screw Pack
