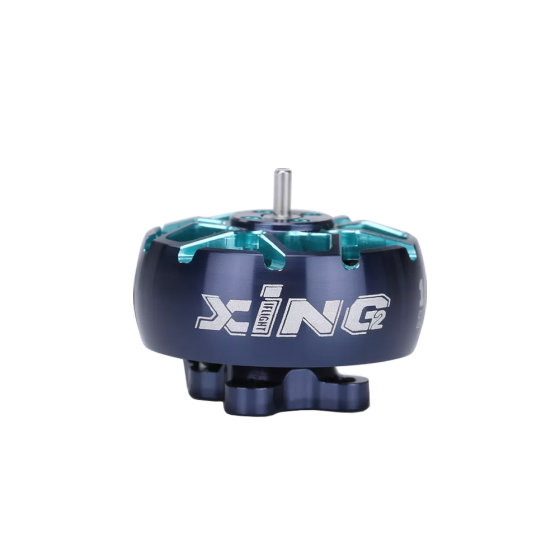

XING2 1806 FPV Motor 1.5mm Shaft

AVAILABILITY: In Stock
$15.99

Available Options

Tags:
Description

Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these years, but now it's time to set a new standard again! We're finally ready to announce our predecessor the XING2!

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New center slotted N52H curved arc magnets were introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

Due to the high quality materials used and the durable joint of bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causing more efficiency and higher power!

Features

1.5mm outer titanium alloy shaft

Japanese NSK φ9*φ4*4mm bearings

N52H curved magnets

Motor wires protected

Dynamically balanced

Specifications

Model: XING2 1806 Motor

KV: 1600KV / 2500KV

Weight(included wire): 20.2g

Dimension: φ25.2*16.3mm

Interphase Resistance: 0.32Ω / 0.1245Ω

Input Volts: 24V

Peak Current: 13.99A / 25.06A

Max Watt: 336W / 601W

Mounting Holes: 12*12 φ2mm

Rotor Specifications:  Unibell

Shaft Diameter: 1.5mm

Shaft Protruding Length: 4mm

Lead: 160mm/22AWG

Magnet: N52H Curved

Configuration: 12N14P

Bearing Type: NSK

Bearing Specification: φ8*φ3*4

Winding: Single Strand copper winding

Packing List

1x XING2 1806 Brushless Motor 1.5mm Shaft (KV is optional)

6x M2*8mm screws
